VisualizingtheWirelessNetwork

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page660

D‐LinkUWSUserManual

LegendMenu

TheitemsintheLegendmenucontaininformationabouttheiconsandcolorsthatappearonthegraph.

TheImagesmenuitemshowstheiconsthatrepresenttheWLANcomponentsonthegraph.

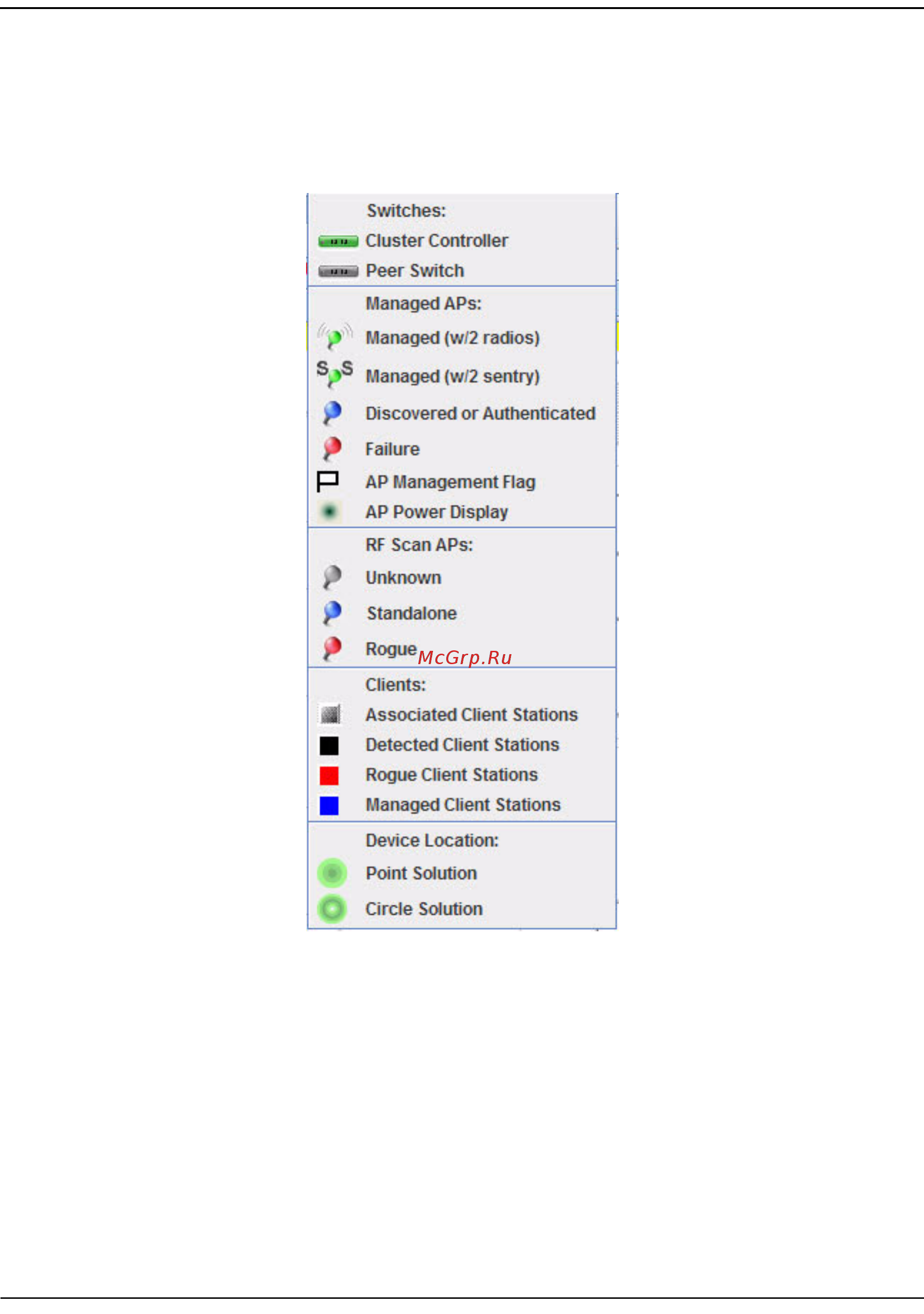

Figure430:Legend

Asthelegendshows,theManagedAPiconcanbeblue,green,orred,dependingonthest

atusoftheAP:

•Blue:TheAPhasbeendiscoveredandbytheswitch,butitisinatransitionalstate.TheAPcouldbe

waitingtobeauthenticated,orithasbeenvalidatedandauthenticatedbutnotconfigured.

• Green:TheAPprofileconfigurationhasbeenappliedtotheAP,anditisoper

atinginmanagedmode.

•Red:TheswitchhaslostcontactwiththeAP,theAPisbeingreset,ortheAPhasexperiencedan

authenticationfailure.
