ConfiguringIPAccessControlLists

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page358

D‐LinkUWSUserManual

AddingaNewRuletoanIP‐basedACL

1. OpentheIPACLRuleConfigurationpage.

2. SelectthedesiredACLfromtheIPACLmenu.

3. SpecifyCreateRuleforRuleIDandenteranewIDnumber.

4. Definetheremainingfieldsasneeded.

5. ClickSubmit.

ThenewruleisassignedtothespecifiedIP‐basedACL.

DeletingaRulefromanIP‐basedACL

1. OpentheIPACLRuleConfigurationpage.

2. SelectthedesiredACLfromtheIPACLmenu.

3. SelecttheruletodeletefromtheRulefield.

4. ClickDelete.

ThenewruleisassignedtothespecifiedIP‐basedACL.

5. ClickRefreshtoupdatethepagewiththemostcurrentinformation.

IPACLSummary

UsetheIPACLSummarypagetoviewasummaryoftheIPACLsthathavebeenconfiguredontheswitch.To

accessthepage,clickLAN >Monitoring>AccessControlLists>IPAccessControlLists>Summary.

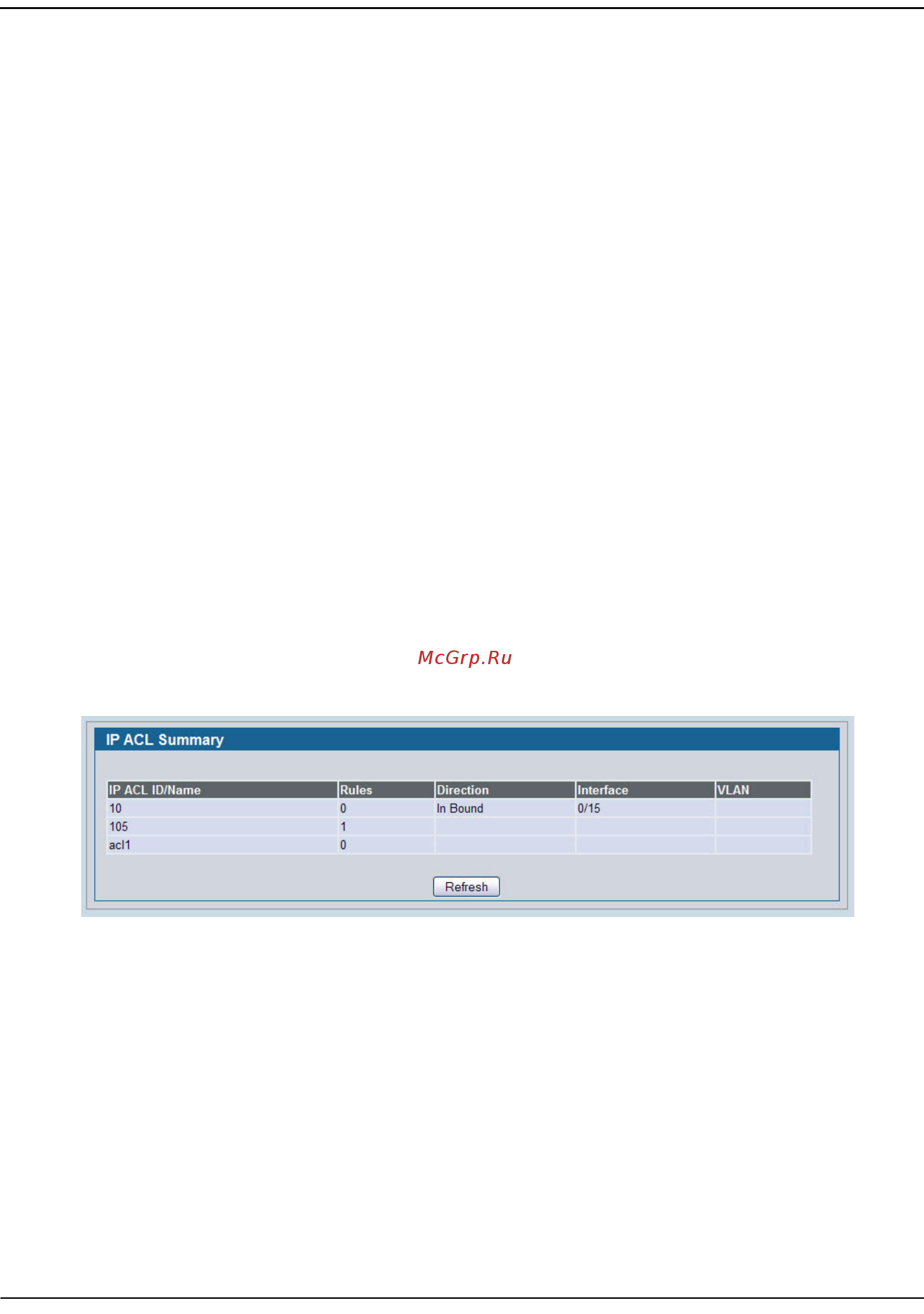

Figure243:IPACLSummary
