MonitoringStatusandStatistics

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page482

D‐LinkUWSUserManual

CommandButtons

Thepageincludesthefollowingbuttons:

• DeleteAll—ClearsallAPsfromtheRFscanlist.ThelistrepopulatesastheAPsarediscovered.

• Manage—ConfiguresaRogueAPtobemanagedbytheswitchthenexttimeitisdiscovered.Theswitch

addstheselectedAPtotheValidAPda

tabaseasaManagedAPandassignsitthedefaultAPprofile.Then,

youcanusetheswitchtoconfiguretheAPsettings.IfyouuseaRADIUSserverforAPvalidation,youmust

addtheMACaddressoftheAPtotheAPdatabaseontheRADIUSserver.

• Acknowledge—Clearthero

guestatusoftheselectedAPintheRFScandatabase.

• AcknowledgeAllRogues—AcknowledgesallAPswithaRoguestatus.Thestatusofanacknowledged

rogueisreturnedtothestatusithadwhenitwasfirstdetected.IfthedetectedAPfailsanyofthetests

thatclassifyitasath

reat,itwillbelistedasaRogueagain.

• Refresh—Updatesthepagewiththelatestinformation.

ViewingDetai l sAboutanAPDetectedintheRFScan

AfteryouclicktheMACaddressofanAPtoviewdetails,thedetailedAccessPointRFScanStatuspageforthe

APappears.

ThedetailedstatusforaccesspointsdetectedduringtheRFscanshowsinformationaboutanindividualAP

detectedthroughtheRFscan.ToviewinformationaboutanotherAPdet

ectedthroughtheRFScan,returnto

themainRogue/RFScanpageandclicktheMACaddressoftheAPwiththeinformationtoview.

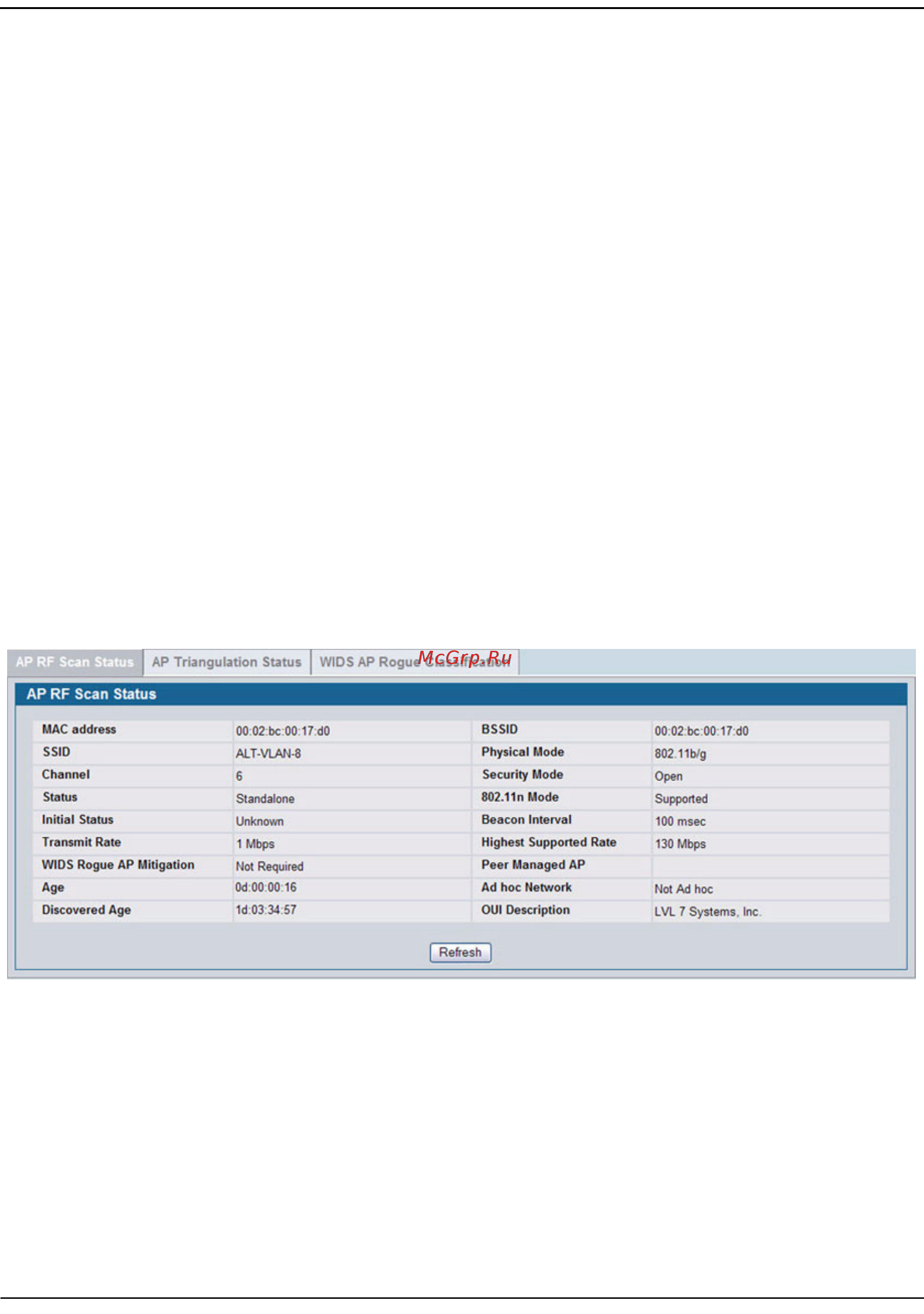

Figure320:RFScanAPDetails
