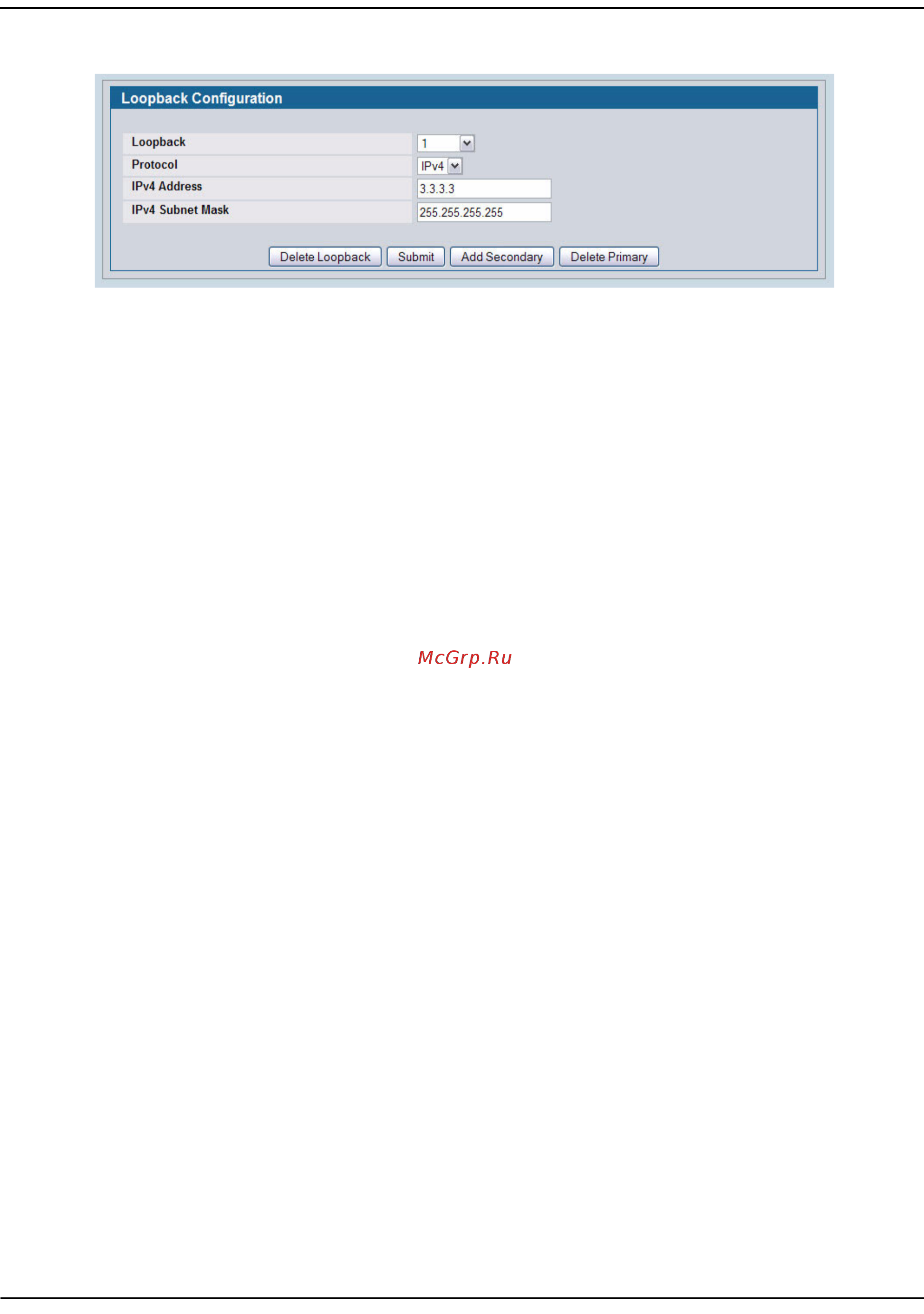

Figure193:LoopbacksConfiguration—IPv4Entry

4. IntheProtocolfield,selectIPv4

5. Enterdesiredvaluesintheremainingfields.

6. ClickSubmit.

Thenewloopbackissaved,andthewebpagereappearsshowingsecondaryaddressconfigurationfields.

Foranexampleofthefieldsonthispage,seeFigure192.

7. Optionally,clicktheAddSec

ondaryfieldtoaddasecondaryIPaddressandcompletetheSecondary

Address,SecondaryIPAddress,andSecondarySubnetMaskfields.

8. ClickSubmit.

RemovingaLoopback

1. OpentheLoopbackConfigurationpage.

2. SpecifytheloopbacktoremoveintheLoopbackmenu.

3. ClickDeleteLoopback.

Theloopbackisdeleted,andthedeviceisupdated.

RemovingaSecondaryAddress

1. OpentheLoopbackConfigurationpage.

2. Specifytheloopbacktobeaffected.

3. Specifythesecondaryaddresstoberemoved.

4. ClickDeleteSelectedSecondary.

Thesecondaryaddressisdeleted,andthedeviceisupdated.
