LLDP‐MEDRemoteDeviceInformation

ThispagedisplaysinformationonLLDP‐MEDinformationreceivedfromremoteclientsontheselectedlocal

interface.Todisplaythispage,clickLAN>Monitoring>LLDPStatus>LLDP‐MED>RemoteDeviceInformation

inthenavigationtree.

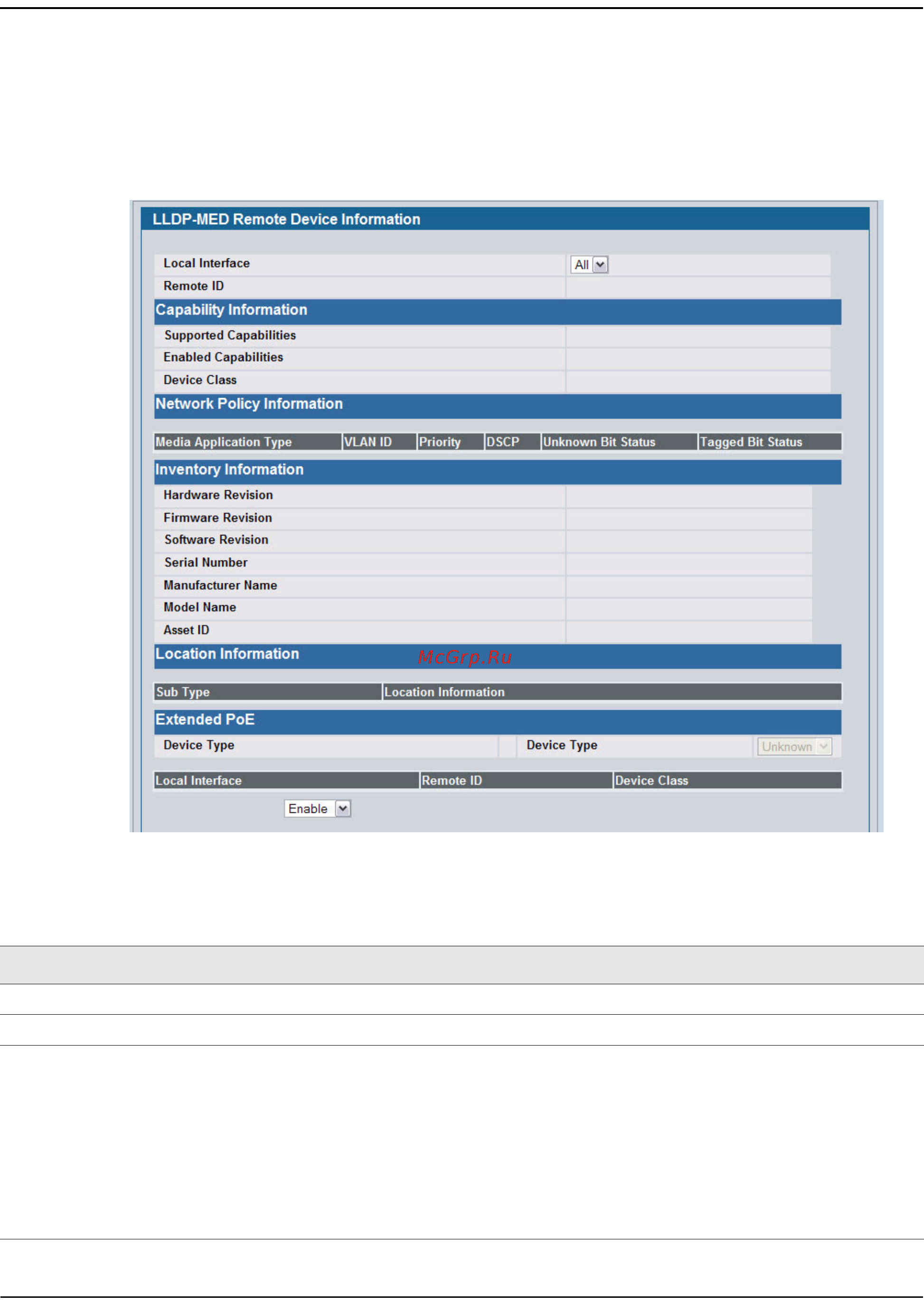

Figure171:LLDPRemoteDeviceInformation

Table152:LLDP‐MEDRemoteDeviceInformationFi

elds

Field Description

LocalInterface SpecifiesthelistofalltheportsonwhichLLDP‐MEDisenabled.

RemoteID Specifiestheremoteclientidentifierassignedtotheremotesystem.

CapabilityInformation SpecifiesthesupportedandenabledcapabilitiesthatwerereceivedinMED

TLVonthisport:

• SupportedCapabilities:Specifiessupportedcapabilitiesthatwere

receivedinMEDTL

Vonthisport.

• EnabledCapabilities:Specifiesenabledcapabilitiesthatwerereceivedin

MEDTLVonthisport.

• DeviceClass:Specifiesdeviceclassasadvertisedbythedeviceremotely

connectedtotheport.
