CreatingMACFilters

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page198

D‐LinkUWSUserManual

•ClickSubmittoupdatetheswitchwiththevaluesonthescreen.Ifyouwanttheswitchtoretainthenew

valuesacrossapowercycle,youmustperformasave.

•ClickDeletetoremovethecurrentlyselectedfilter.

•ClickDeleteAlltoremoveallconfiguredfilters.

AddingMACFilters

1. ToaddaMACfilter,selectCreateFilterfromtheMACFilterdrop‐downmenu.

2. EnteravalidMACaddressandselectaVLANIDfromthedrop‐downmenu.

TheVLANIDdrop‐downmenuonlylistsVLANscurrentlyconfiguredonthesystem.

3. Selectoneormoreportstoincludeinthefi

lter.UseCTRL+clicktoselectmultipleports.

4. ClickSubmittoapplythechangestothesystem.

ModifyingMACFilters

Tochangetheportmask(s)foranexistingfilter,selecttheentryfromtheMACFilterfield,andthenclick(or

CTRL+click)theport(s)toincludeinthefilter.OnlythoseportsthatarehighlightedwhenyouclickSubmitare

includedinthefilter.

TochangetheMACaddressorVLANas

sociatedwithafilter,youmustdeleteandre‐createthefilter.

DeletingMACFilters

Todeleteafilter,selectitfromtheMACFilterdrop‐downmenuandclickDelete.Todeleteallconfiguredfilters

fromtheforwardingdatabase,clickDeleteAll.

MACFilterSummary

UsetheMACFilterSummarypagetoassociateaMACaddresswithaVLANandoneormoresourceports.

ToaccesstheMACFilterSummarypage,clickLAN>Monitoring >Filters>MACFilterSummaryinthe

navigationtree.

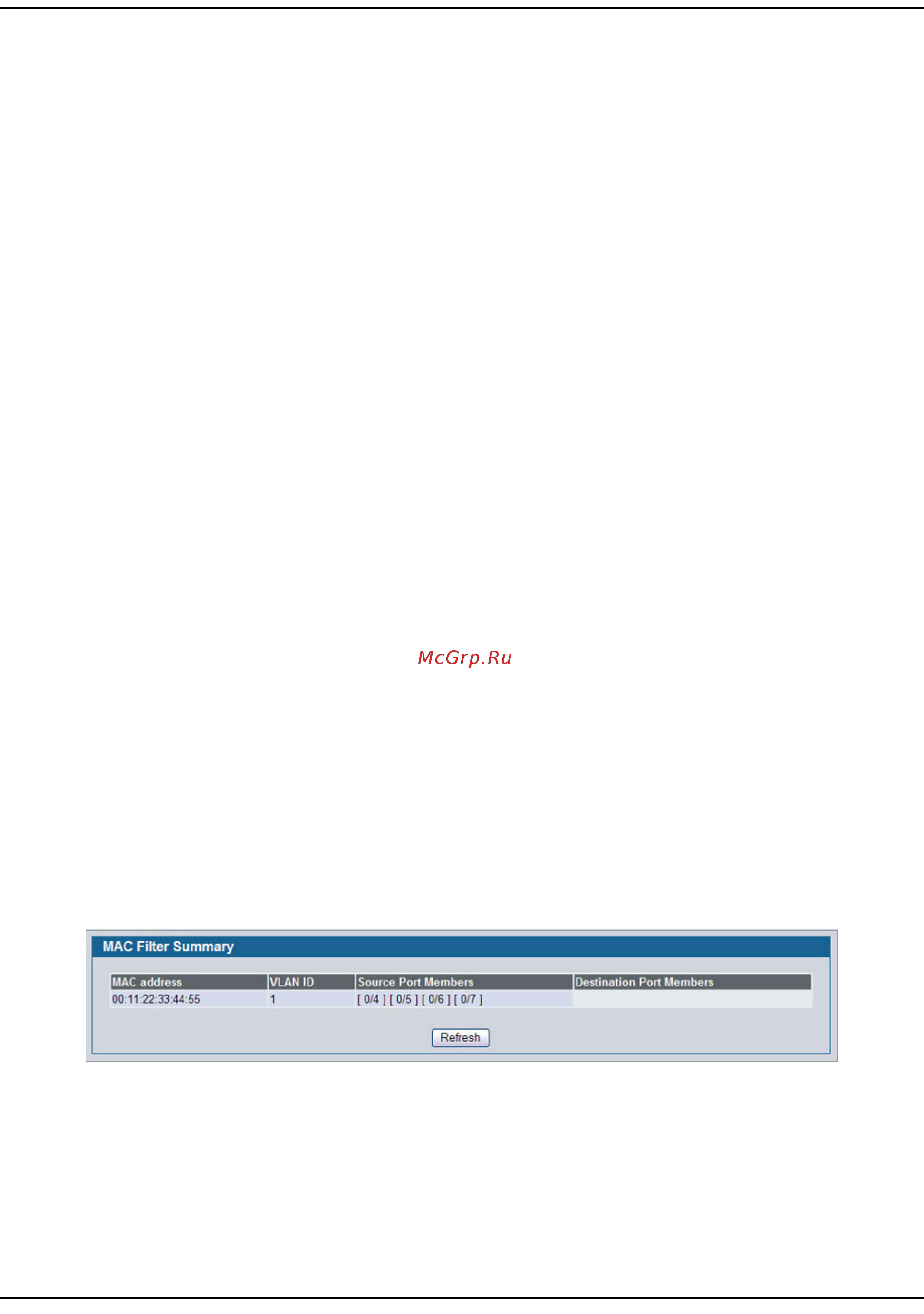

Figure114:MACFilterSummary
