ConfiguringtheRIPInterface

1. OpentheRIPInterfaceConfigurationpage.

2. Specifytheinterfaceforwhichdataistobeconfigured.

3. Enterdataintothefieldsasneeded.

4. TochangetheAuthenticationType,clickConfigureAuthenticationtoconfiguredifferentAuthentication

Types.

ThepagerefreshesanddisplaystheRIPInterfaceAuthenticationConfigurationpage.

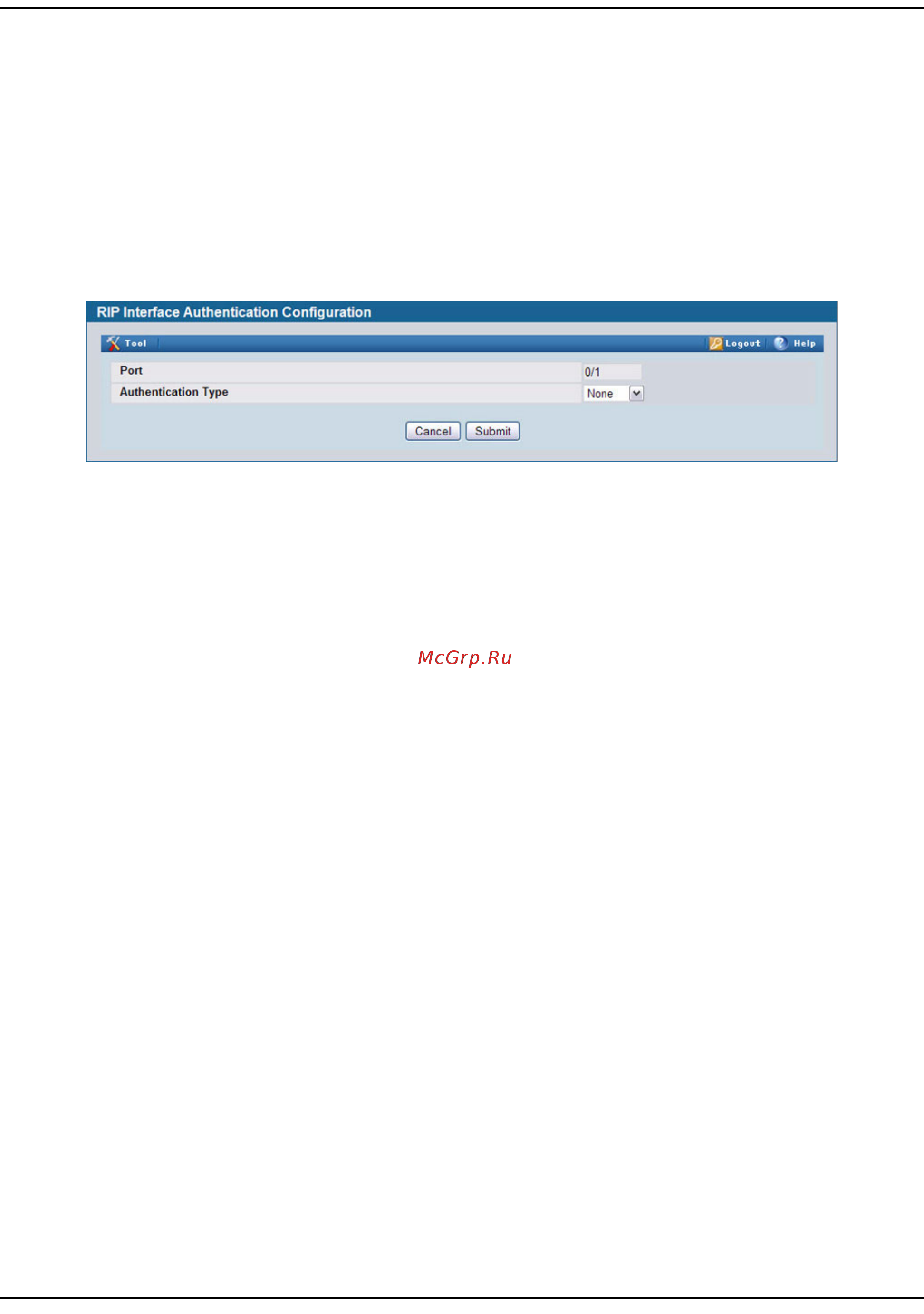

Figure197:RIPIn

terfaceAuthenticationConfiguration

5. Selectthetypeofauthenticationtouse.

IfyouselectSimpleorEncryptastheauthentication,thescreenrefreshes,andadditionalfieldsdisplay.

Entertherequiredinformationintothenewfields.

6. ClickSubmittoapplythechangestothesystemandreturntotheRIPInterfaceConfigurationpage.

7. Toca

nceltheauthenticationconfigurationandreturntotheRIPInterfaceConfigurationpage,clickCancel.
