MonitoringStatusandStatistics

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page518

D‐LinkUWSUserManual

RadioResourceMeasurementStatusInformation

TheRadioResourceMeasurement(RRM)featureenablestheWirelessSystemtoprovideinformationtothe

wirelessclientstohelpthemmakeroamingdecisions.TheRRMfeaturealsoenablestheWirelesssystemto

gatherinformationfromwirelessclients.

TheRRMfeatureimplementsasubsetoftheradioresourcemeasurementcapabilitiesdefinedbytheIEEE

2.11kstandard.

ViewingtheRRMChannelLoadConfiguration

TheRRMChannelLoadConfigurationpageallowsyoutoaskaclienttomeasureutilizationonaspecified

channelforaspecifiedduration.Thepagedisplaystheresultsofthecurrentlyloadedchannel.

TheChannelLoadfeatureisintendedfornetworkdebugging.TheWirelessSystemdoesnottakeanyautomatic

actionsba

sedonthereportedchannelutilization.

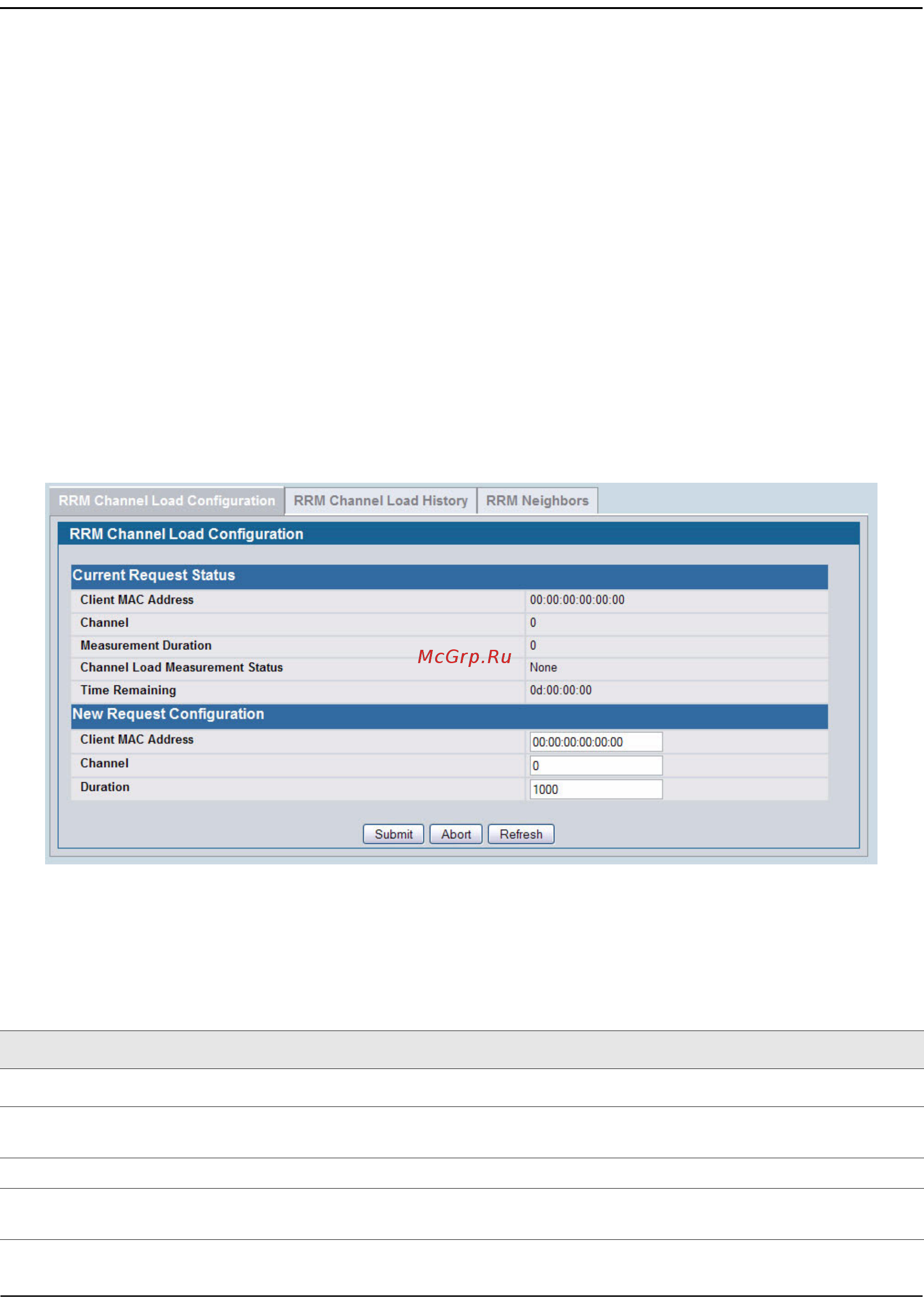

Figure349:RRMChannelLoadConfiguration

ThefollowingtabledescribesthefieldsontheRRMChannelLoadConfigurationpage.

Table315:RRMChannelLoadConfiguration

Field Description

CurrentRequestStatus

ClientMACAddress ShowstheMACAddressoftheclientwiththechannelloadcurrentlybeing

measured.

Channel Showsthechanneltheclientusestomeasuretheload.

MeasurementDuration Numberoftimeunits(TUs)forwhichtomeasurethechannel.EachTUisequalto

1024µs.
