Configuring802.1XNetworkAccessControl

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page672

D‐LinkUWSUserManual

7. ClickSubmittoapplythechangestothesystem.

8. ConfiguretheRADIUSaccountingserverinformation.

a. GototheLAN>Security>RADIUS>AccountingServerpage.

b. SelectAddfromAccountingServerHostAddressfield.

c. Enter10.10.10.10intheAccountingServerHostAddressfield.

d. ClickSubmit.

e. intheSecretfield,entersecretandselecttheApplyoptio

f. ClickSubmit.

9. ToenabletheRADIUSaccountingmode,gototheLAN>Security>RADIUS>RADIUSConfigurationpage,

selectEnablefromtheAccountingModemenu,andthenclickSubmit.

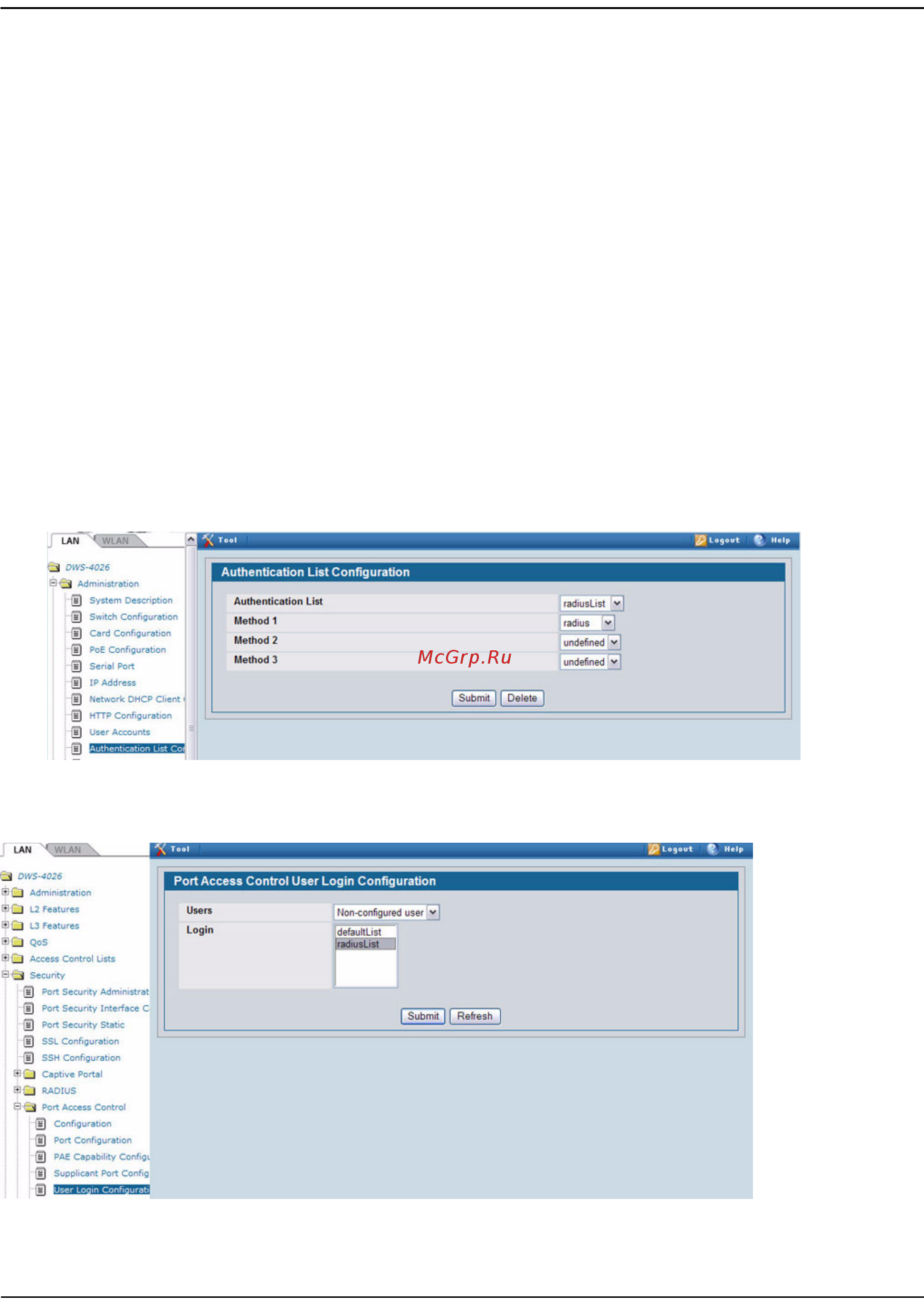

10. Createanauthenticationlist.

a. GototheLAN>Administration>AuthenticationListConfigurationpage.

b. Enterr

adiusListintheAuthenticationListNamefield.

c. ClickSubmit.

d. SelectRADIUSfromtheMethod1menu,andthenclickSubmit.

11. TosetradiusListasthedefaultloginlistforusersthatarenotconfiguredonthesystem,gototheLAN>

Security>PortAccessControl>Loginpage,se

lectradiusListfromtheLoginfield,andclickSubmit.

12. ToenableIEEE802.1Xauthenticationontheswitch,gototheLAN>Security>PortAccessControl>
