ConfiguringVLANs

D-Link UnifiedWiredandWirelessAccessSystem

November2011 Page664

D‐LinkUWSUserManual

taggedfromportsthataremembersofVLAN2.

9. ClickSubmit.

10. SelectVLAN3fromtheVLANIDandNameList.

11. SelecttheParticipateoptionintheVLANfield.

12. Forports0/2,0/3and0/4,selectIncludefromtheParticipationmenutospecifythattheseportsare

membersofVLAN3.

. ClickSubmit.

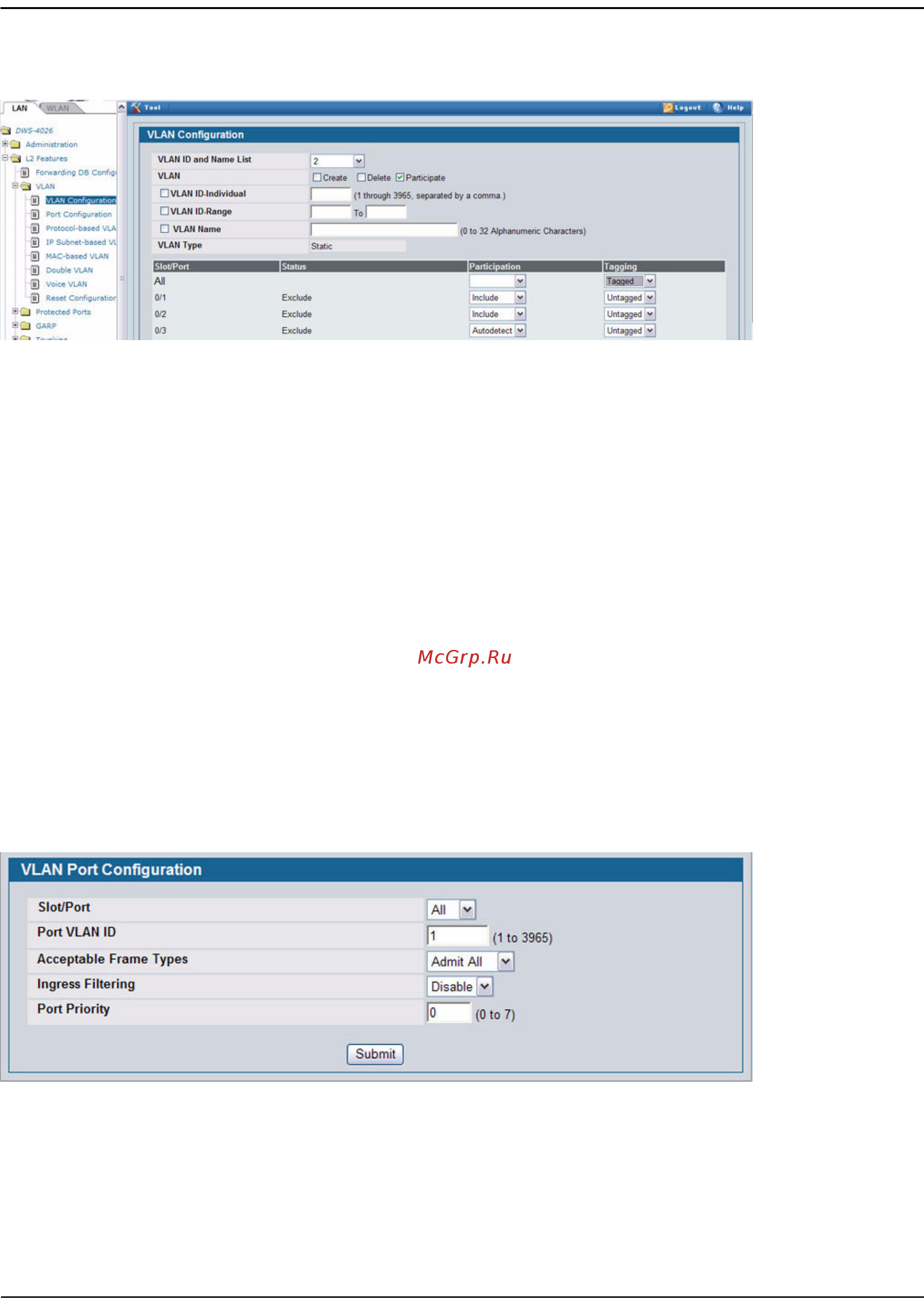

14. GototheLAN>L2Features>VLAN>PortConfigurationpage.

15. FromtheSlot/Portmenu,select0/1.

16. IntheAcceptableFrameTypesfield,selectVLANOnlytospecifythatuntaggedframeswillberejectedon

receipt.

17. ClickSubmit.

18. FromtheSlot/Portmenu,select0/2.

19. InthePo

rtVLANIDfield,enter3toassignVLAN3asthedefaultVLANfortheport.

20. IntheAcceptableFrameTypesfield,selectVLANOnlytospecifythatuntaggedframeswillberejectedon

receipt.

21. ClickSubmit.
