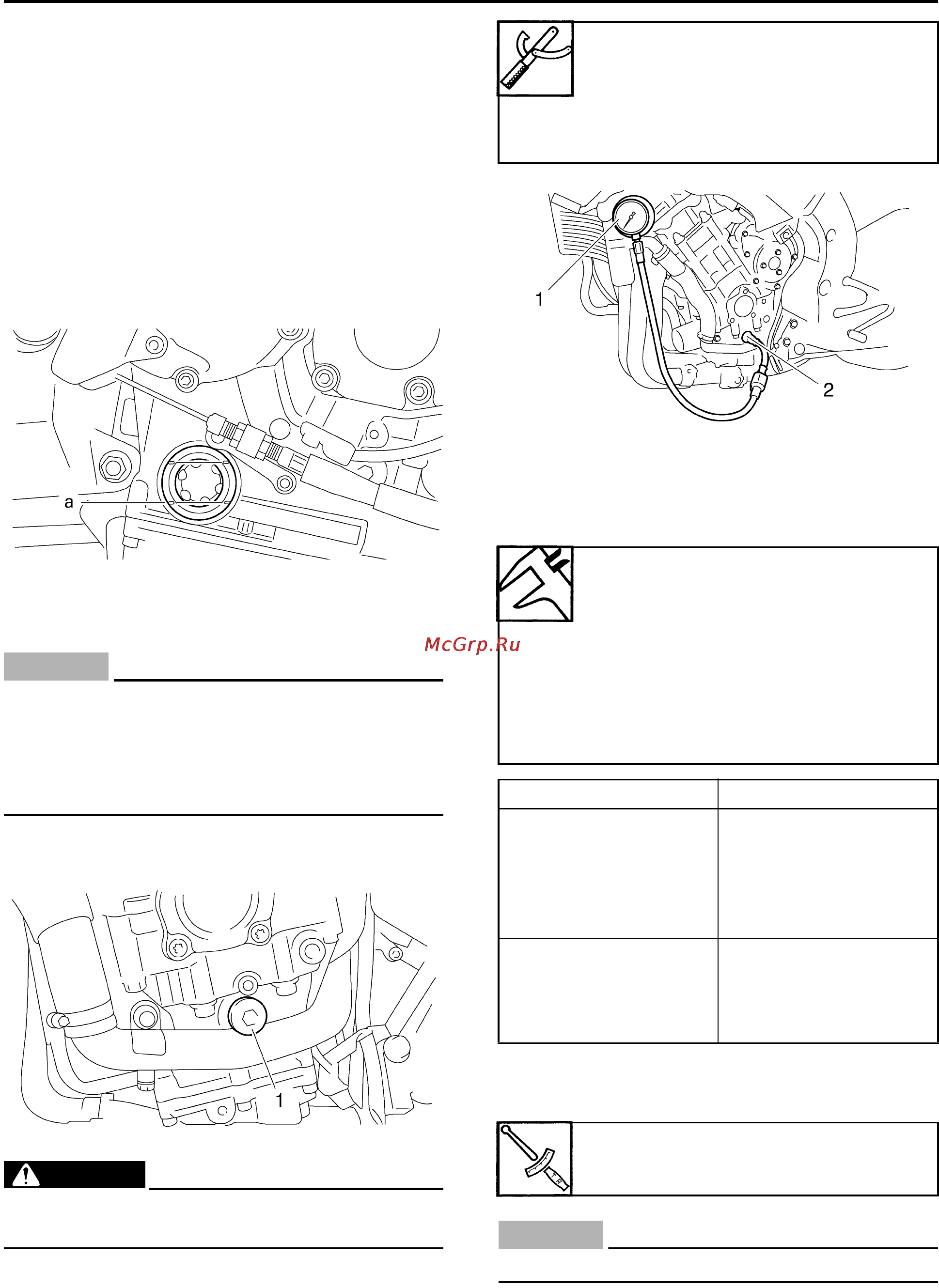

ENGINE
3-13
13. Check:
• Engine oil level
Refer to "CHECKING THE ENGINE OIL
LEVEL" on page 3-11.
EAS20820
MEASURING THE ENGINE OIL PRESSURE
1. Check:
• Engine oil level
Below the minimum level mark ”a” → Add
the recommended engine oil to the proper
level.
2. Start the engine, warm it up for several
minutes, and then turn it off.
CAUTION:
ECA13410
When the engine is cold, the engine oil will
have a higher viscosity, causing the engine
oil pressure to increase. Therefore, be sure
to measure the engine oil pressure after
warming up the engine.
3. Remove:
• Main gallery bolt “1”
WARNING
EWA12980
The engine, muffler and engine oil are
extremely hot.
4. Install:
• Oil pressure gauge “1”
• Adapter “2”
5. Measure:
• Engine oil pressure
(at the following conditions)
Out of specification → Adjust.
6. Install:
• Main gallery bolt
CAUTION:
ECA4C81014
Be careful to tighten too much.
Oil pressure gauge set
90890-03153
YU-03153
Oil pressure adapter H
90890-03139
Engine oil pressure
230 kPa (2.3 psi) (32.71 kgf/
cm²)
Engine speed
Approx 5000r/min
Oil temperature
80.0–90.0 °C (176.00–194.00
°F)
Engine oil pressure Possible causes
Below specification • Faulty oil pump
• Clogged oil filter
• Leaking oil passage
• Broken or damaged
oil seal
Above specification • Leaking oil passage
• Faulty oil filter
• Oil viscosity too
high
Main gallery bolt
8 Nm (0.8 m·kg, 5.8 ft·lb)
