HANDLEBARS
4-48
EAS4C81004

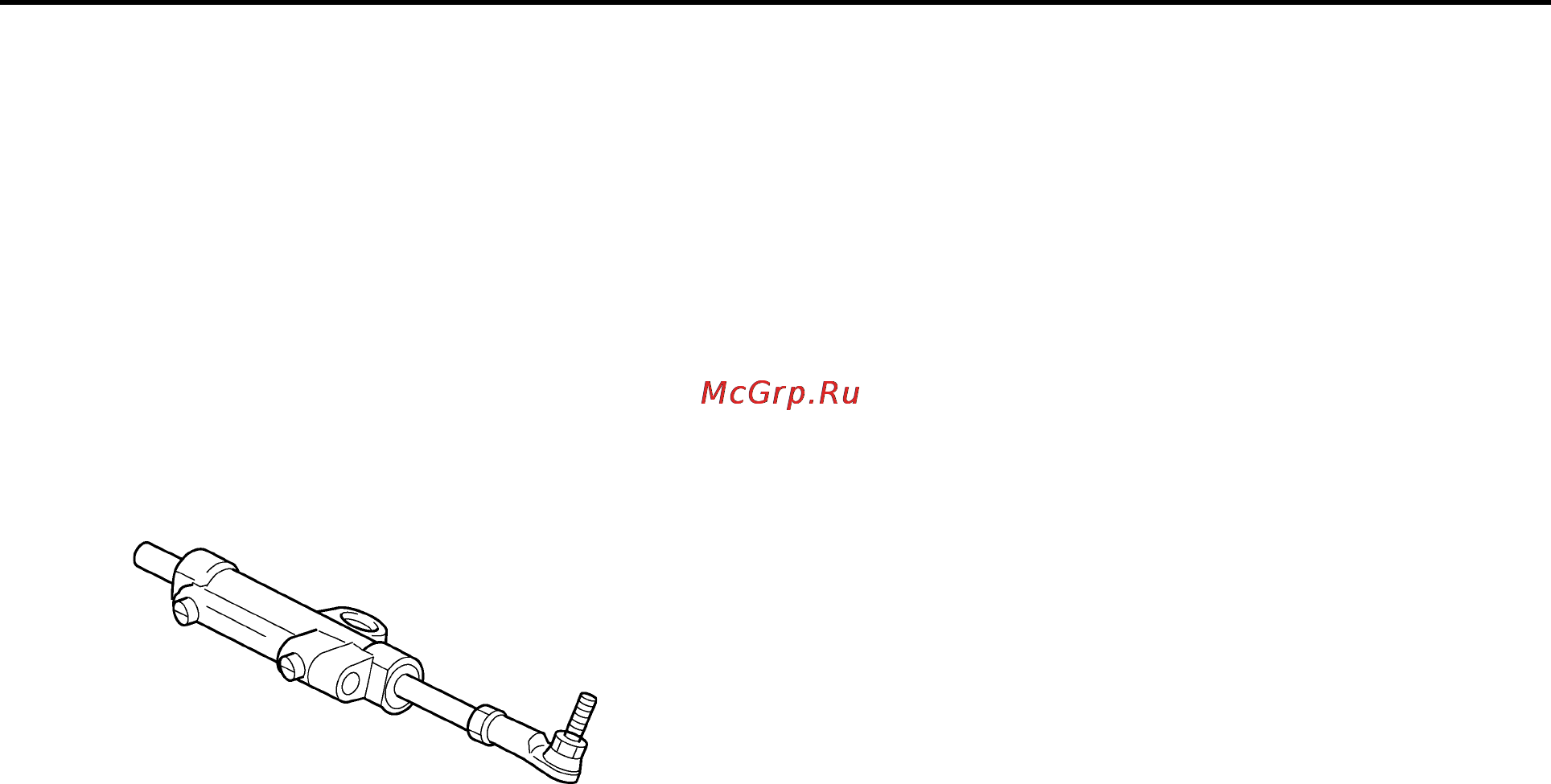

CHECKING THE STEERING DAMPER
1. Check:
• Steering damper body
Damage/oil leaks → Replace.
(It replace with the assembly.)
• Steering damper rod
Bends/scratch → Replace.
(It replace with the assembly.)
• Bearing
Damage/pitting → Replace.
(It replace with the assembly.)
