GENERAL CHASSIS
4-3

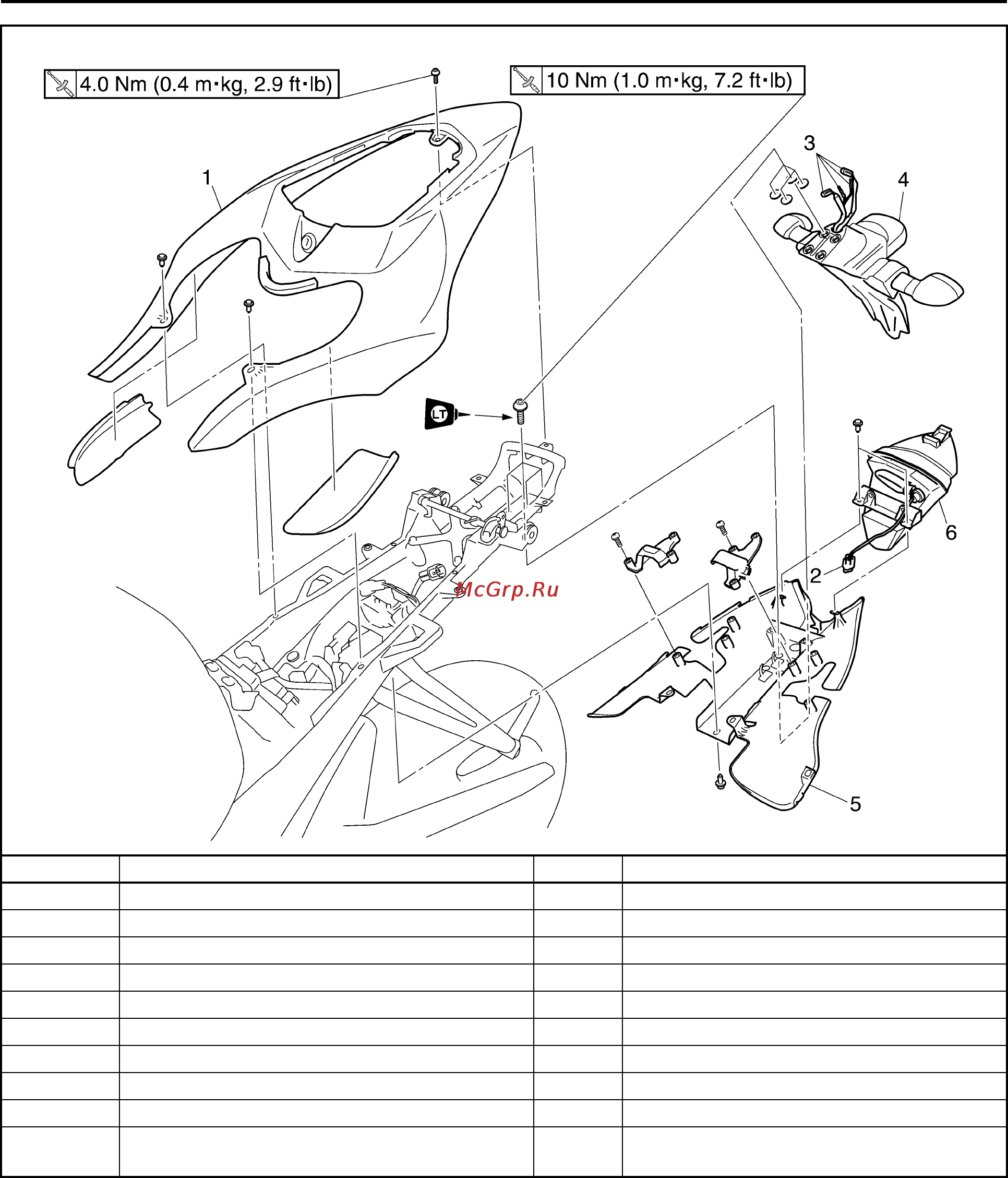

Removing the rear fender
Order Job/Parts to remove Q’ty Remarks
Rider seat Refer to "GENERAL CHASSIS" on page 4-1.
Passenger seat Refer to "GENERAL CHASSIS" on page 4-1.
Muffler Refer to "ENGINE REMOVAL" on page 5-1.
1 Upper tail cover 1
2 Tail/brake light lead coupler 1 Disconnect.
3 Turn signal light/licence plate light lead coupler 4 Disconnect.
4 Mud guard assembly 1
5Lower tail cover 1
6 Tail/brake light 1
For installation, reverse the removal proce-
dure.
