TRANSMISSION
5-92

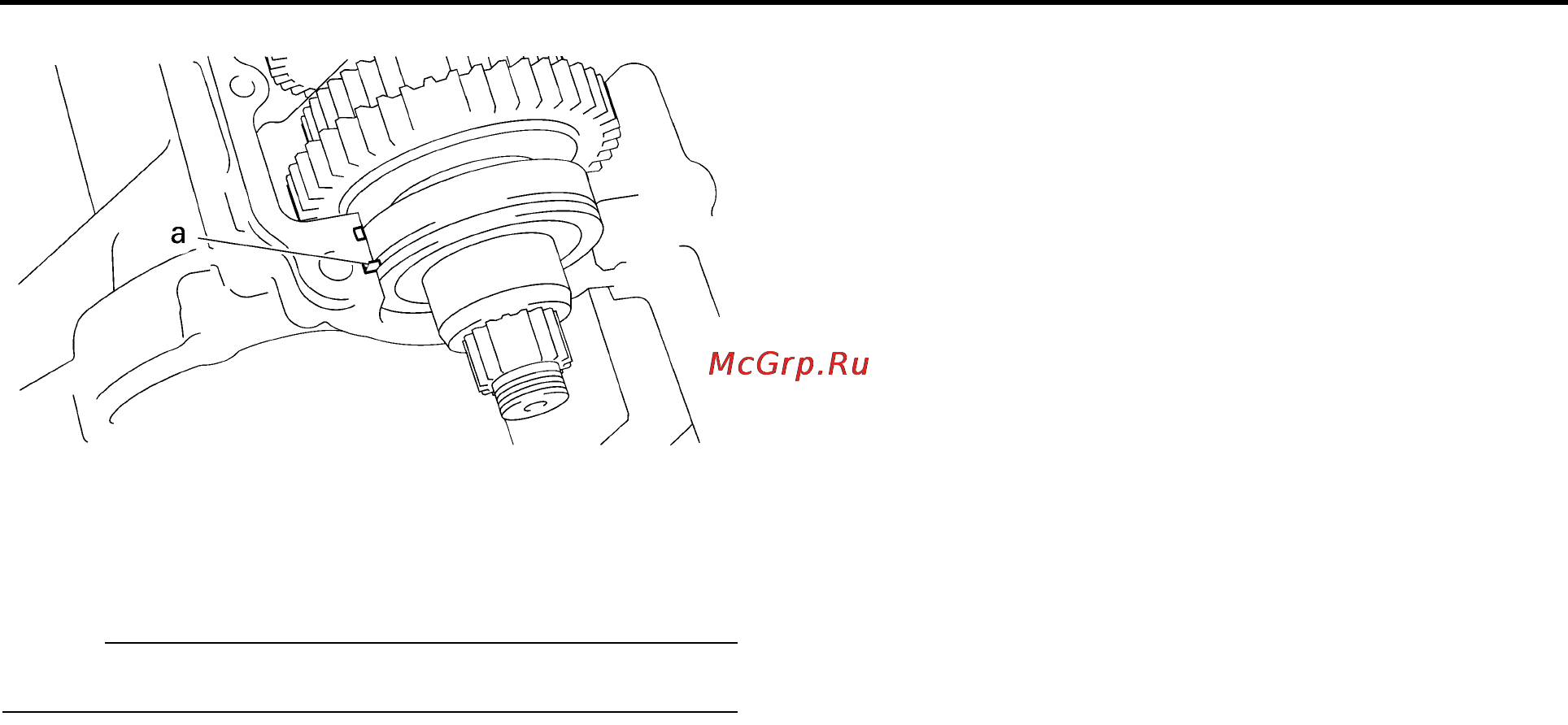

4. Check:
•Transmission
Rough movement → Repair.
NOTE:
Oil each gear, shaft, and bearing thoroughly.
