ELECTRIC STARTER
5-39
EAS24780
ELECTRIC STARTER

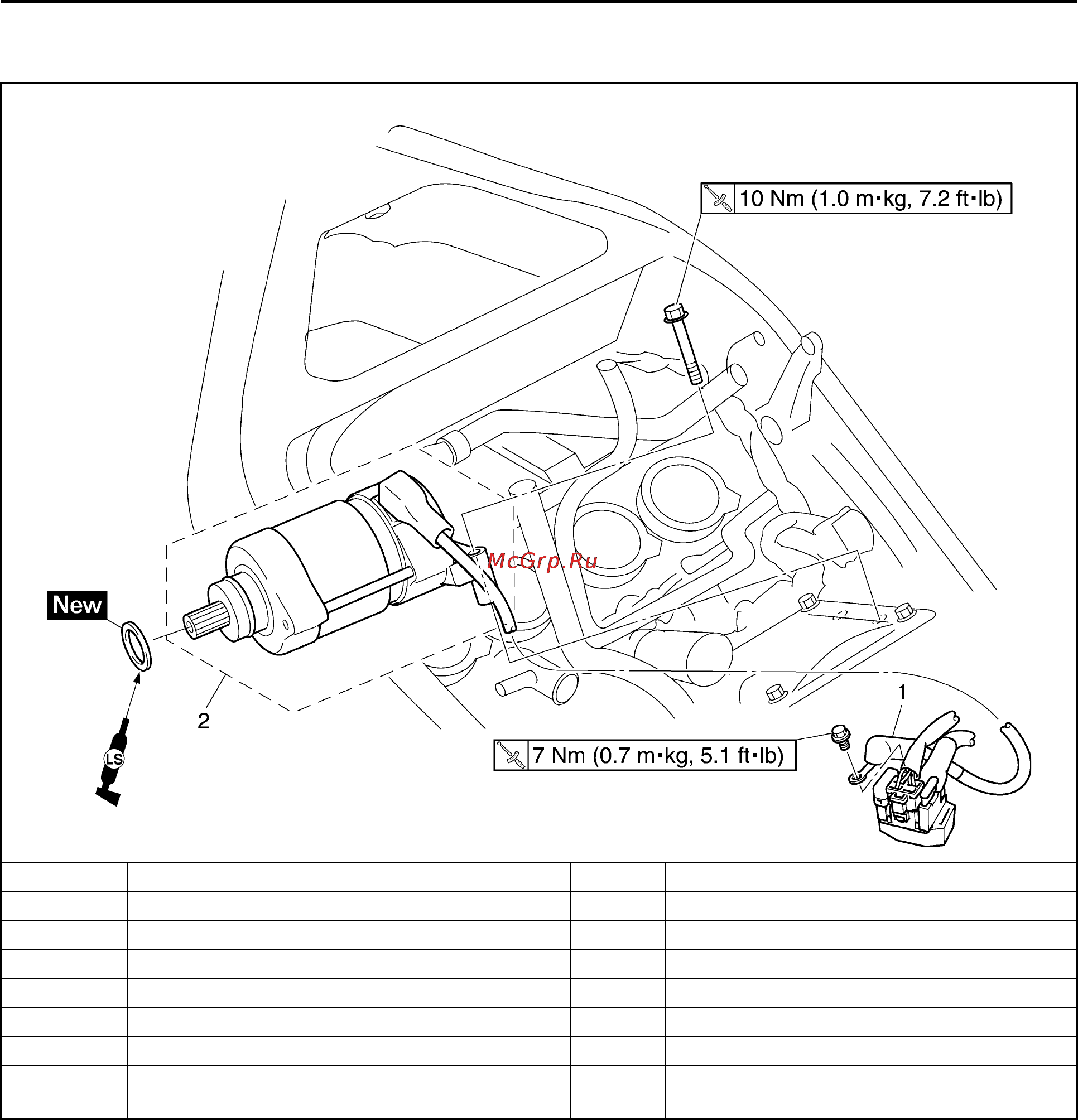

Removing the starter motor
Order Job/Parts to remove Q’ty Remarks
Rider seat Refer to "GENERAL CHASSIS" on page 4-1.
Fuel tank Refer to "FUEL TANK" on page 7-1.
Air filter case Refer to "GENERAL CHASSIS" on page 4-1.
Throttle body Refer to "THROTTLE BODIES" on page 7-4.
1 Starter motor lead 1 Disconnect.
2 Starter motor 1
For installation, reverse the removal proce-
dure.
