STEERING HEAD
4-61
• Lower bearing
• Bearing races

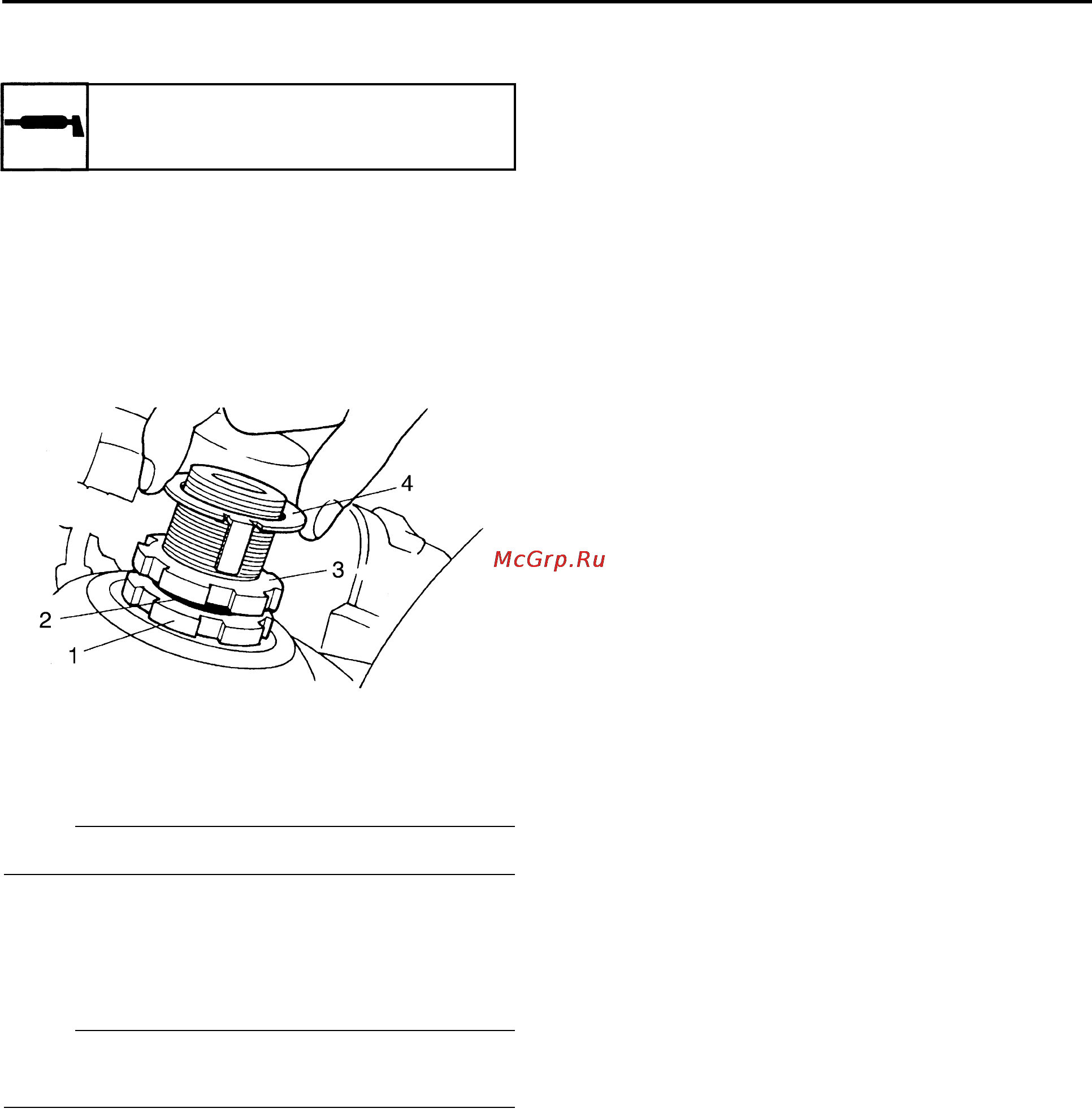

2. Install:
• Lower ring nut “1”
• Rubber washer “2”
• Upper ring nut “3”
• Lock washer “4”
Refer to "CHECKING AND ADJUSTING
THE STEERING HEAD" on page 3-28.
3. Install:
• Upper bracket
• Steering stem nut
NOTE:
Temporarily tighten the steering stem nut.
4. Install:
• Front fork legs
Refer to "INSTALLING THE FRONT FORK
LEGS" on page 4-57.
NOTE:
Temporarily tighten the upper and lower
bracket pinch bolts.
Recommended lubricant
Lithium-soap-based grease
