ELECTRICAL COMPONENTS
8-92
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

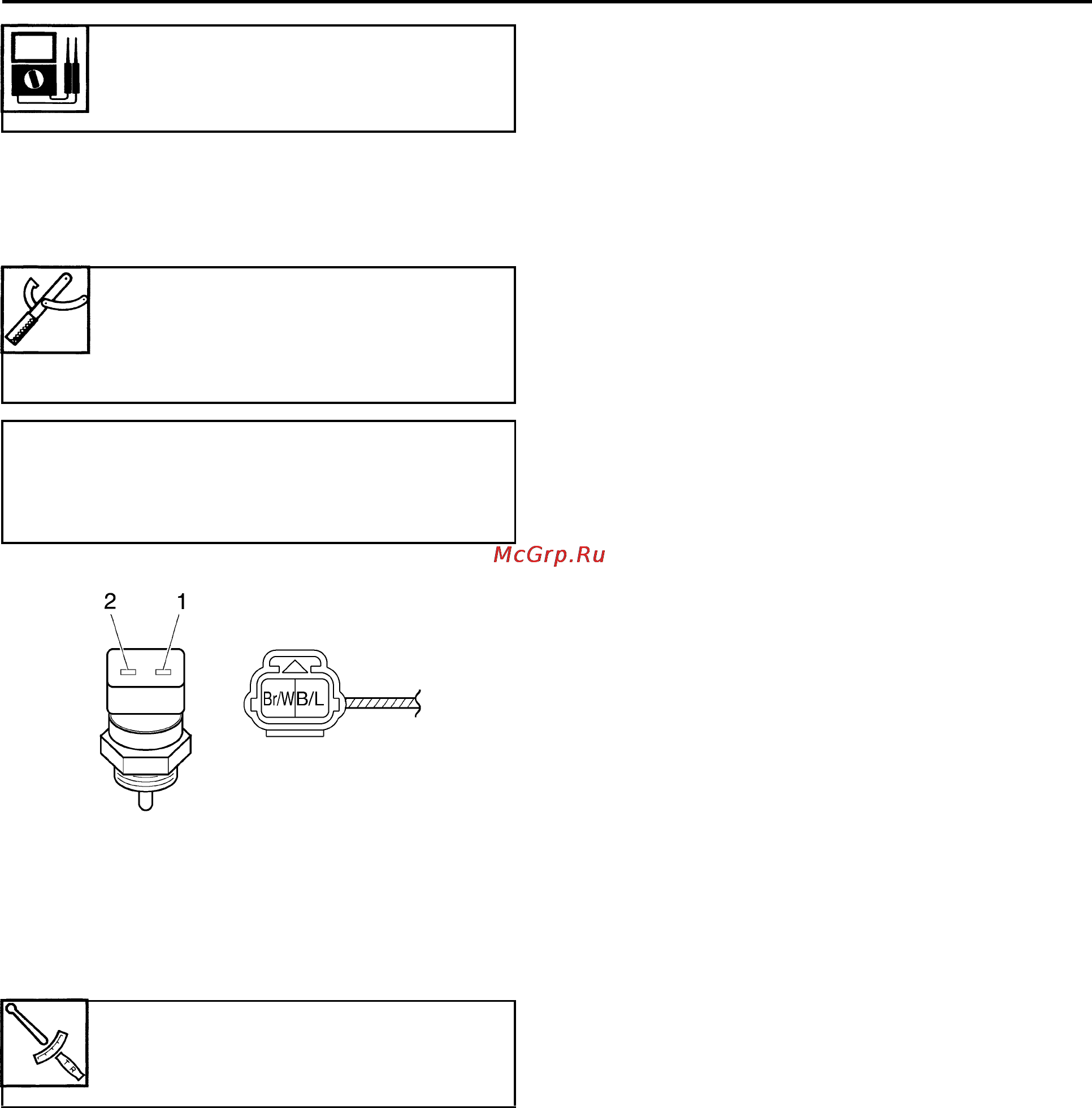

a. Connect the pocket tester (Ω × 100) to the
intake air temperature sensor terminal as
shown.
b. Measure the intake air temperature sensor
resistance.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
3. Install:
• Intake air temperature sensor
Intake air pressure sensor
resistance
2.21–2.69 kΩ at 20°C (68°F)
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe
Brown/White “1”
• Negative tester probe
Black/Blue “2”
Intake air temperature sensor
bolt
1.2 Nm (0.12 m·kg, 0.87 ft·lb)
