CAMSHAFTS
5-10

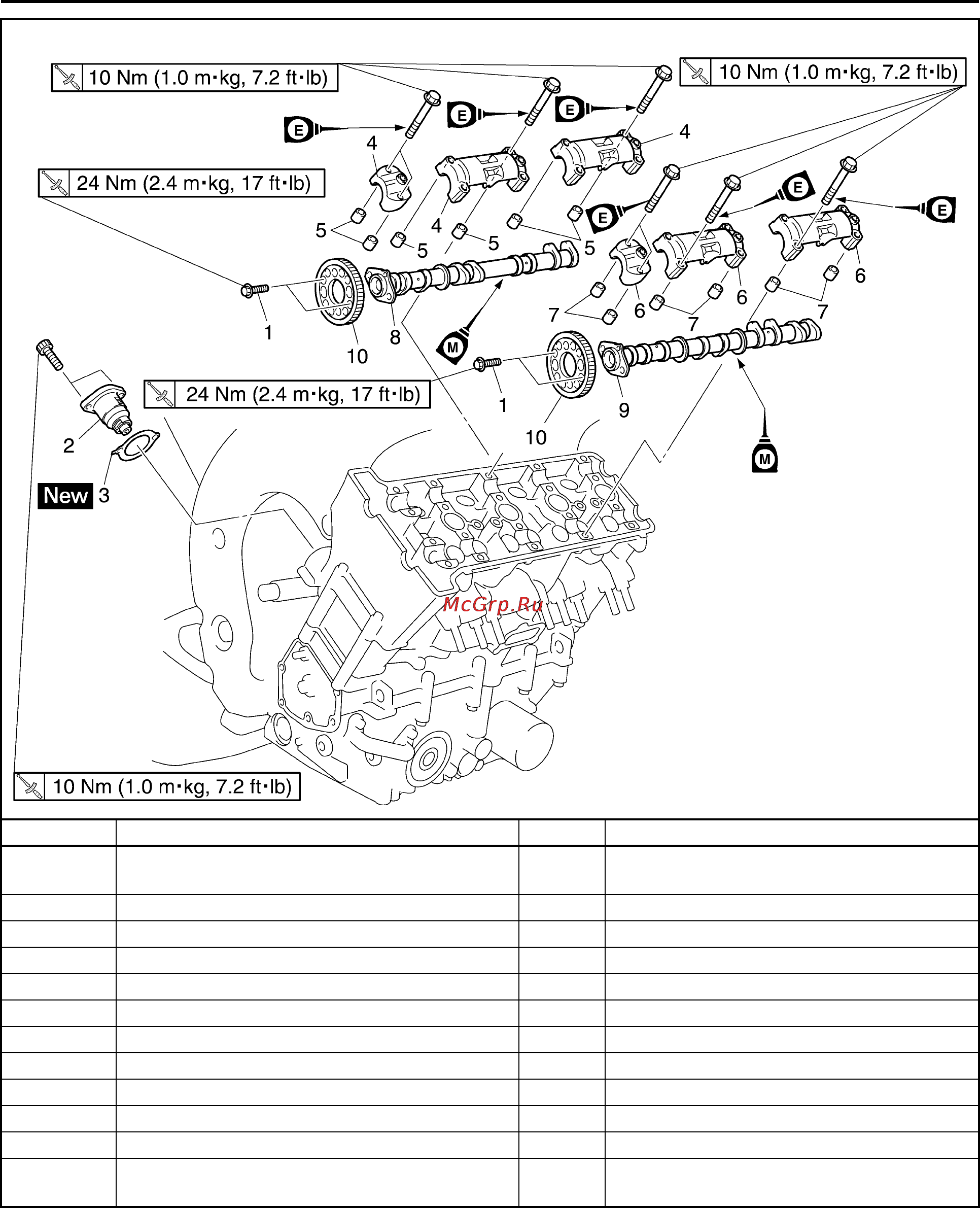

Removing the camshafts
Order Job/Parts to remove Q’ty Remarks
Pickup rotor cover
Refer to "CRANKSHAFT POSITION SEN-
SOR" on page 5-37.
1 Camshaft sprocket bolt 4 Loosen.
2 Timing chain tensioner 1
3 Timing chain tensioner gasket 1
4 Intake camshaft cap 3
5Dowel pin 6
6 Exhaust camshaft cap 3
7Dowel pin 6
8 Intake camshaft 1
9 Exhaust camshaft 1
10 Camshaft sprocket 2
For installation, reverse the removal proce-
dure.
