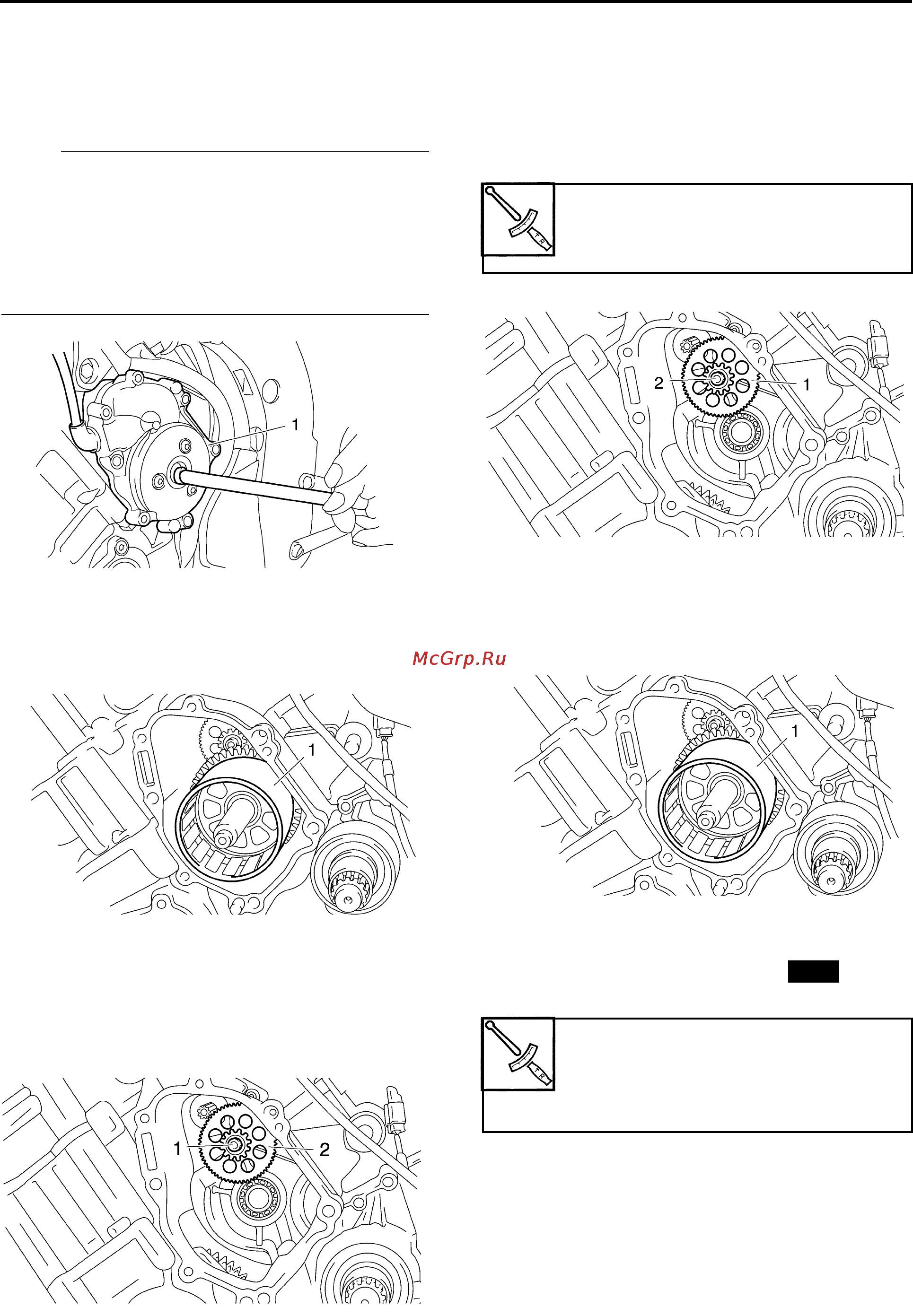

GENERATOR
5-32
EAS24490
REMOVING THE GENERATOR
1. Remove:
•Plug
• Generator rotor cover “1”
NOTE:
• While pushing generator rotor, remove the
generator rotor cover.
• Loosen each bolt 1/4 of a turn a time, in
stages and in a crisscross pattern.
• After all of the bolts are fully loosened,
remove them.
2. Remove:
• Generator rotor and starter clutch assem-
bly “1”
3. Remove:
• Idle gear shaft bolt “1”
• Idle shaft
• Idle gear “2”
EAS24500
INSTALLING THE GENERATOR
1. Install:
• Idle gear shaft
• Idle gear “1”
•Washer
• Idle gear shaft bolt “2”
2. Install
• Generator rotor and starter clutch assem-
bly “1”
3. Install:
• Generator rotor cover gasket
• Generator rotor cover “1”
Idle gear shaft bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
LOCTITE®
Generator rotor cover bolt (M6)
12 Nm (1.2 m·kg, 8.7 ft·lb)
Generator rotor cover bolt (M8)
22 Nm (2.2 m·kg, 16 ft·lb)
New
