GENERATOR

5-30

EAS24480

GENERATOR

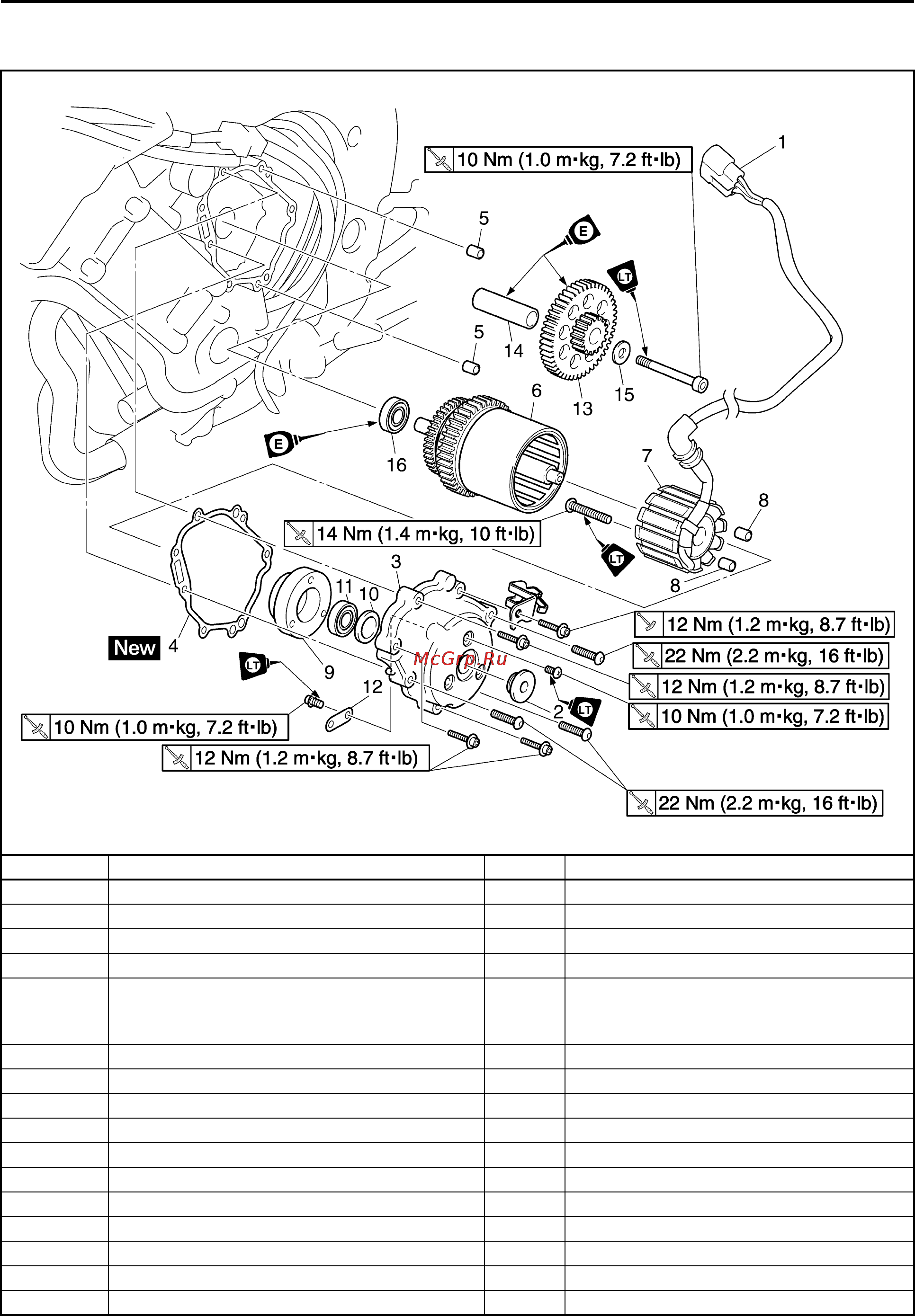

Removing the generator

Order Job/Parts to remove Q’ty Remarks

Rider seat Refer to "GENERAL CHASSIS" on page 4-1.

Passenger seat Refer to "GENERAL CHASSIS" on page 4-1.

Side cowlings Refer to "GENERAL CHASSIS" on page 4-1.

Lower cowlings Refer to "GENERAL CHASSIS" on page 4-1.

Engine oil

Drain.

Refer to "CHANGING THE ENGINE OIL" on

page 3-11.

1 Stator coil assembly coupler 1 Disconnect.

2Plug 1

3 Generator rotor cover 1

4Gasket 1

5Dowel pin 2

6 Generator rotor assembly 1

7 Stator coil assembly 1

8Dowel pin 2

9 Bearing housing 1

10 Collar 1

11 Bearing 1
