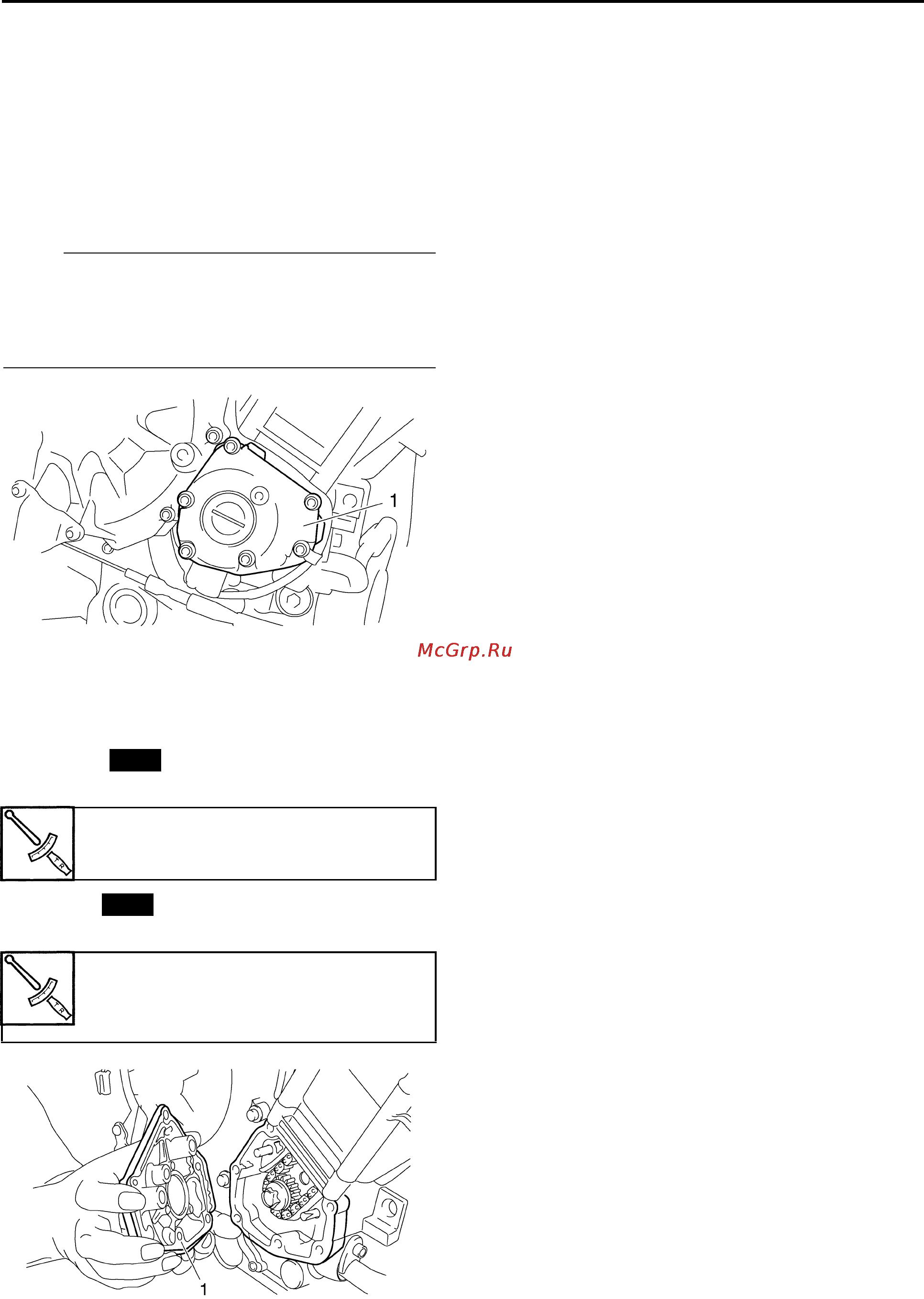

CRANKSHAFT POSITION SENSOR
5-38
EAS24530
REMOVING THE CRANKSHAFT POSITION
SENSOR
1. Disconnect:
• Crankshaft position sensor lead coupler
2. Remove:
• Crankshaft position sensor
•O-ring
• Pickup coil rotor cover “1”
NOTE:
Loosen each bolt 1/4 of a turn at a time, in
stages and in a crisscross pattern.
After all of the bolts are fully loosened, remove
them.
EAS24540
INSTALLING THE CRANKSHAFT POSITION
SENSOR
1. Install:
•Gasket
• Pickup rotor cover “1”
• O-ring
• Crankshaft position sensor
2. Connect
• Crankshaft position sensor lead coupler
Pickup rotor cover
12 Nm (1.2 m·kg, 8.7 ft·lb)
Crankshaft position sensor bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
LOCTITE®
New
New
