FRONT BRAKE
4-23

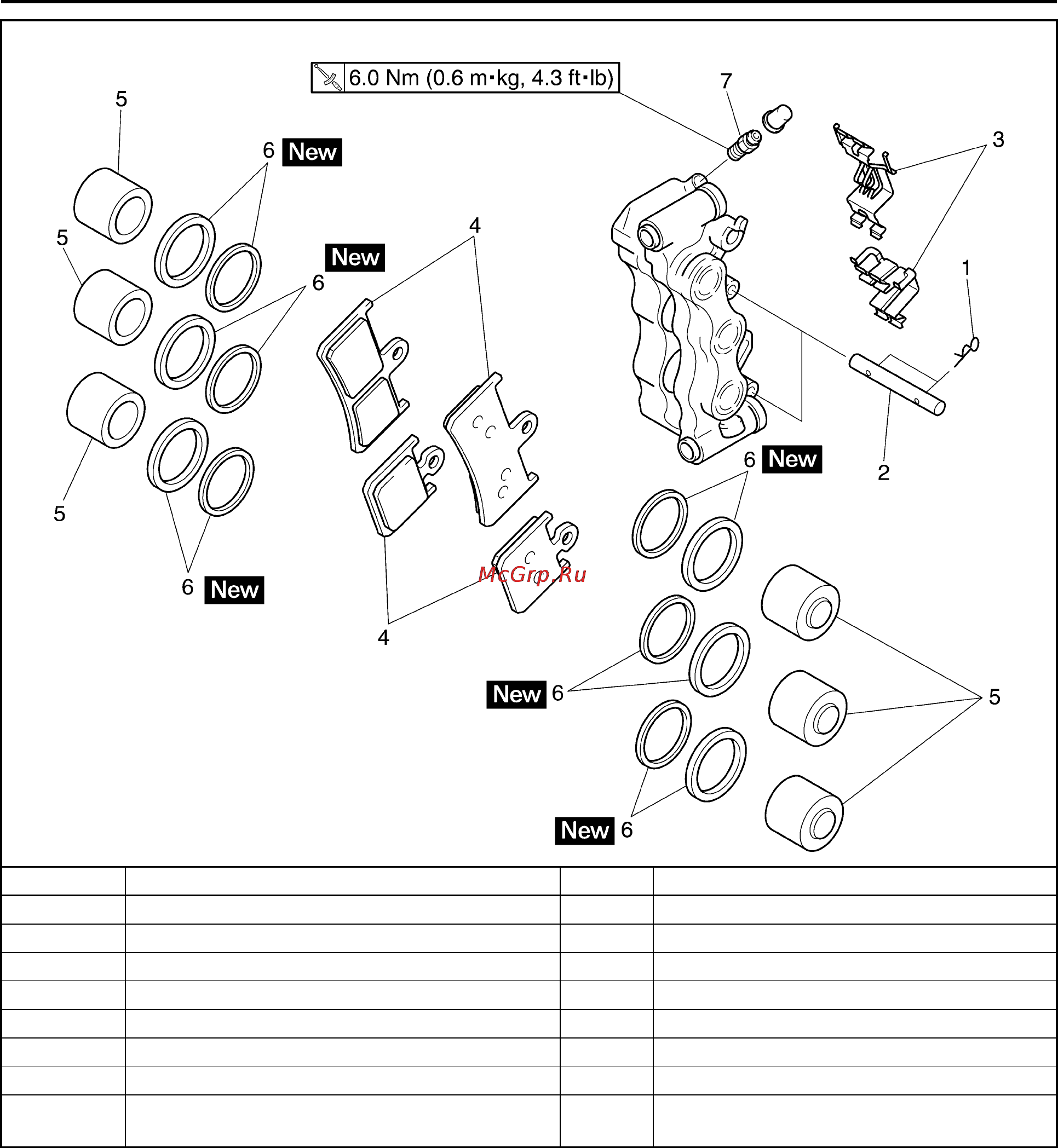

Disassembling the front brake calipers
Order Job/Parts to remove Q’ty Remarks
1 Brake pad clip 4
2 Brake pad pin 2
3 Brake pad spring 2
4 Brake pad 4
5 Brake caliper piston 6
6 Brake caliper piston seal 12
7 Bleed screw 1
For assembly, reverse the disassembly pro-
cedure.
