CHAIN DRIVE
4-72
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

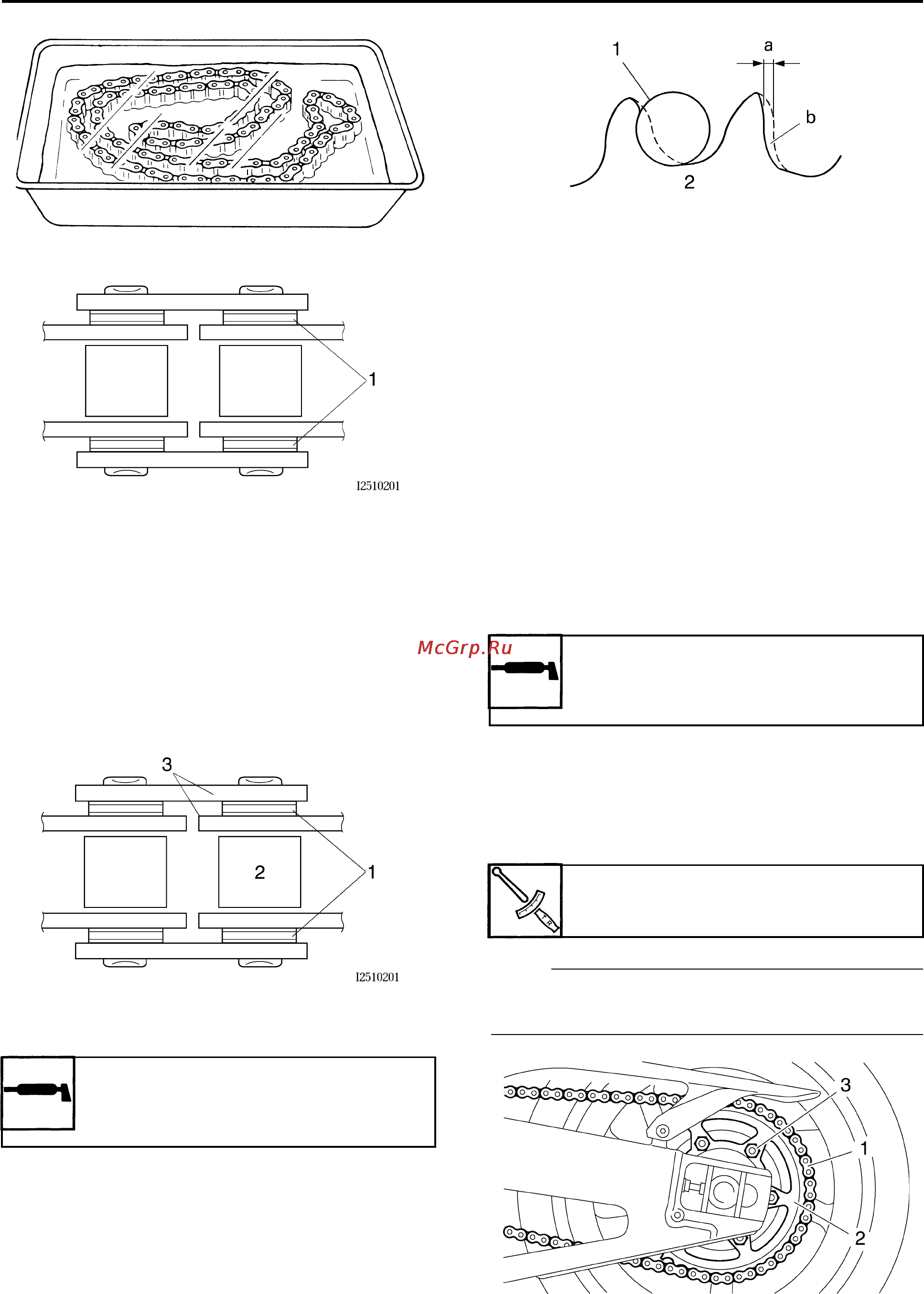

4. Check:
• O-rings “1”
Damage → Replace the drive chain.
• Drive chain rollers “2”
Damage/wear → Replace the drive chain.
• Drive chain side plates “3”
Damage/wear/cracks → Replace the drive
chain.
5. Lubricate:
• Drive chain
6. Check:
• Drive sprocket
• Rear wheel sprocket
More than 1/4 tooth “a” wear → Replace
the drive chain sprockets as a set.
Bent teeth → Replace the drive chain
sprockets as a set.
EAS23470
CHECKING THE REAR WHEEL SPROCKET
Refer to "CHECKING AND REPLACING THE
REAR WHEEL SPROCKET" on page 4-17
EAS23480
CHECKING THE REAR WHEEL DRIVE HUB
Refer to "CHECKING THE REAR WHEEL
DRIVE HUB" on page 4-17
EAS23490
INSTALLING THE DRIVE CHAIN
1. Lubricate:
• Drive chain
2. Install:
• Drive chain “1”
• Drive sprocket “2”
•Washer
• Drive sprocket nut “3”
NOTE:
While applying the rear brake, tighten the drive
sprocket nut.
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
b. Correct
1. Drive chain roller
2. Drive chain sprocket
Recommended lubricant
Engine oil or chain lubricant
suitable for O-ring chains
Drive sprocket nut
100 Nm (10 m·kg, 72 ft·lb)
