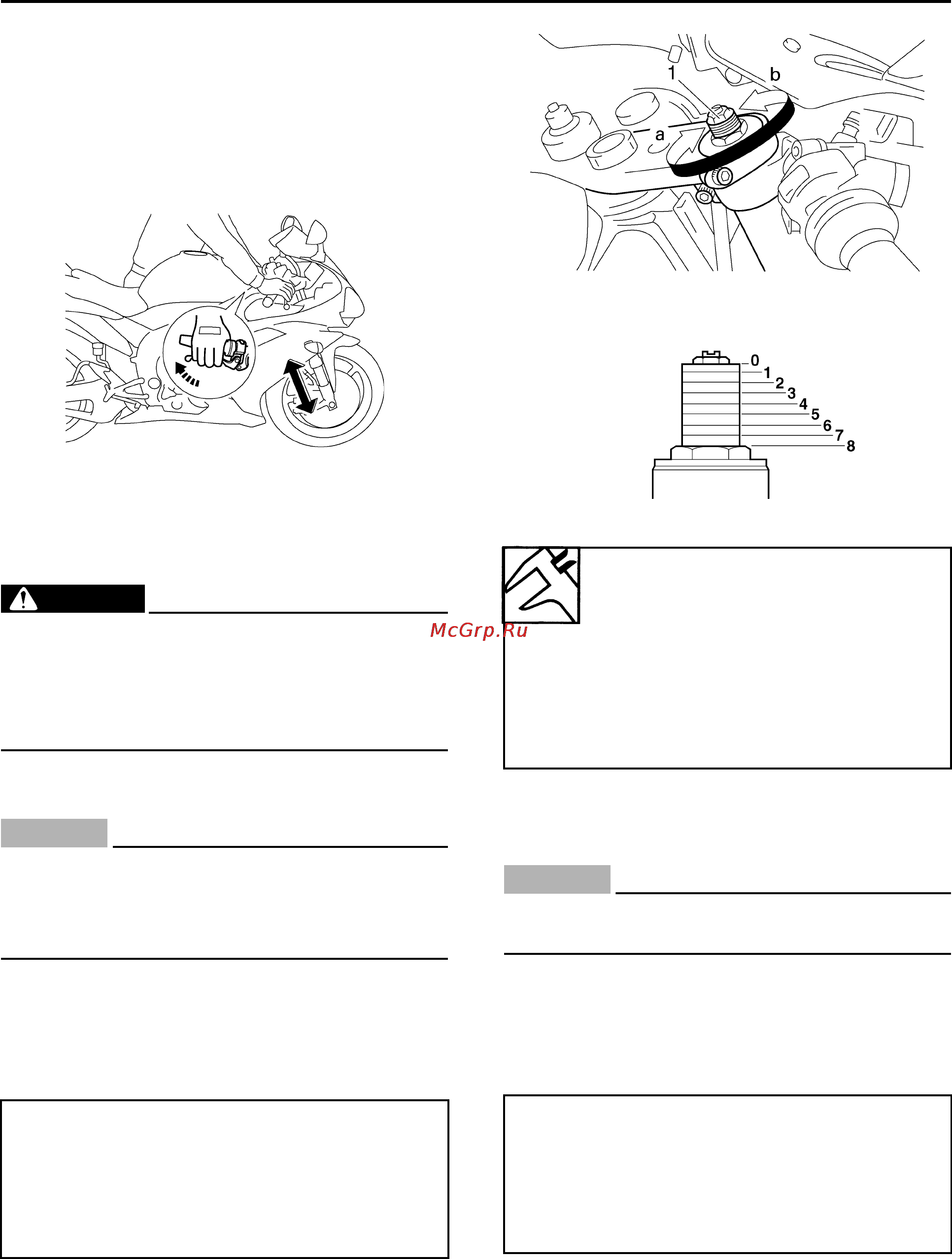

CHASSIS
3-30
4. Check:
• Front fork operation
Push down hard on the handlebar several
times and check if the front fork rebounds
smoothly.
Rough movement → Repair.
Refer to "FRONT FORK" on page 4-49.
EAS21580
ADJUSTING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
WARNING
EWA13150
• Always adjust both front fork legs evenly.
Uneven adjustment can result in poor
handling and loss of stability.
• Securely support the vehicle so that there
is no danger of it falling over.
Spring preload
CAUTION:
ECA13570
• Grooves are provided to indicate the
adjustment position.
• Never go beyond the maximum or mini-
mum adjustment positions.
1. Adjust:
• Spring preload
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting bolt “1” in direction “a” or
“b”.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Rebound damping
CAUTION:
ECA13590
Never go beyond the maximum or minimum
adjustment positions.
1. Adjust:
• Rebound damping
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Turn the adjusting screw “1” in direction “a”
or “b”.
Direction “a”
Spring preload is increased (suspension
is harder).
Direction “b”
Spring preload is decreased (suspension
is softer).
Spring preload adjusting posi-
tions
Minimum
8
Standard
5
Maximum
0
Direction “a”
Rebound damping is increased
(suspension is harder).
Direction “b”
Rebound damping is decreased
(suspension is softer).
