ELECTRICAL COMPONENTS
8-82
b. Turn the main switch to “ON”.

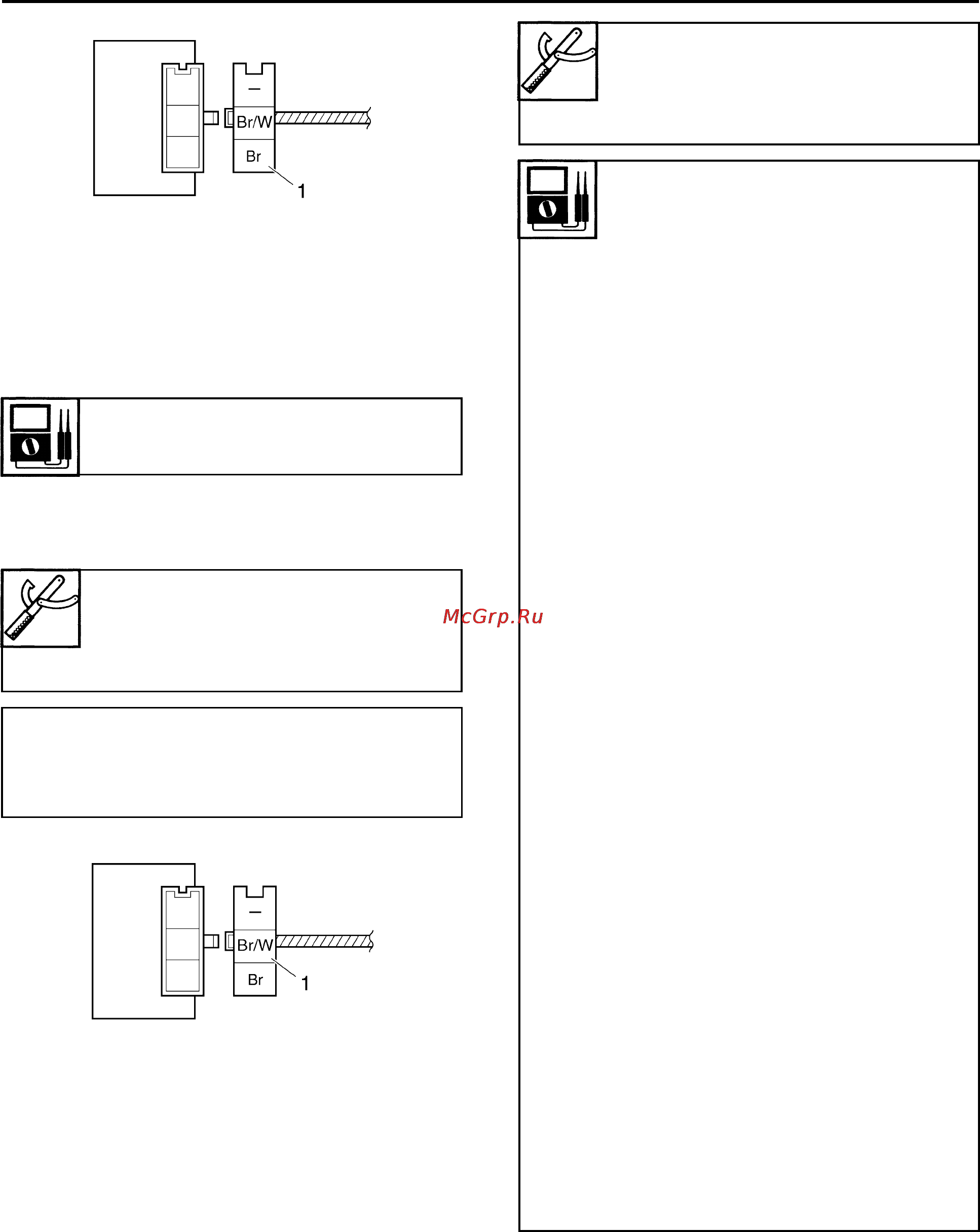

c. Measure the turn signal relay input voltage.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Check:
• Turn signal relay output voltage
Out of specification → Replace.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Connect the pocket tester (DC 20 V) to the
turn signal relay terminal as shown.
b. Turn the main switch to “ON”.
c. Measure the turn signal relay output volt-
age.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
EAS28050
CHECKING THE RELAY UNIT (DIODE)
1. Check:
• Relay unit (diode)
Out of specification → Replace.
Turn signal relay output voltage
DC 12 V
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
• Positive tester probe →
Brown/White “1”
• Negative tester probe →
Ground
Pocket tester
90890-03112
Analog pocket tester
YU-03112-C
Continuity
Positive tester probe → Sky
blue “1”
Negative tester probe →
Black/Yellow “2”
No continuity
Positive tester probe → Black/
Yellow “2”
Negative tester probe → Sky
blue “1”
Continuity
Positive tester probe → Sky
blue “1”
Negative tester probe → Blue/
Yellow “3”
No continuity
Positive tester probe → Blue/
Yellow “3”
Negative tester probe → Sky
blue “1”
Continuity
Positive tester probe → Sky
blue “1”
Negative tester probe → Sky
blue/White “4”
No continuity
Positive tester probe → Sky
blue/White “4”
Negative tester probe → Sky
blue “1”
Continuity
Positive tester probe → Blue/
Black “5”
Negative tester probe → Blue/
Yellow “3”
No continuity
Positive tester probe → Blue/
Yellow “3”
Negative tester probe → Blue/
Black “5”
