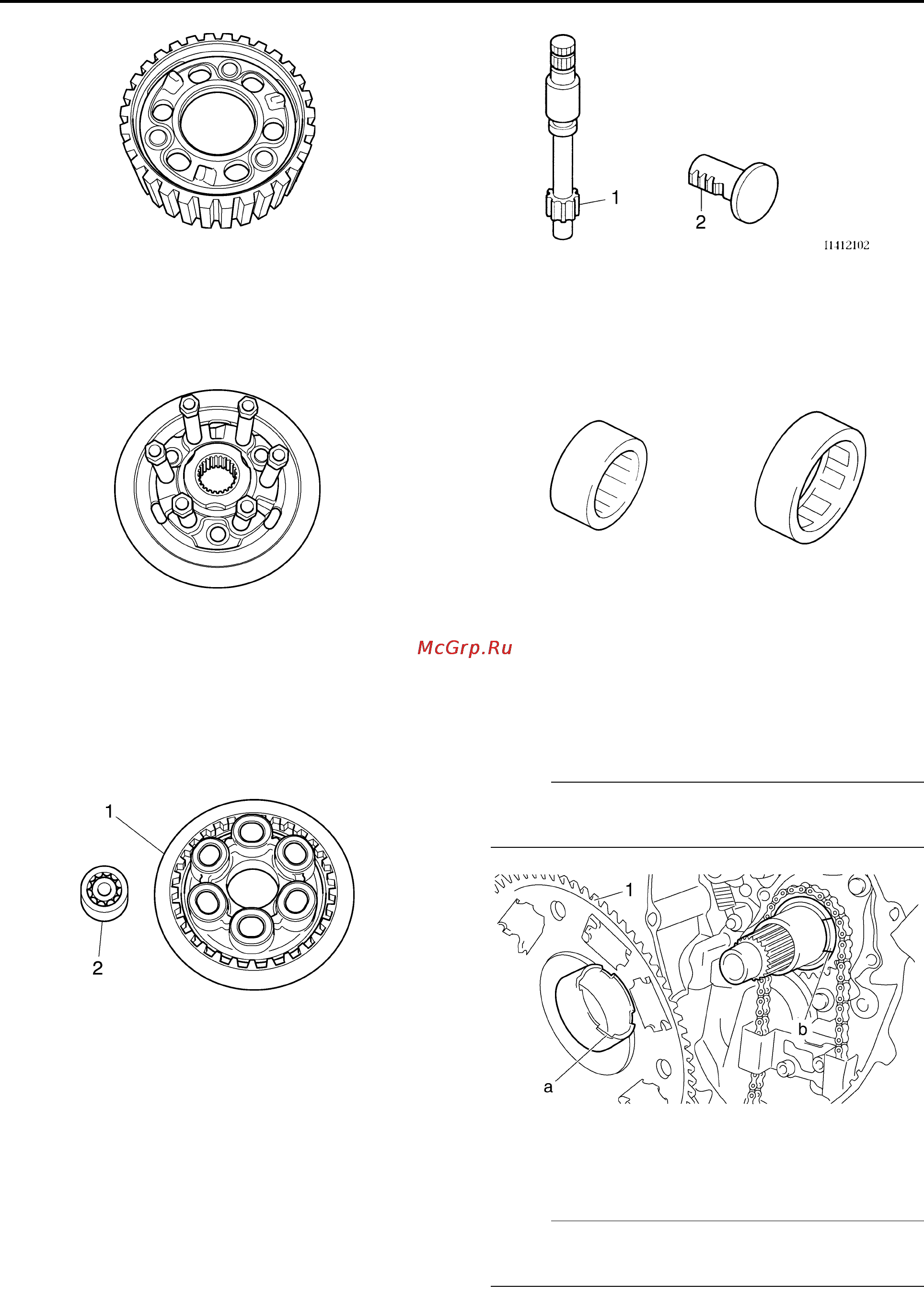

CLUTCH

5-50

EAS4C81005

CHECKING THE PRESSUR PLATE 2

1. Check:

• Pressure plate 2

Cracks / damage → Replace.

EAS25170

CHECKING THE PRESSURE PLATE 1

1. Check:

• Pressure plate “1”

Cracks/damage → Replace.

• Bearing “2”

Damage/wear → Replace.

EAS4C81006

CHECKING THE PUSH LEVER SHAFT AND

PUSH ROD

1. Check:

• Push lever shaft pinion gear teeth “1”

• Push rod teeth “2”

Damage/wear → Replace the push rod and

push lever shaft pinion gear as a set.

2. Check:

• Push rod bearing

Damage/wear → Replace.

EAS25240

INSTALLING THE CLUTCH

1. Install:

• Clutch housing “1”

• Conical spring washer

• Thrust plate 2

NOTE:

Align the projection of clutch housing “a” and

hollow of the oil pump drive gear “b”.

2. Install:

• Pressure plate 2 “1”

• Clutch boss “2”

NOTE:

Fit the groove “a” of the pressure plate 2 to the

projection “b” of the clutch boss to assemble.
