![Yamaha YZF-R1 (2006) [141/426] Rear wheel](/img/pdf.png)
Yamaha YZF-R1 (2006) [141/426] Rear wheel
![Yamaha YZF-R1 (2006) [141/426] Rear wheel](/views2/1121350/page141/bg8d.png)
REAR WHEEL
4-14

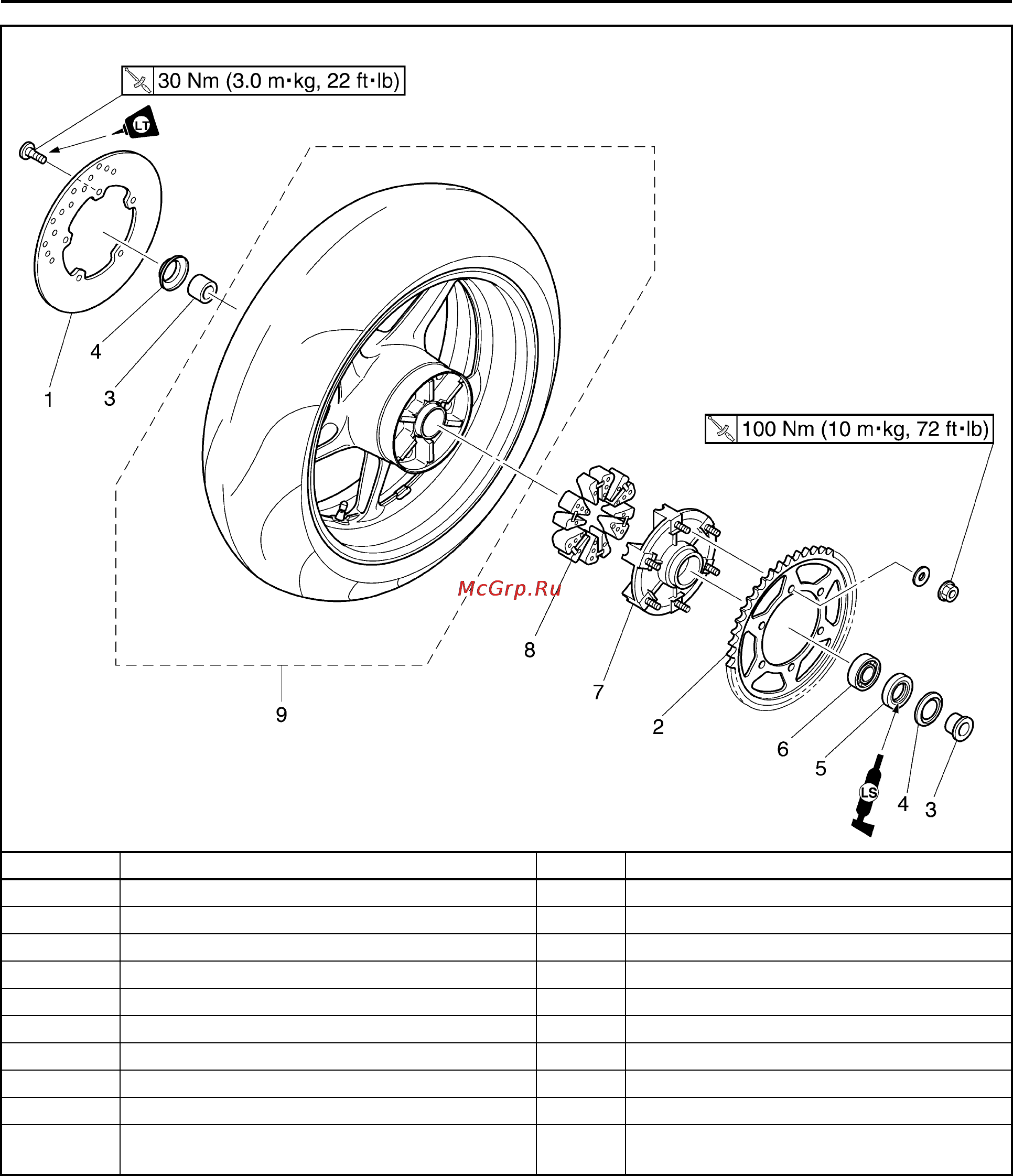

Removing the brake disc and rear wheel sprocket
Order Job/Parts to remove Q’ty Remarks
1 Rear brake disc 1
2 Rear wheel sprocket 1
3 Collar 2
4Dust cover 2
5 Oil seal 1
6 Bearing 1
7 Rear wheel drive hub 1
8 Rear wheel drive hub damper 6
9 Rear wheel 1
For installation, reverse the removal proce-
dure.
