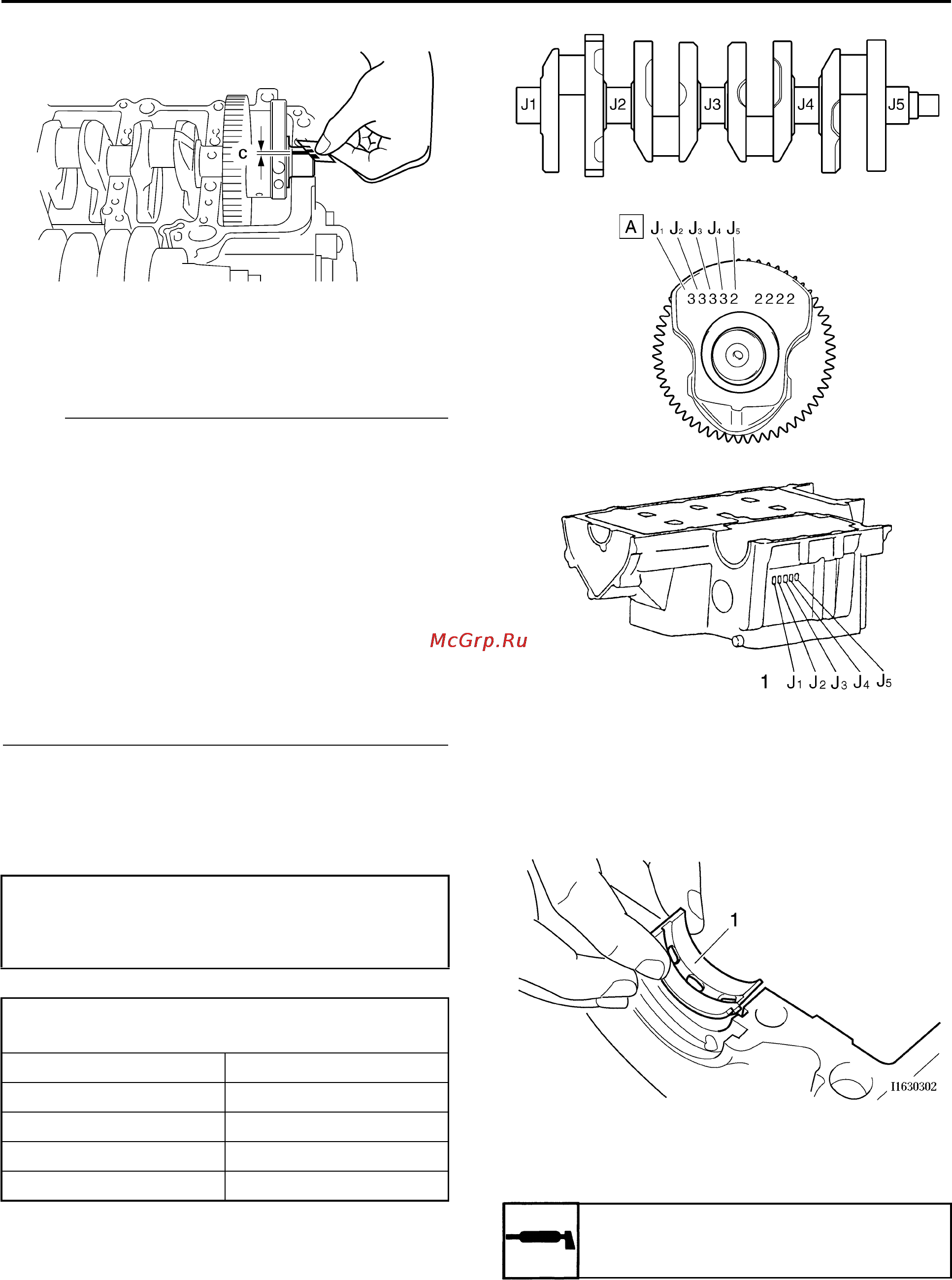

CRANKSHAFT
5-82
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
2. Select:
• Crankshaft journal bearings (J1–J5)
NOTE:
• The numbers “A” stamped into the crank-
shaft web and the numbers “1” stamped into
the lower crankcase are used to determine
the replacement crankshaft journal bearing
sizes.
• “J1–J5” refer to the bearings shown in the
crankshaft illustration.
• If “J1–J5” are the same, use the same size
for all of the bearings.
• If the size is the same for all “J
1
to J
5
” one
digit for that size is indicated. (Crankcase
side only)
For example, if the crankcase “J
1
” and
crankshaft web “J
1
” numbers are “6” and
“2” respectively, then the bearing size for
“J
1
” is:
EAS26200
INSTALLING THE CRANKSHAFT
1. Install:
• Crankshaft journal upper bearings “1”
(into the upper crankcase)
2. Lubricate:
• Crankshaft journal upper bearings
(with the recommended lubricant)
“J
1
” (crankcase) – “J
1
”
(crankshaft web) – 1 =
6 – 2 – 1 = 3 (brown)
CRANKSHAFT JOURNAL BEARING
COLOR CODE
0 White
1Blue
2Black
3Brown
4 Green
Recommended lubricant
Engine oil
