AIR INDUCTION SYSTEM
7-9
EAS27040
AIR INDUCTION SYSTEM

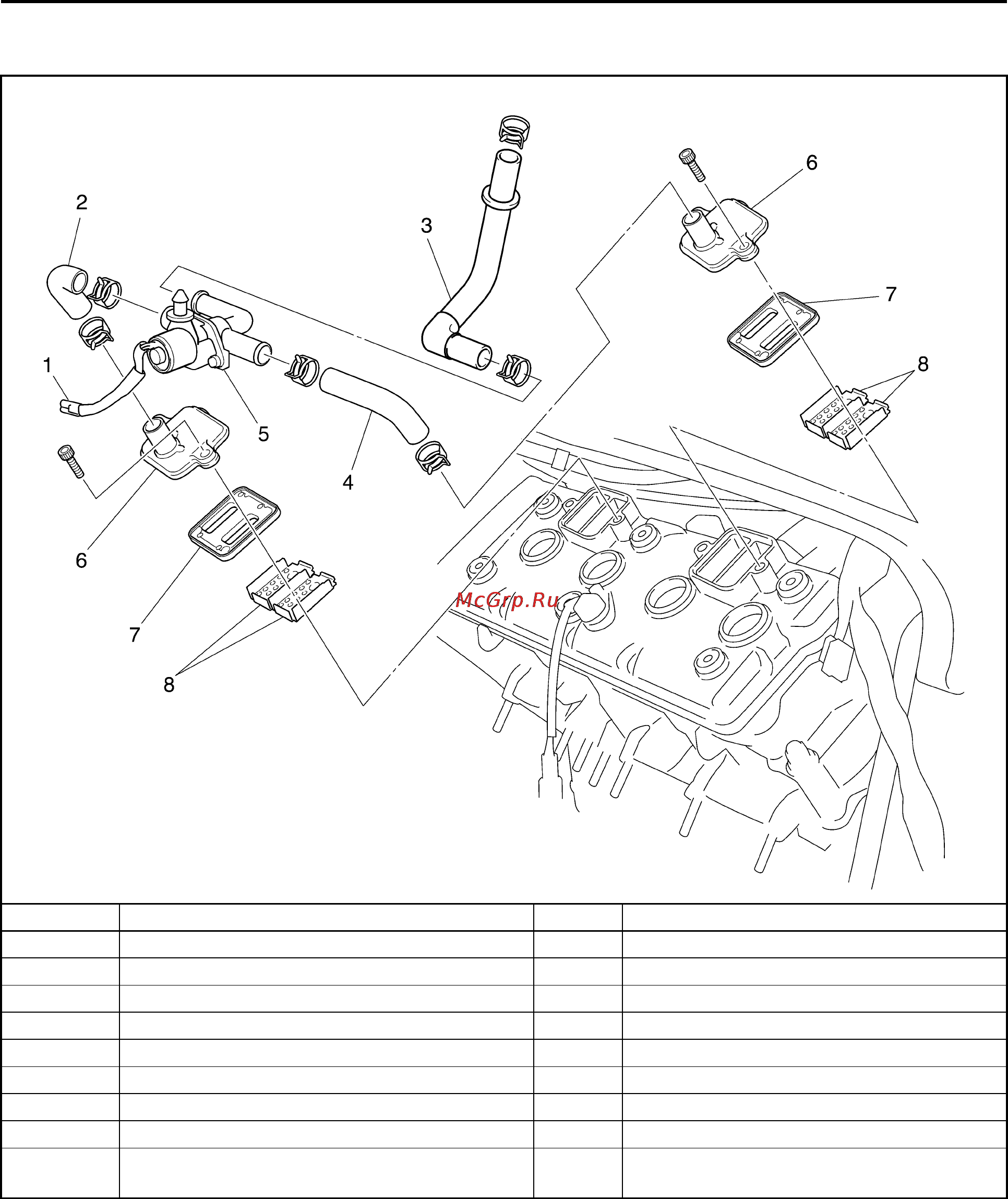

Removing the air cut-off valve assembly and hoses
Order Job/Parts to remove Q’ty Remarks
1 Air cut-off valve coupler 1 Disconnect.
2 Air cut-off valve hose 1 1 Disconnect.
3 Air cut-off valve hose 2 1 Disconnect.
4 Air cut-off valve hose 3 1 Disconnect.
5 Air cut-off valve 1
6 Reed valve cap 2
7 Reed valve assembly 2
8Plate 4
For installation, reverse the removal proce-
dure.
