RADIATOR
6-1
EAS26380
RADIATOR

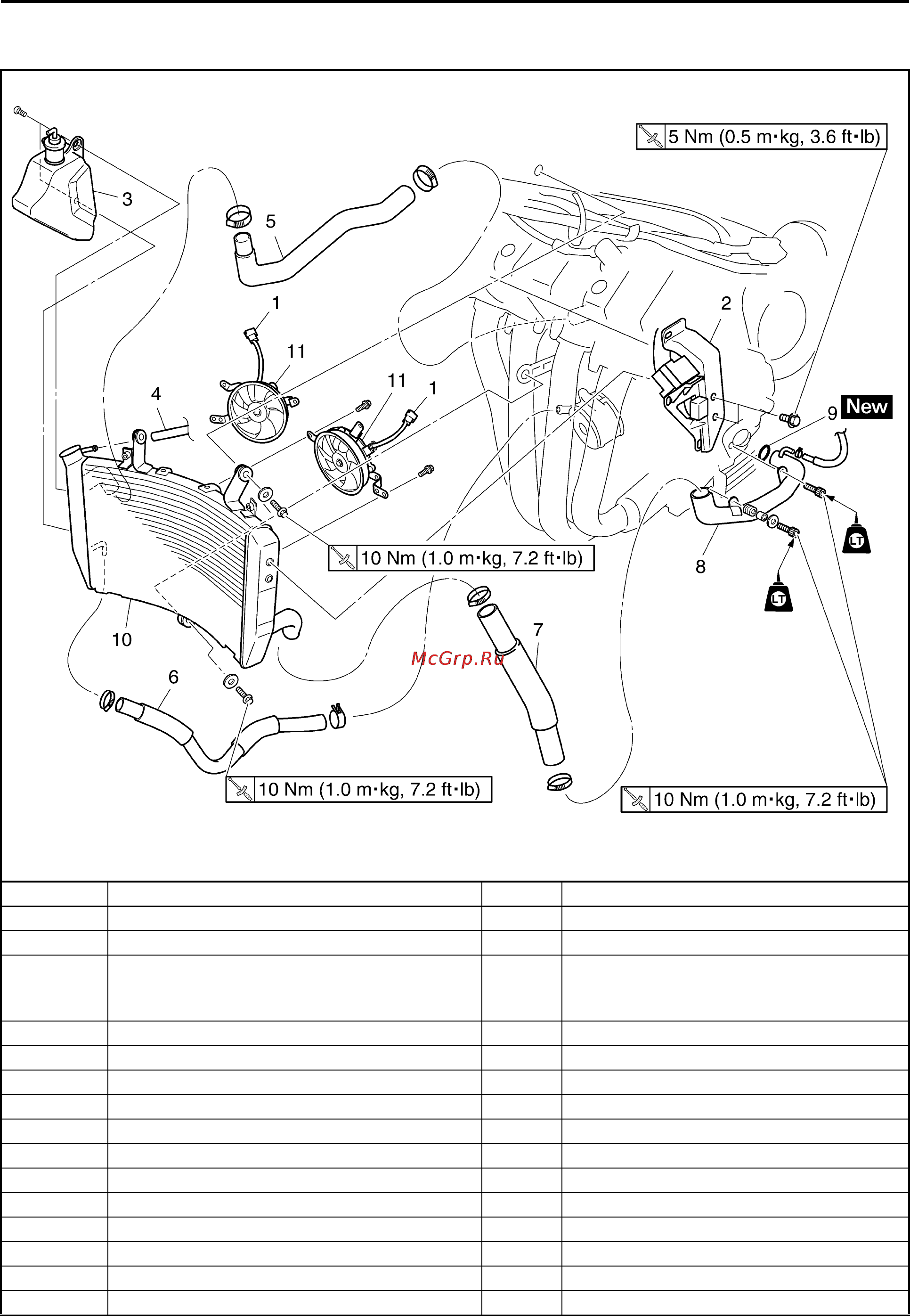

Removing the radiator
Order Job/Parts to remove Q’ty Remarks
Rider seat Refer to "GENERAL CHASSIS" on page 4-1.
Side cowling Refer to "GENERAL CHASSIS" on page 4-1.
Coolant
Drain.
Refer to "CHANGING THE COOLANT" on
page 3-19.
Fuel tank Refer to "FUEL TANK" on page 7-1.
Air filter case Refer to "GENERAL CHASSIS" on page 4-1.
1 Radiator fan coupler 2 Disconnect.
2 Fuse holder stay 1
3 Coolant reservoir tank 1
4 Coolant reservoir hose 1
5 Radiator inlet hose 1
6 Oil cooler outlet hose 1
7 Radiator outlet hose 1
8 Water pump inlet pipe 1
9O-ring 1
10 Radiator 1
