Yamaha YZF-R1 (2006) [196/426] Swingarm

SWINGARM

4-69

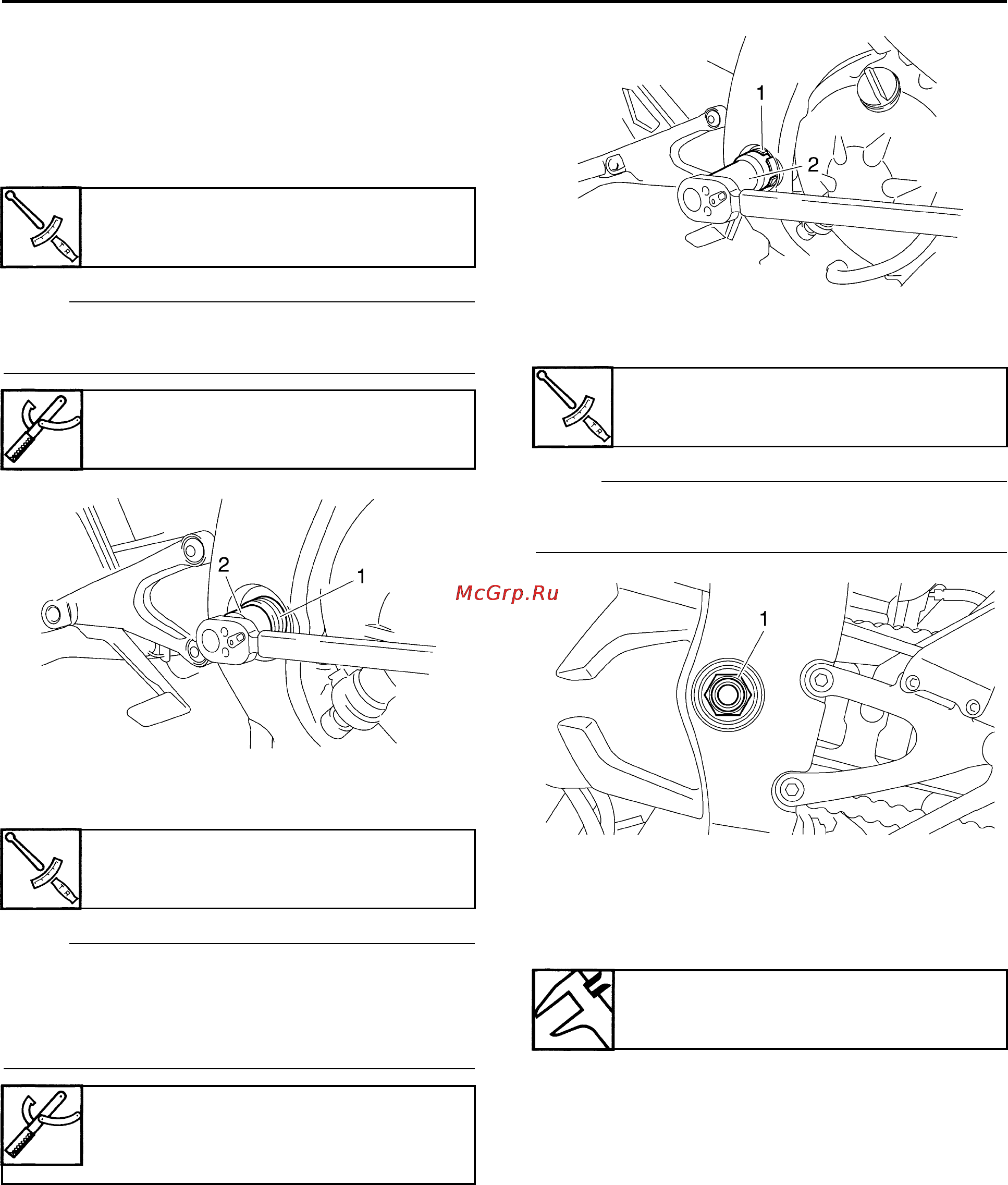

3. Install:

• Pivot shaft “1”

NOTE:

Tighten the pivot shaft with the damper rod

holder (22 mm) “2”.

4. Install:

• Pivot shaft ring nut “1”

NOTE:

• Lubricate the pivot ring nut threads and mat-

ing surfaces with lithium-soap-based grease.

• Tighten the pivot shaft ring nut with the ring

nut wrench “2”.

5. Install:

• Pivot shaft nut “1”

NOTE:

Lubricant the pivot shaft nut threads and mat-

ing surfaces with lithium-soap-based grease.

6. Adjust:

• Drive chain slack

Refer to "ADJUSTING THE DRIVE CHAIN

SLACK" on page 3-27.

5. Swingarm

6. Pivot shaft

A. Left side

B. Right side

Pivot shaft

7 Nm (0.7 m·kg, 5.1 ft·lb)

Damper rod holder (22 mm)

90890-01365

Pivot shaft ring nut

65 Nm (6.5 m·kg, 47 ft·lb)

Ring nut wrench

90890-01507

YM-01507

Pivot shaft nut

105 Nm (10.5 m·kg, 76 ft·lb)

Drive chain slack

30.0–40.0 mm (1.18–1.57 in)
