OIL PUMP

5-57

EAS24920

OIL PUMP

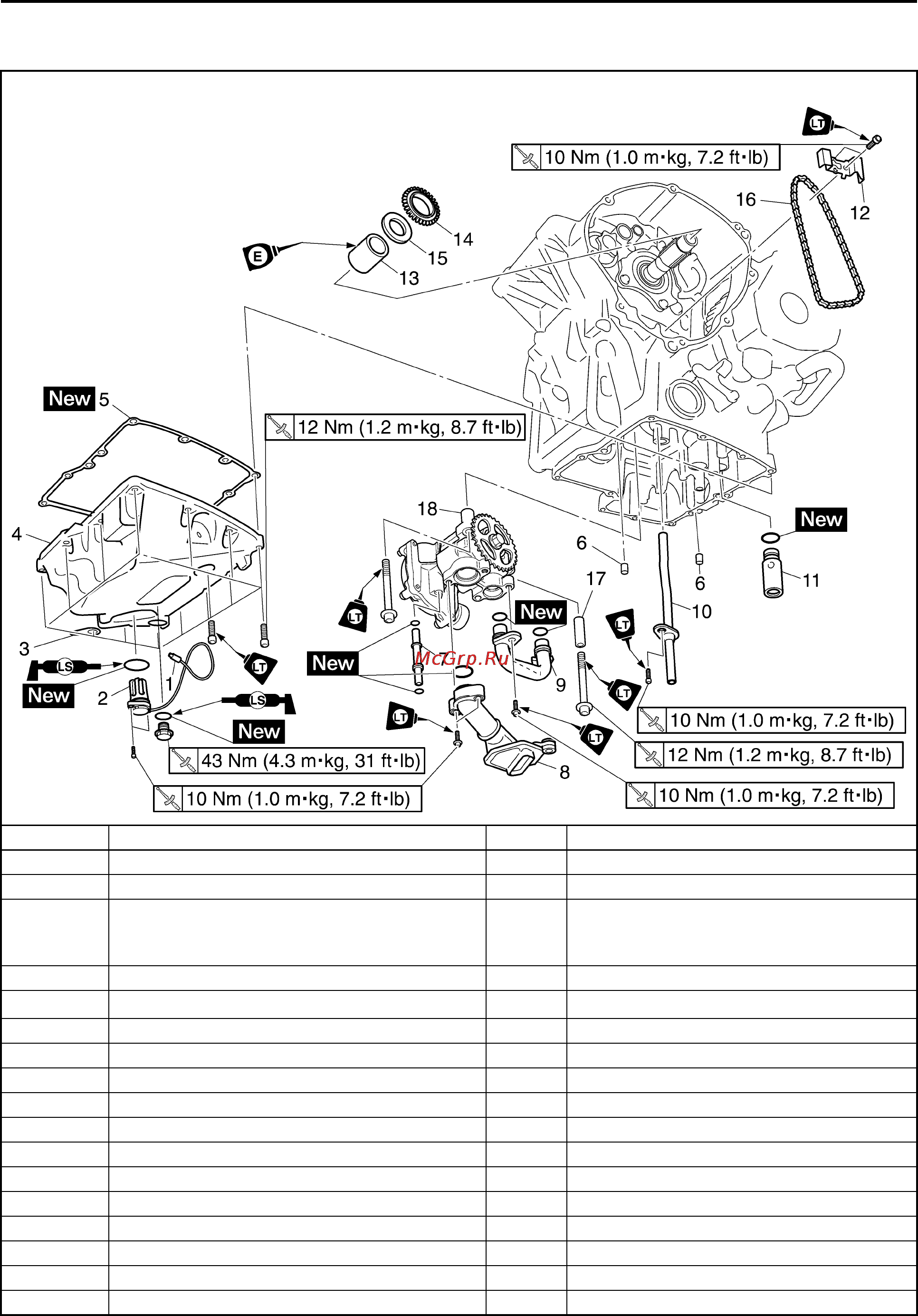

Removing the oil pan and oil pump

Order Job/Parts to remove Q’ty Remarks

Side cowlings Refer to "GENERAL CHASSIS" on page 4-1.

Lower cowlings Refer to "GENERAL CHASSIS" on page 4-1.

Engine oil

Drain.

Refer to "CHANGING THE ENGINE OIL" on

page 3-11.

EXUP cables Refer to "ENGINE REMOVAL" on page 5-1

sensor

Refer to "ENGINE REMOVAL" on page 5-1

Muffler Refer to "ENGINE REMOVAL" on page 5-1

Exhaust pipe assembly Refer to "ENGINE REMOVAL" on page 5-1

Clutch assembly Refer to "CLUTCH" on page 5-44.

Water pump inlet pipe Refer to "OIL COOLER" on page 6-4.

Water pump outlet pipe Refer to "OIL COOLER" on page 6-4.

1 Oil level switch lead coupler 1 Disconnect.

2 Oil level switch 1

3 Oil level switch lead holder 1

4Oil pan 1

5 Oil pan gasket 1

6Dowel pin 1

7Drain pipe 2
