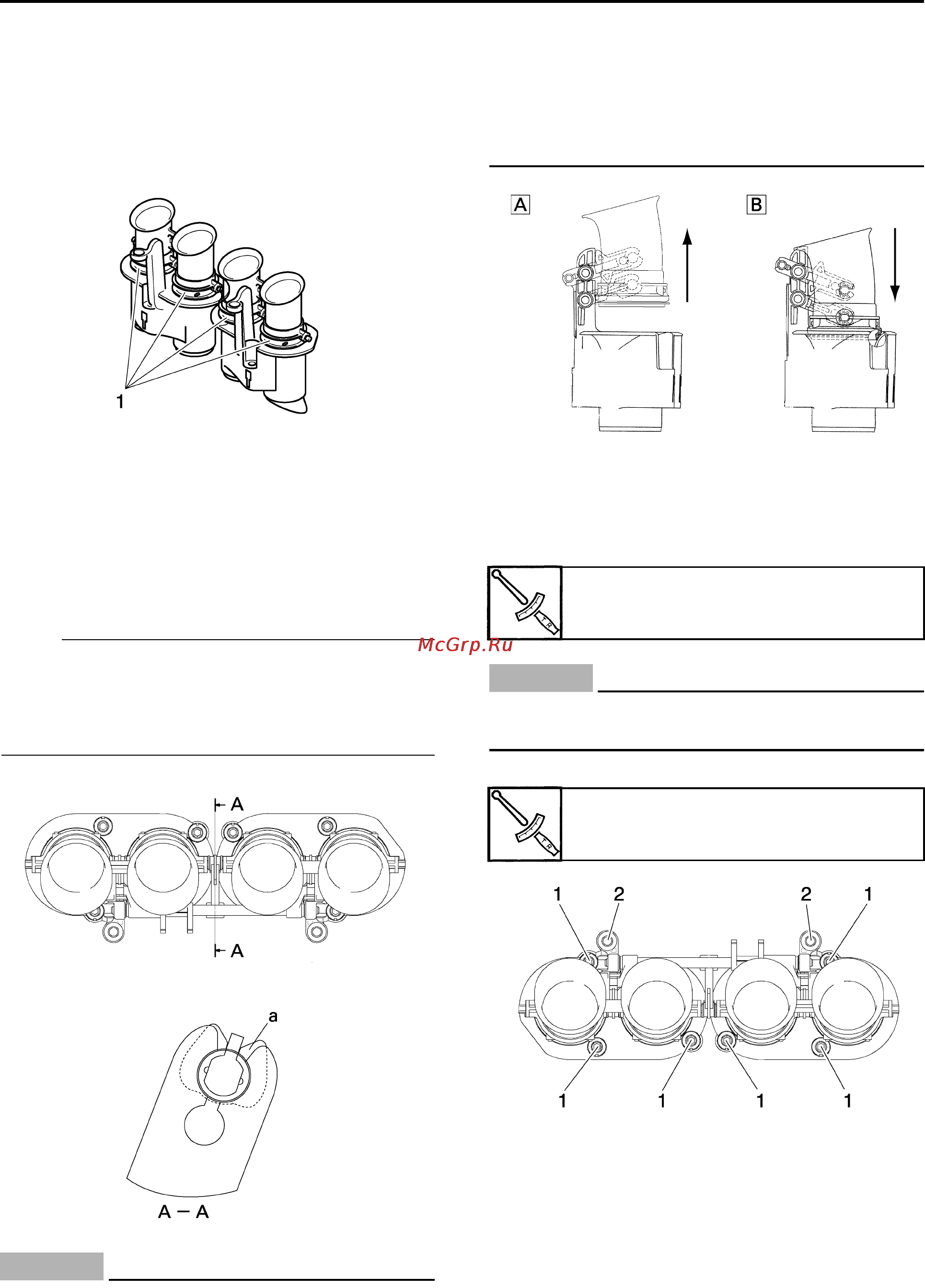

GENERAL CHASSIS
4-5
EAS4C81025
CHECKING THE INTAKE FUNNEL
1. Check:
• Intake funnel
Cracks/damage → Replace.
• Intake funnel seal rubber “1”
Cracks/damage → Replace.
• Intake funnel rods
Damage/scratches → Replace.
EAS4C81026
CHECKING THE INTAKE FUNNEL
1. Install:
• Intake funnel rod
• Intake funnel
NOTE:
• To install the intake funnel, do not mistake
the front and rear directions.
• For Bushing 2 “a”, point the direction of notch
hole as shown in the illustration.
CAUTION:
ECA4C81020
• After assembly, make sure that the intake
funnel smoothly moves to the contacting
surface between upper stopper and lower
seating position when it is moved by
hand.
• Make sure that the intake funnel smoothly
strokes from the upper position to the
seating position by its own weight.
• Air filter case
• Intake funnel joint bolt “1”
CAUTION:
ECA4C81022
Do not remove the bolts from the intake
funnel joint.
• Intake funnel joint bolt “2”
• Intake funnel servo motor rod assembly
EAS4C81027
CHECKING THE INTAKE FUNNEL OPERA-
TION
1. Check:
• Intake funnel operation
A. Upper
B. Lower
Intake funnel joint bolt
6 Nm (0.6 m·kg, 4.3 ft·lb)
Intake funnel joint bolt
3 Nm (0.3 m·kg, 2.2 ft·lb)
