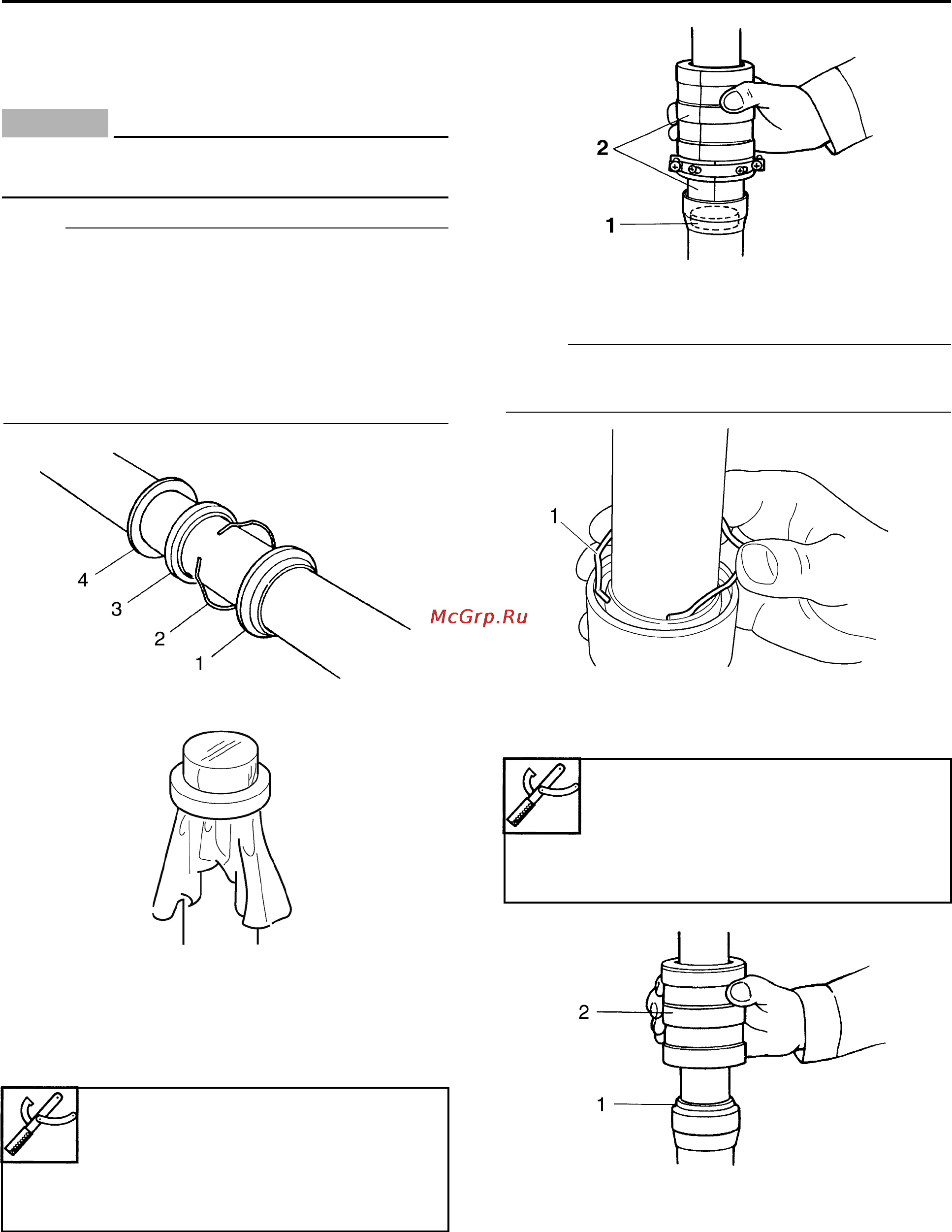

FRONT FORK
4-54
• Oil seal clip “2”
•Oil seal “3”
• Washer “4”
CAUTION:
ECA14220
Make sure the numbered side of the oil seal
faces up.
NOTE:
• Before installing the oil seal, lubricate its lips
with lithium-soap-based grease.
• Lubricate the outer surface of the inner tube
with fork oil.
• Before installing the oil seal, cover the top of
the front fork leg with a plastic bag to protect
the oil seal during installation.
5. Install:
• Washer
•Oil seal “1”
(with the fork seal driver “2”)
6. Install:
• Oil seal clip “1”
NOTE:
Adjust the oil seal clip so that it fits into the
outer tube’s groove.
7. Install:
• Dust seal “1”
(with the fork seal driver “2”)
8. Install:
• Rod puller “1”
• Rod puller attachment “2”
(onto the damper rod “3”)
Fork seal driver
90890-01442
Adjustable fork seal driver (36–
46 mm)
YM-01442
Fork seal driver
90890-01442
Adjustable fork seal driver (36–
46 mm)
YM-01442
