OIL COOLER
6-4
EAS26410
OIL COOLER

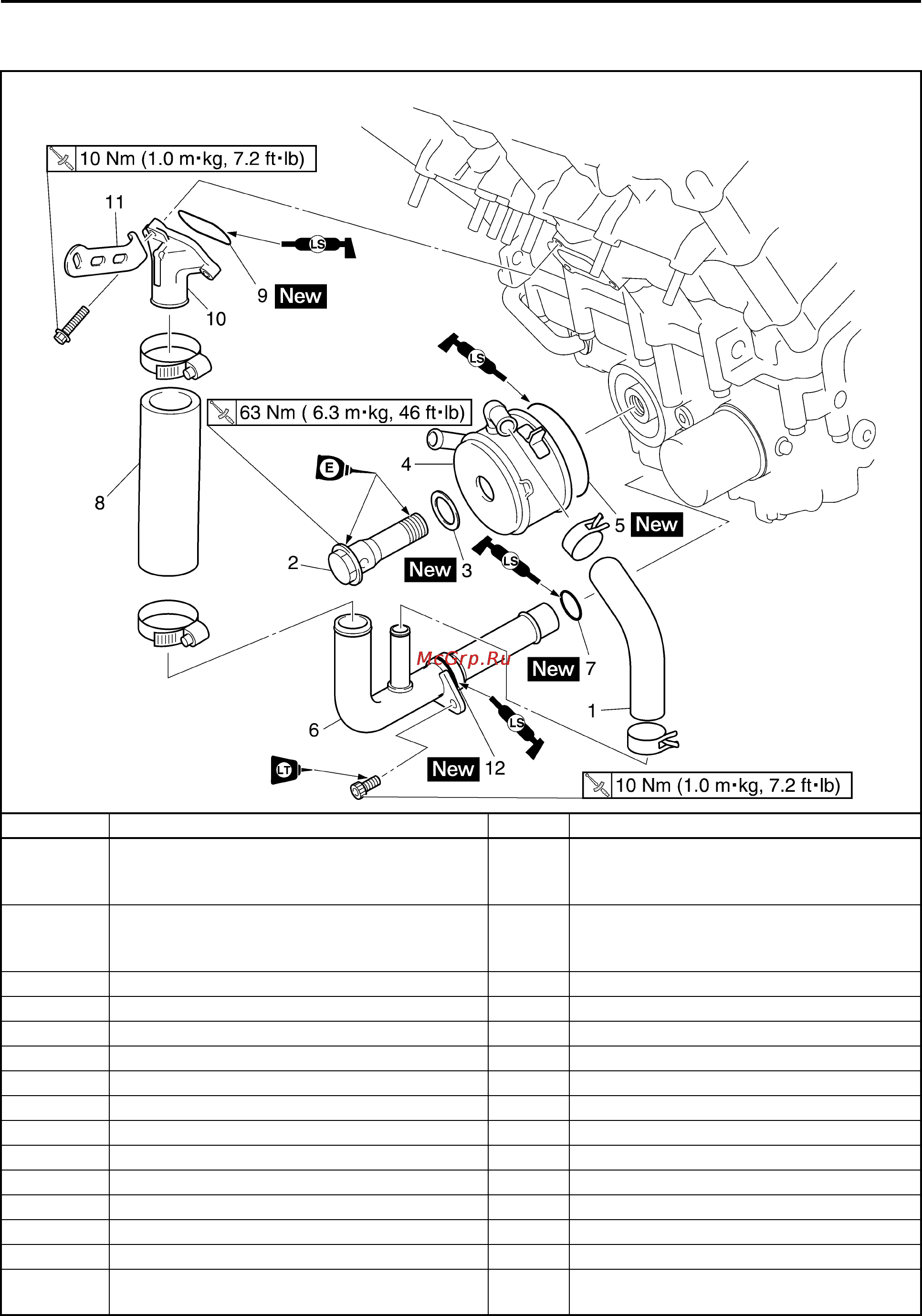

Removing the oil cooler
Order Job/Parts to remove Q’ty Remarks
Engine oil
Drain.
Refer to "CHANGING THE ENGINE OIL" on
page 3-11.
Coolant
Drain.
Refer to "CHANGING THE COOLANT" on
page 3-19.
1 Oil cooler inlet hose 1
2 Oil cooler bolt 1 Loosen.
3 Washer 1 Disconnect.
4 Oil cooler 1 Disconnect.
5O-ring 1
6 Water pump outlet pipe 1
7O-ring 1
8 Water jacket joint inlet hose 1
9O-ring 1
10 Water jacket joint 1
11 Stay 1
12 O-ring 1
For installation, reverse the removal proce-
dure.
