GENERAL CHASSIS
4-4

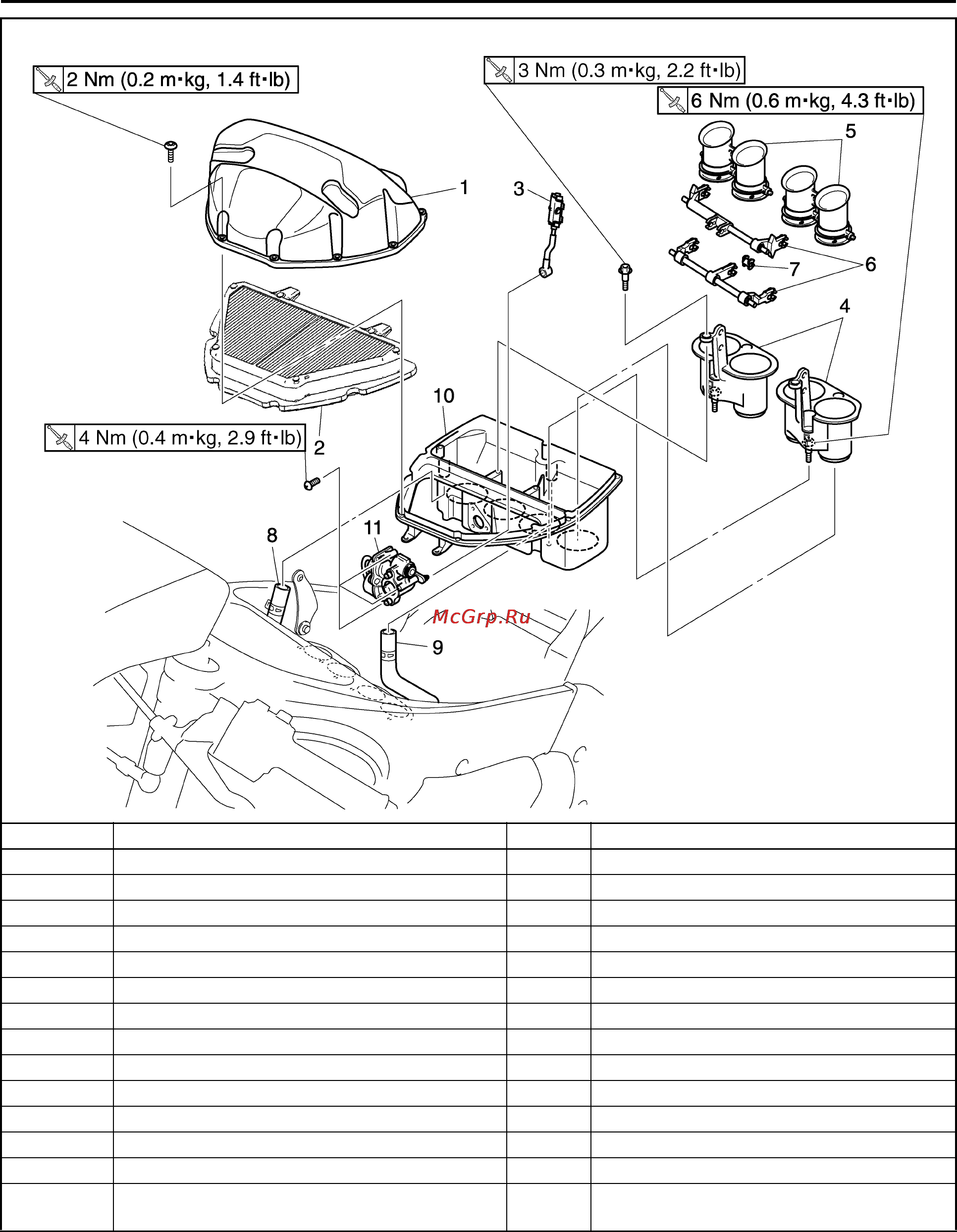

Removing the air filter case
Order Job/Parts to remove Q’ty Remarks
Rider seat Refer to "GENERAL CHASSIS" on page 4-1.
Fuel tank Refer to "FUEL TANK" on page 7-1.
1 Air filter case cover 1
2 Air filter 1
3 Intake funnel servo motor rod assembly 1
4 Intake funnel joint 2
5 Intake funnel 2
6 Intake funnel rod 2
7 Bushing 2 5
8 Air induction system hose 1
9 Crankcase breather hose 1
10 Air filter case 1
11 Intake funnel servo motor 1
For installation, reverse the removal proce-
dure.
