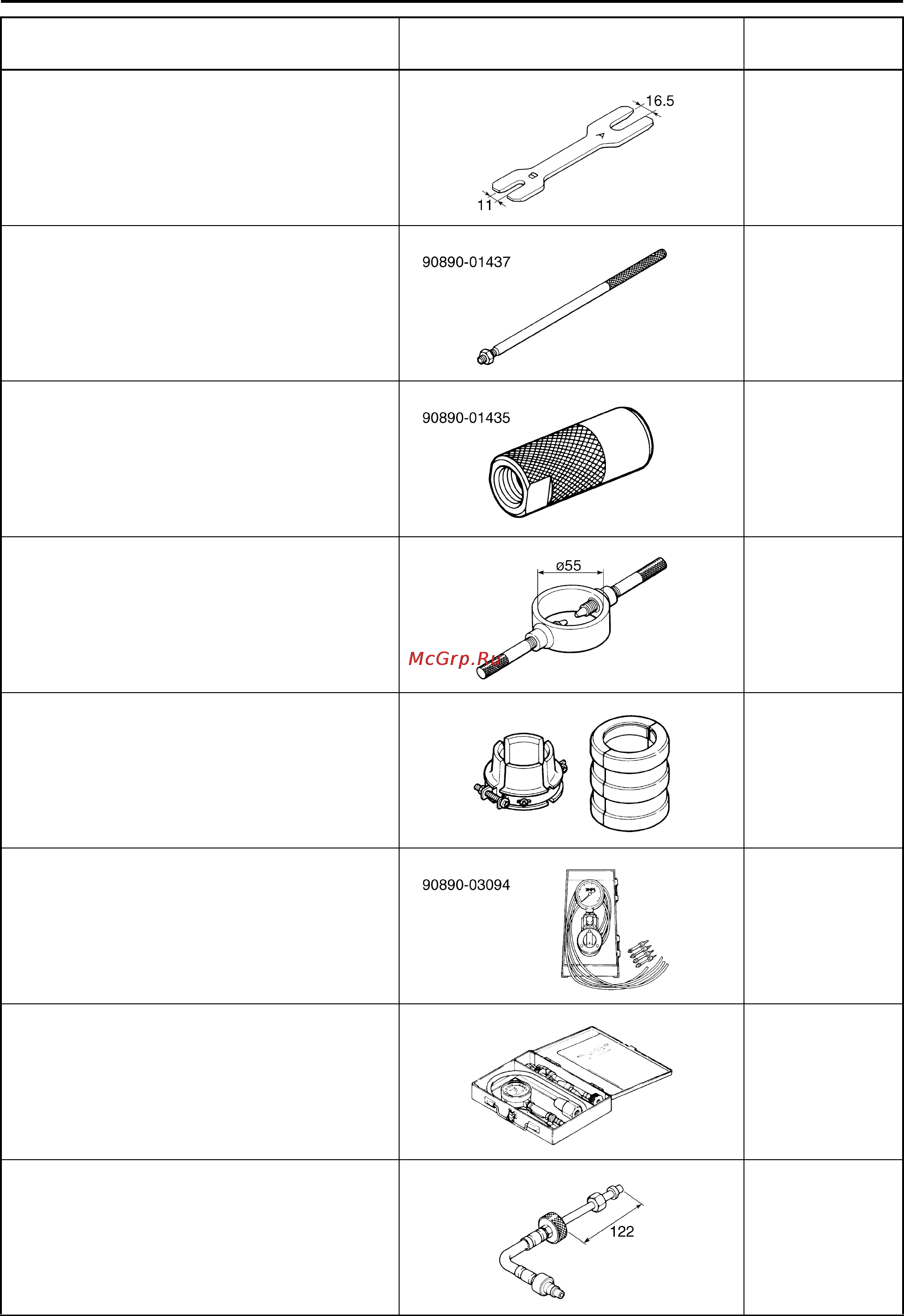

SPECIAL TOOLS
1-16
Rod holder
90890-01434
Damper rod holder double ended
YM-01434
4-51, 4-56
Rod puller
90890-01437
Universal damping rod bleeding tool set
YM-A8703
4-55, 4-56
Rod puller attachment (M12)
90890-01435
Universal damping rod bleeding tool set
YM-A8703
4-55, 4-56
Fork spring compressor
90890-01441
YM-01441
4-51, 4-56
Fork seal driver
90890-01442
Adjustable fork seal driver (36–46 mm)
YM-01442
4-54
Vacuum gauge
90890-03094
Carburetor synchronizer
YU-44456
3-7
Compression gauge
90890-03081
Engine compression tester
YU-33223
3-10
Extension
90890-04136
3-10
Tool name/Tool No. Illustration
Reference
pages
