FRONT WHEEL
4-8
EAS21870
FRONT WHEEL

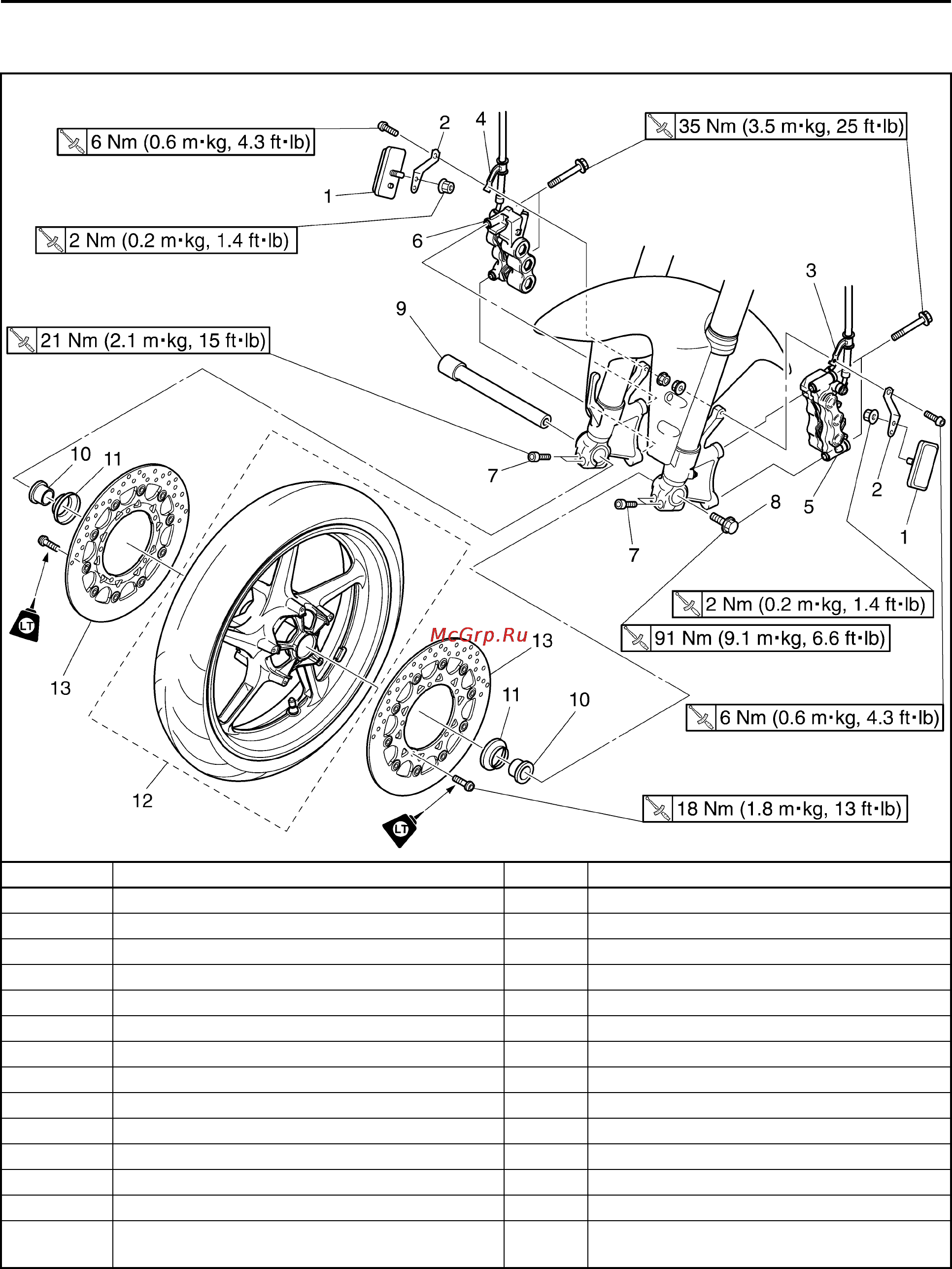

Removing the front wheel and brake discs
Order Job/Parts to remove Q’ty Remarks
1 Reflector 2
2 Reflector bracket 2
3 Left brake hose holder 1
4 Right brake hose holder 1
5 Left front brake caliper 1
6 Right front brake caliper 1
7 Front wheel axle pinch bolt 4
8 Front wheel axle bolt 1
9 Front wheel axle 1
10 Collar (left and right) 2
11 Dust cover (left and right) 2
12 Front wheel 1
13 Front brake disc (left and right) 2
For installation, reverse the removal proce-
dure.
