ELECTRIC STARTER
5-43
EAS24810

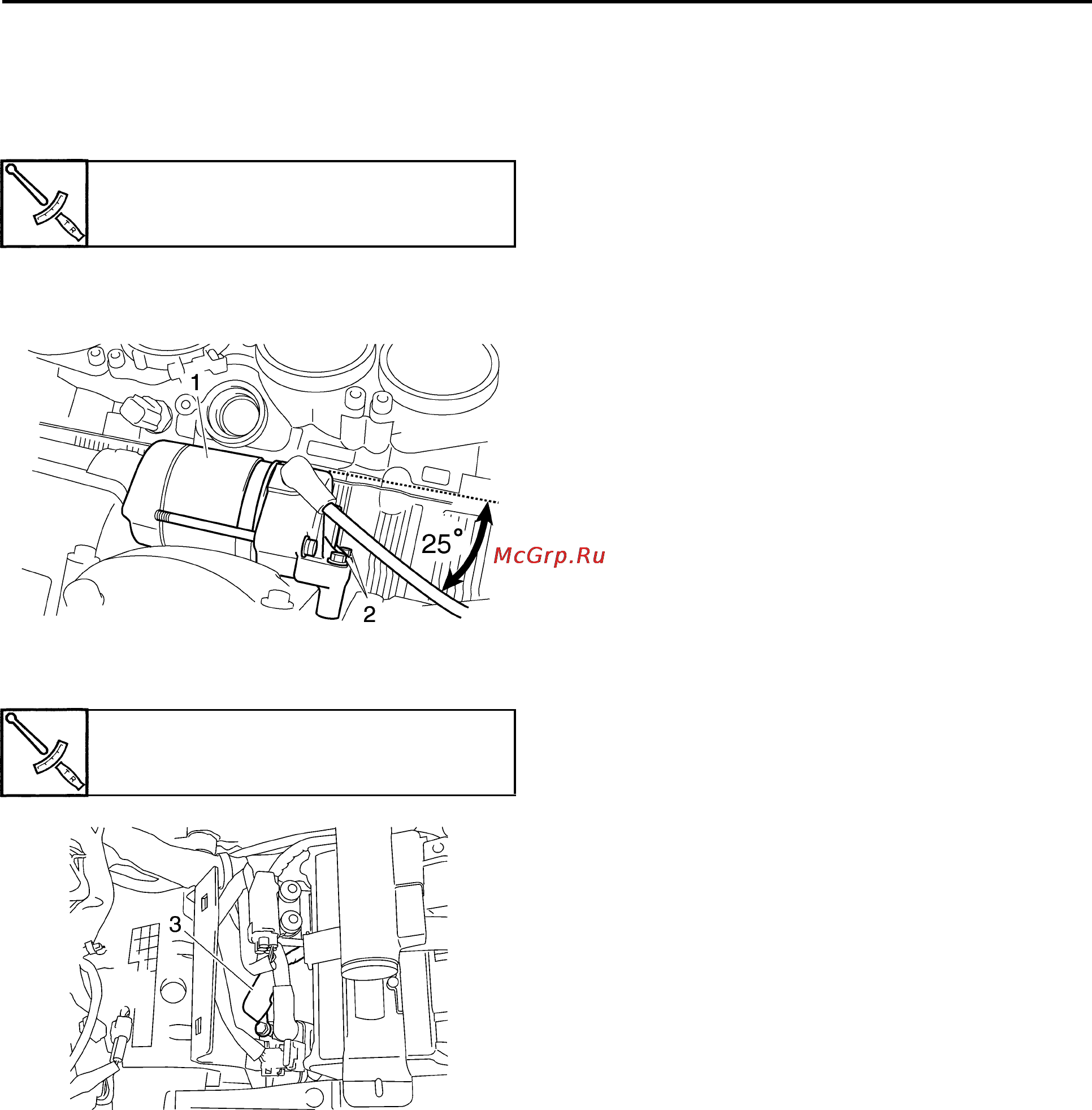

INSTALLING THE STARTER MOTOR
1. Install:
• Starter motor “1”
• Starter motor bolts “2”
2. Connect:
• Starter motor lead “3”
Starter motor bolt
10 Nm (1.0 m·kg, 7.2 ft·lb)
Starter motor lead bolt
7 Nm (0.7 m·kg, 5.1 ft·lb)
