GENERAL CHASSIS
4-1
EAS21830
GENERAL CHASSIS

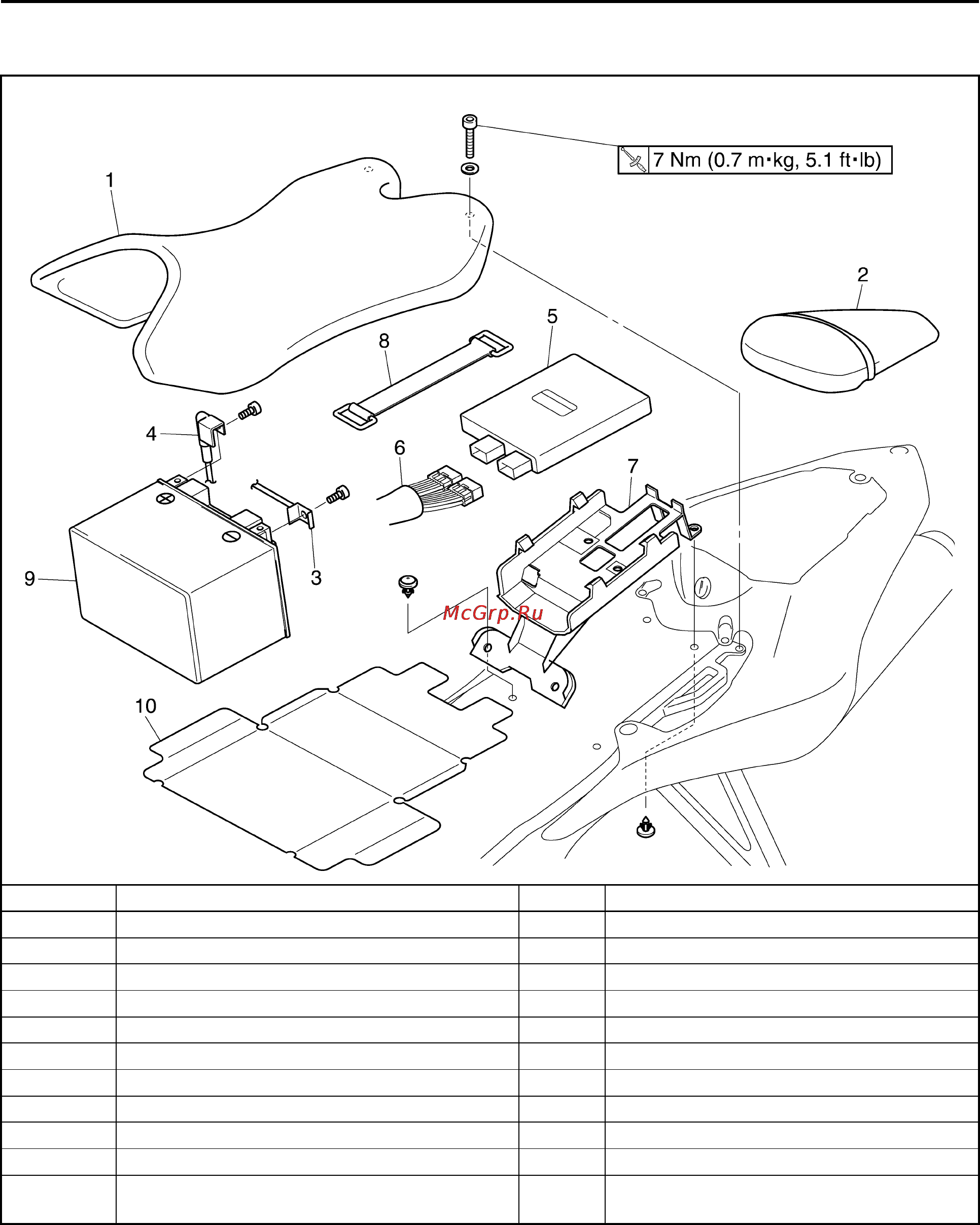

Removing the seat and battery
Order Job/Parts to remove Q’ty Remarks
1 Rider seat
2 Passenger seat 1
3 Battery negative lead 1
4 Battery positive lead 1
5 ECU (engine control unit) 1
6 ECU lead coupler 1 Disconnect.
7ECU cover 1
8 Battery band 1
9Battery 1
10 Battery seat 1
For installation, reverse the removal proce-
dure.
