THERMOSTAT
6-6
EAS26440
THERMOSTAT

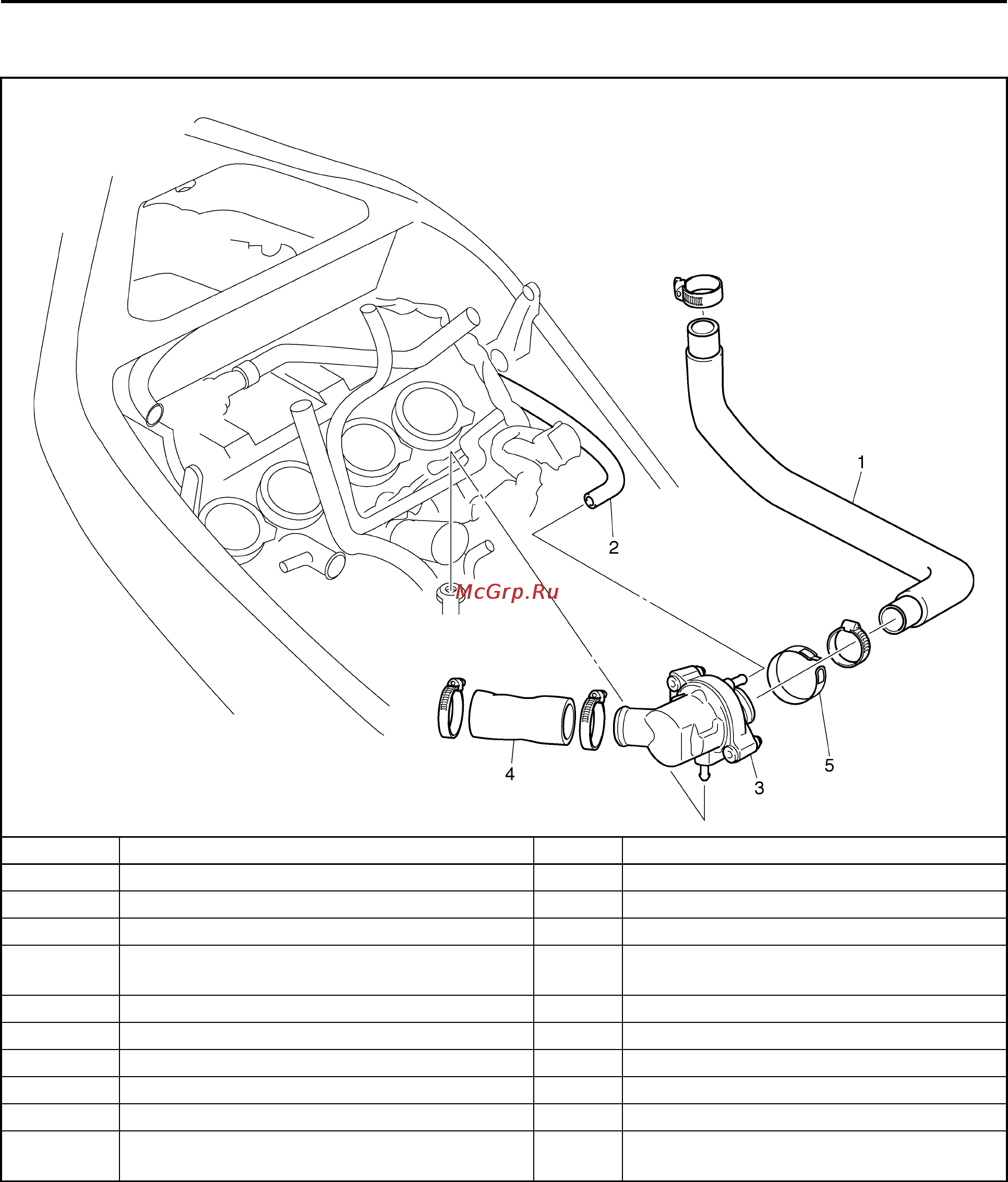

Removing the thermostat assembly
Order Job/Parts to remove Q’ty Remarks
Rider seat Refer to "GENERAL CHASSIS" on page 4-1.
Fuel tank Refer to "FUEL TANK" on page 7-1.
Air filter case Refer to "GENERAL CHASSIS" on page 4-1.
Coolant
Refer to "CHANGING THE COOLANT" on
page 3-19.
1 Thermostat assembly outlet hose 1
2 Thermostat assembly breather hose 1
3 Thermostat assembly 1
4 Thermostat assembly inlet hose 1
5Band 1
For installation, reverse the removal proce-
dure.
