REAR WHEEL
4-13
EAS22020
REAR WHEEL

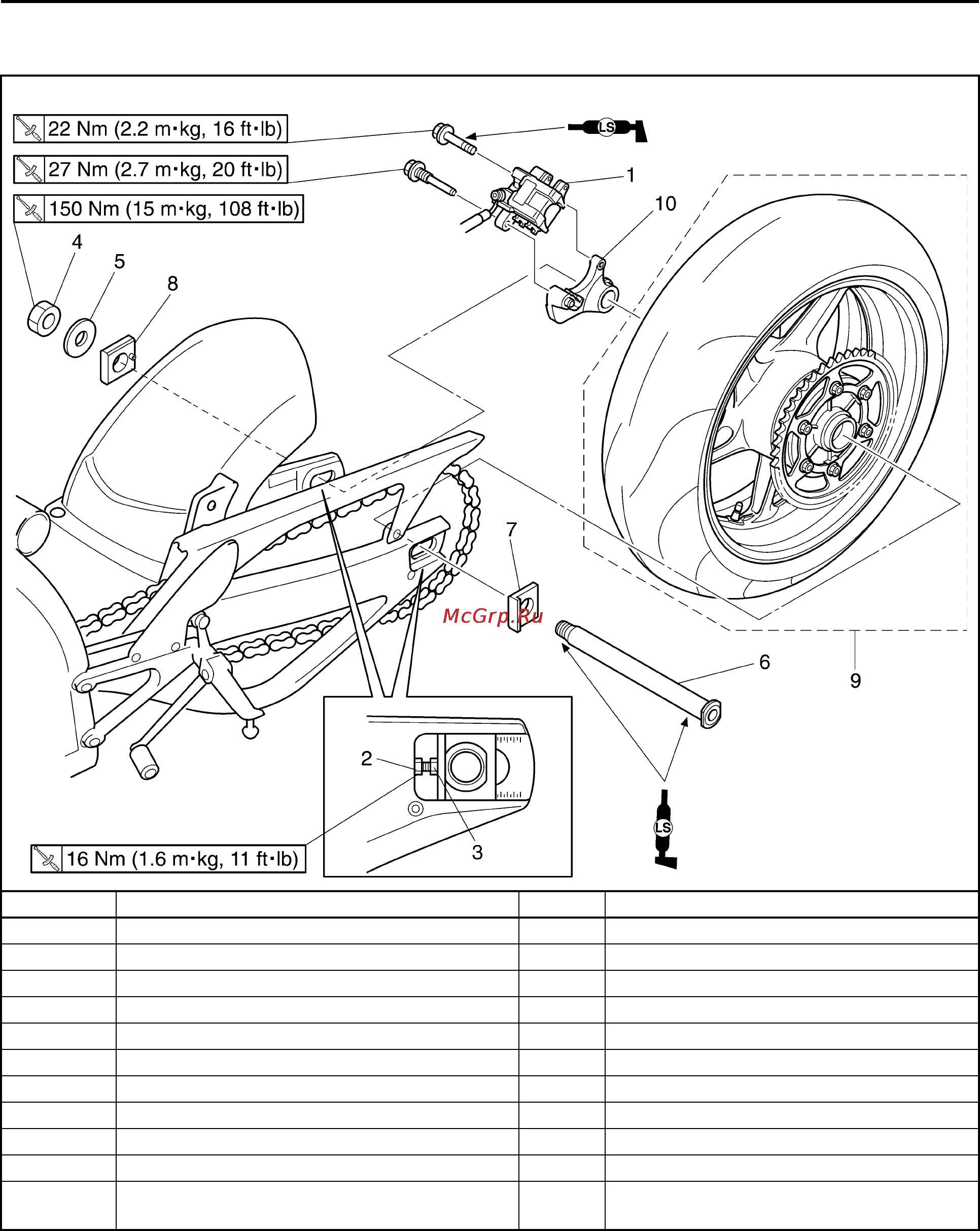

Removing the rear wheel
Order Job/Parts to remove Q’ty Remarks
1 Rear brake caliper 1
2 Locknut (left and right) 2 Loosen.
3 Adjusting bolt (left and right) 2 Loosen.
4 Rear wheel axle nut 1
5 Washer 1
6 Rear wheel axle 1
7 Left adjusting block 1
8 Right adjusting block 1
9 Rear wheel 1
10 Rear brake caliper bracket 1
For installation, reverse the removal proce-
dure.
