ELECTRIC STARTER

5-42

7. Check:

• Gear teeth

Damage/wear → Replace the starter

motor.

EAS24800

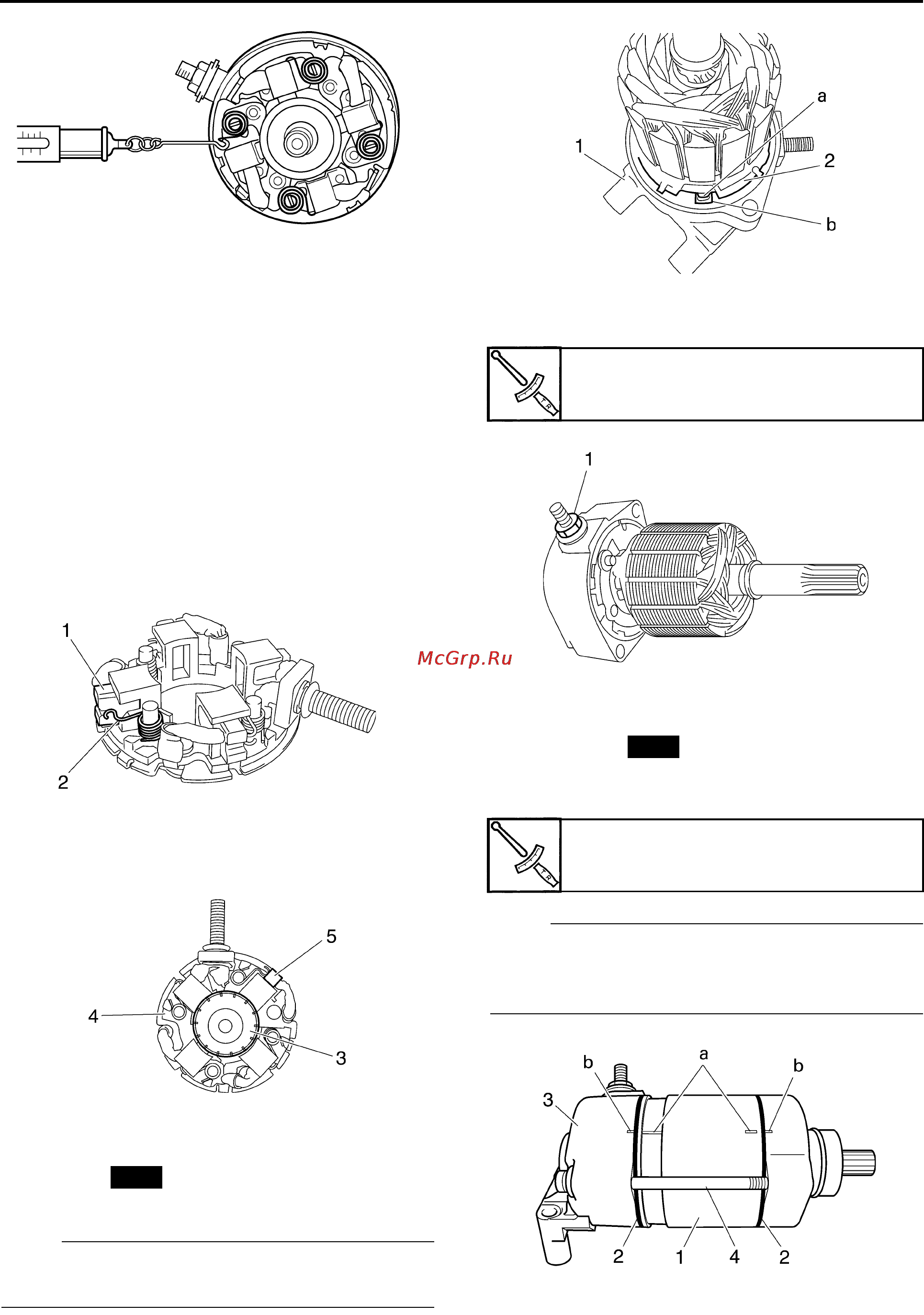

ASSEMBLING THE STARTER MOTOR

1. Install:

• Brush holder

• Armature

▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼

a. Pull both the brush spring and the brush

outside and hook the brush spring to the

groove portion at the side of the brush.

b. Insert the armature into the brush holder

and push the brush inside until it touches

the armature.

▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

2. Install:

• O-rings

• Rear cover “1”

NOTE:

Align the tab “a” on the brush holder “2” with

the tab “b” in the starter motor rear cover.

3. Install:

•Nut “1”

4. Install:

• Starter motor yoke “1”

• Gasket “2”

• Starter motor rear cover “3”

• Starter motor assembling bolts “4”

NOTE:

Align the match marks “a” on the starter motor

yoke with the match marks “b” on the front and

starter motor rear covers.

New

Nut

5 Nm (0.5 m·kg, 3.6 ft·lb)

Starter motor assembling bolt

5 Nm (0.5 m·kg, 3.6 ft·lb)

New
