CRANKSHAFT
5-70

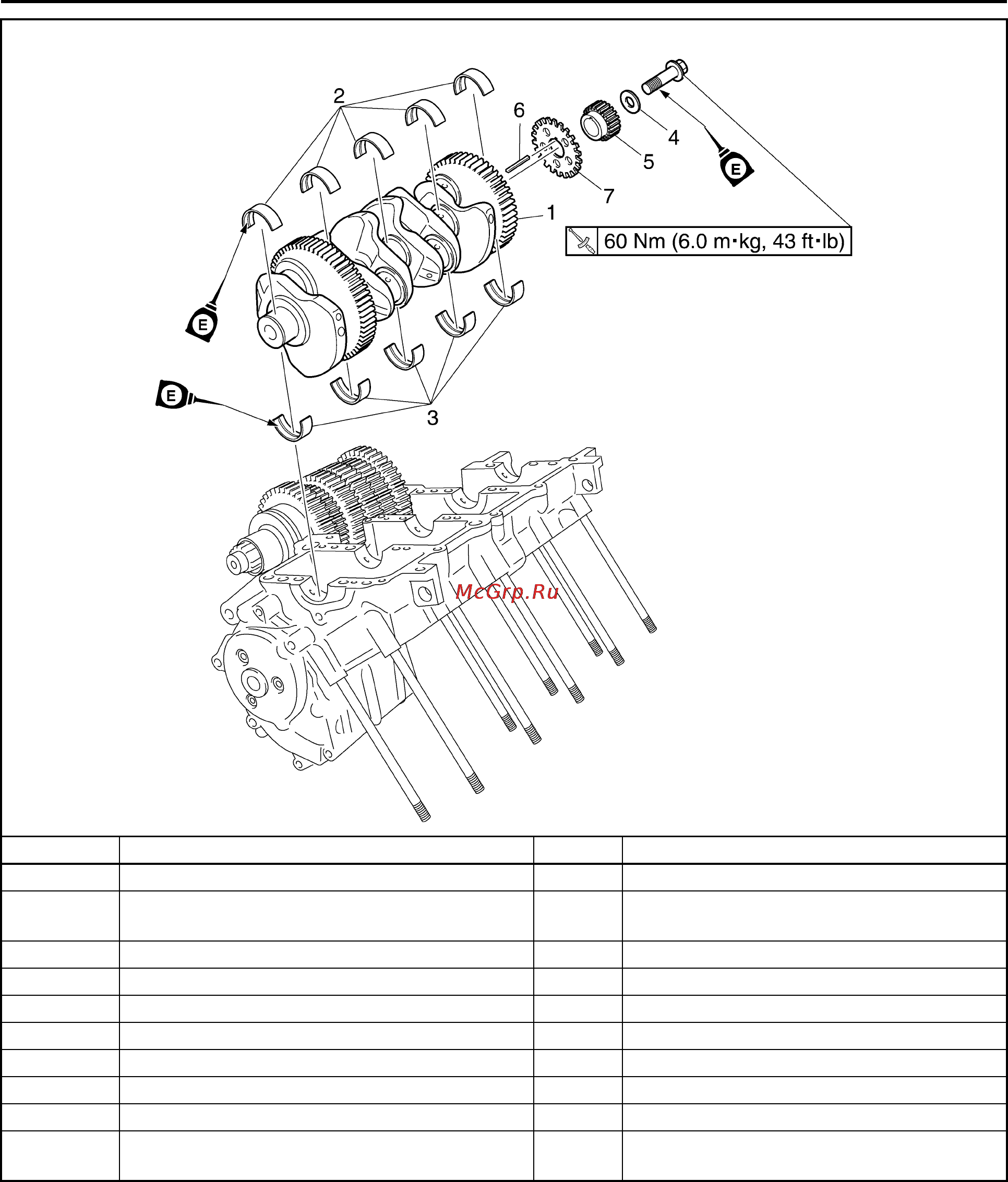

Removing the crankshaft
Order Job/Parts to remove Q’ty Remarks
Lower crankcase Refer to "CRANKCASE" on page 5-65.
Connecting rod and connecting rod caps
Refer to "REMOVING THE CONNECTING
RODS AND PISTONS" on page 5-71.
1Crankshaft 1
2 Crankshaft journal lower bearing 5
3 Crankshaft journal upper bearing 5
4 Washer 1
5 Crankshaft drive gear 1
6Pin 1
7Pickup rotor 1
For installation, reverse the removal proce-
dure.
