GENERAL CHASSIS
4-2

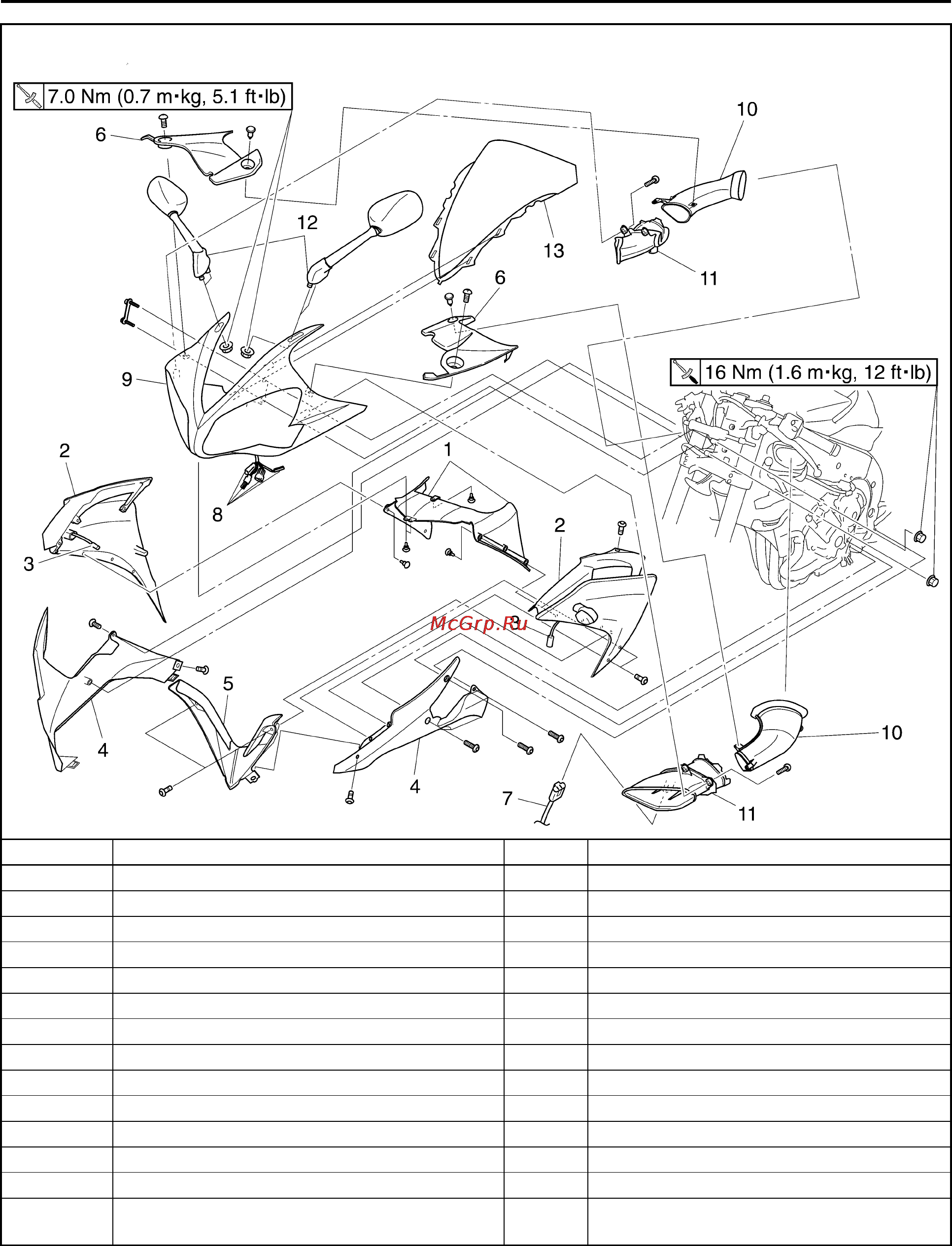

Removing the front cowling and side cowlings
Order Job/Parts to remove Q’ty Remarks
1 Side cowling inner panel 2
2 Side cowling 2
3 Front turn signal light lead coupler 2 Disconnect.
4 Lower cowling 2
5 Lower cowling front cover 1
6 Intake air duct panel 2
7 Intake air temperature coupler 1 Disconnect.
8 Meter assembly coupler 1 Disconnect.
9 Front cowling 1
10 Rear intake air duct 2
11 Front intake air duct 2
12 Rear view mirror 2
13 Windshield 1
For installation, reverse the removal proce-
dure.
