STARTER CLUTCH
5-34
EAS24550
STARTER CLUTCH

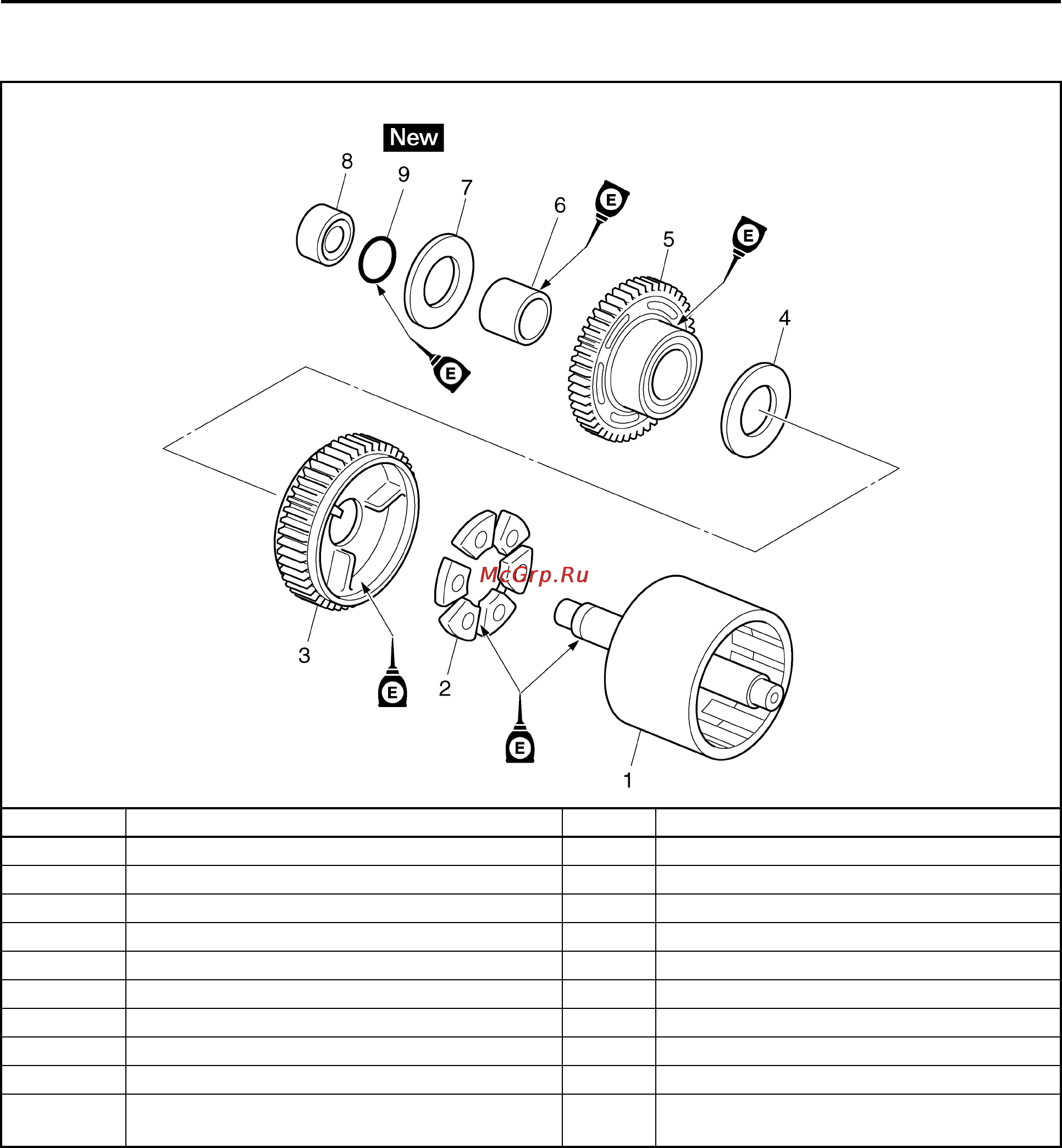

Removing the starter clutch
Order Job/Parts to remove Q’ty Remarks
1 Generator rotor 1
2 Damper 3
3 Driven gear 1
4 Washer 1
5 Starter clutch drive gear 1
6 Collar 1
7 Washer 1
8Spacer 1
9O-ring 1
For assembly, reverse the removal proce-
dure.
