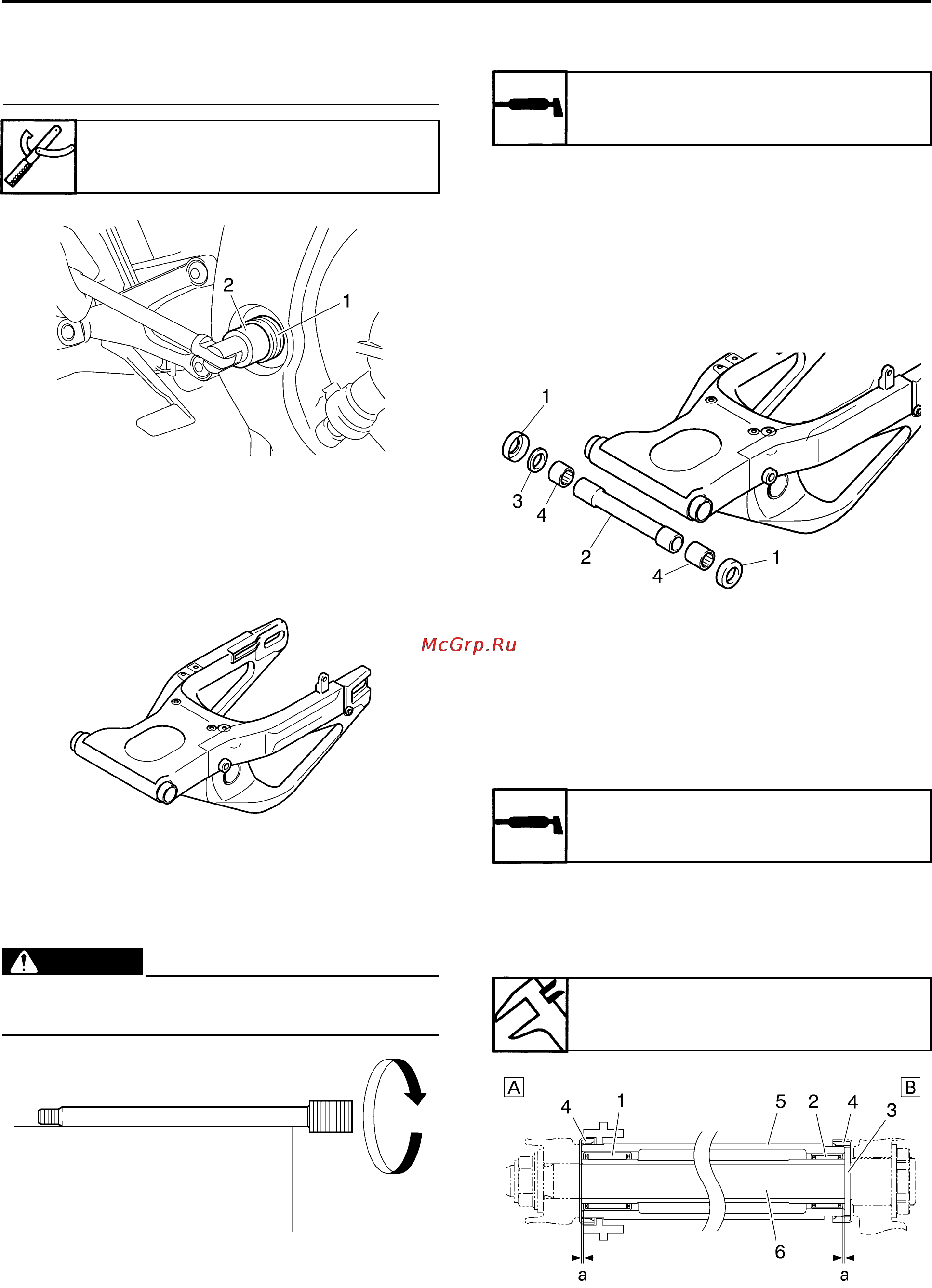

SWINGARM
4-68
NOTE:
Loosen the swingarm pivot shaft with the
damper rod holder (22 mm) “2”.
EAS23360
CHECKING THE SWINGARM
1. Check:
• Swingarm
Bends/cracks/damage → Replace.
2. Check:
• Pivot shaft
Roll the pivot shaft on a flat surface.
Bends → Replace.
WARNING
EWA13770
Do not attempt to straighten a bent pivot
shaft.
3. Wash:
• Pivot shaft
•Dust covers
•Spacer
•Washers
• Bearings
4. Check:
• Dust covers “1”
• Spacer “2”
• Washer “3”
Damage/wear → Replace.
• Bearings “4”
Damage/pitting → Replace.
EAS23380
INSTALLING THE SWINGARM
1. Lubricate:
• Bearings
•Spacers
•Dust covers
• Pivot shaft
2. Install:
• Bearing “1”
• Bearing “2”
• Washer “3”
Damper rod holder (22 mm)
90890-01365
Recommended cleaning solvent
Kerosene
Recommended lubricant
Molybdenum disulfide grease
Installed depth of bearing “a”
0–1.0 mm (0–0.04 in)
4. Dust cover
