Yamaha YZF-R1 (2006) [122/426] Chassis
![Yamaha YZF-R1 (2006) [122/426] Chassis](/views2/1121350/page122/bg7a.png)

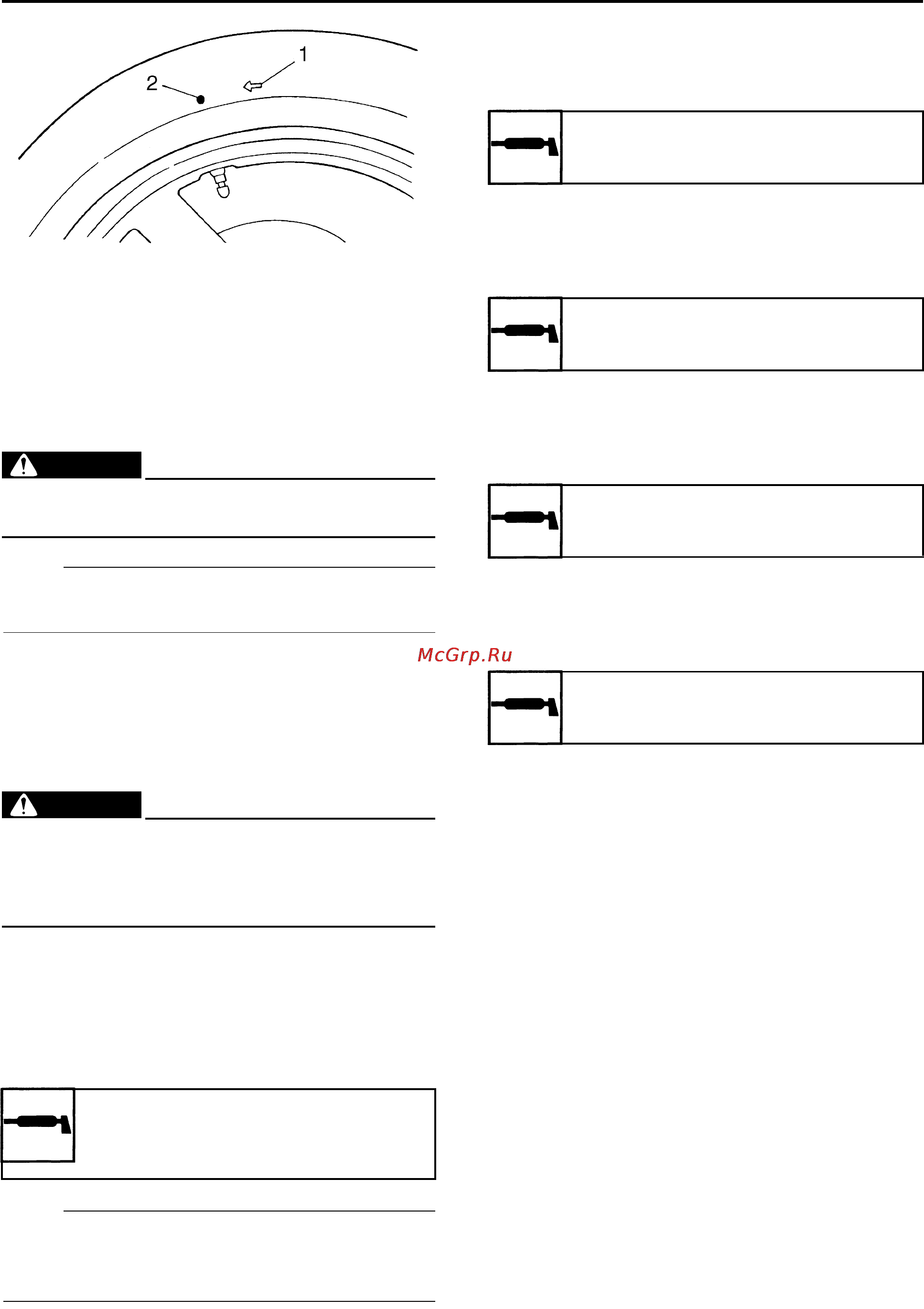

CHASSIS
3-35
EAS21670
CHECKING THE WHEELS
The following procedure applies to both of the
wheels.
1. Check:
• Wheel
Damage/out-of-round → Replace.
WARNING
EWA13260
Never attempt to make any repairs to the
wheel.
NOTE:
After a tire or wheel has been changed or
replaced, always balance the wheel.
EAS21690
CHECKING AND LUBRICATING THE
CABLES
The following procedure applies to all of the
inner and outer cables.
WARNING
EWA13270
Damaged outer cable may cause the cable
to corrode and interfere with its movement.
Replace damaged outer cable and inner
cables as soon as possible.
1. Check:
• Outer cable
Damage → Replace.
2. Check:
• Cable operation
Rough movement → Lubricate.
NOTE:
Hold the cable end upright and pour a few
drops of lubricant into the cable sheath or use
a suitable lubricating device.
EAS21700
LUBRICATING THE LEVERS
Lubricate the pivoting point and metal-to-metal
moving parts of the levers.
EAS21710
LUBRICATING THE PEDAL
Lubricate the pivoting point and metal-to-metal
moving parts of the pedal.
EAS21720
LUBRICATING THE SIDESTAND
Lubricate the pivoting point and metal-to-metal
moving parts of the sidestand.
EAS21740
LUBRICATING THE REAR SUSPENSION
Lubricate the pivoting point and metal-to-metal
moving parts of the rear suspension.
Recommended lubricant
Engine oil or a suitable cable
lubricant
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Lithium-soap-based grease
Recommended lubricant
Molybdenum disulfide grease
