CLUTCH
5-44
EAS25060
CLUTCH

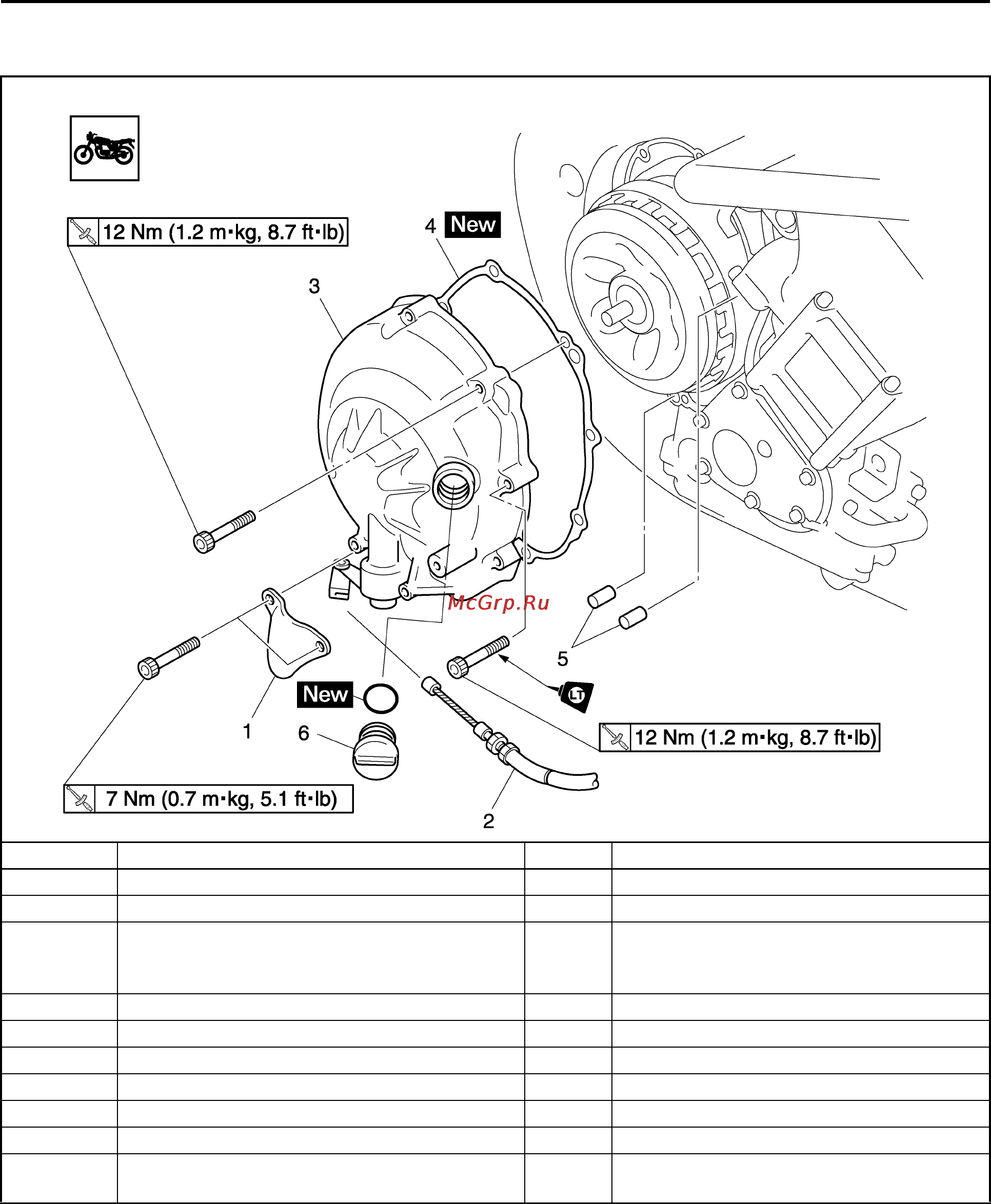

Removing the clutch cover
Order Job/Parts to remove Q’ty Remarks
Right side cowling Refer to "GENERAL CHASSIS" on page 4-1.
Bottom cowlings Refer to "GENERAL CHASSIS" on page 4-1.
Engine oil
Drain.
Refer to "CHANGING THE ENGINE OIL" on
page 3-11.
1Cover 1
2 Clutch cable 1 Disconnect.
3Clutch cover 1
4 Clutch cover gasket 1
5Dowel pin 2
6 Oil filler cap 1
For installation, reverse the removal proce-
dure.
