STARTER CLUTCH

5-36

otherwise the starter clutch is faulty and

must be replaced.

c. When turning the starter clutch drive gear

counterclockwise “B”, it should turn freely,

otherwise the starter clutch is faulty and

must be replaced.

▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲

EAS24600

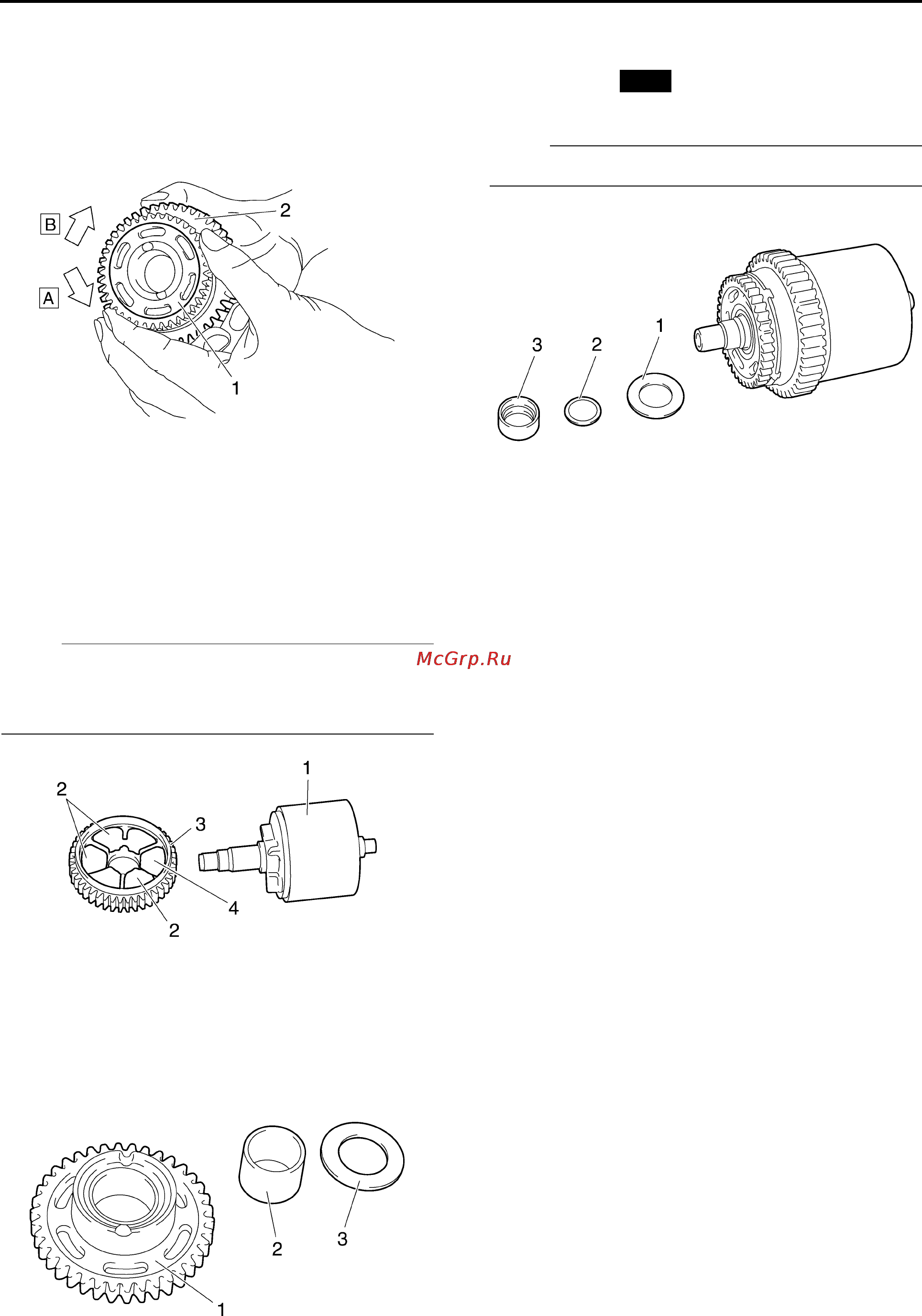

INSTALLING THE STARTER CLUTCH

1. Install:

• Generator rotor “1”

• Damper “2”

• Driven gear “3”

NOTE:

• The hole side of the damper is installed to

the generator side.

• Lubricate the engine oil “4”.

2. Install

• Starter clutch drive gear “1”

• Collar “2”

• Washer “3”

Refer to "CHECKING THE STARTER

CLUTCH" on page 5-35.

3. Install:

• Washer “1”

• O-ring “2”

• Spacer “3”

NOTE:

Lubricate the engine oil to O-ring.

New
